Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 5 bolts to the battery tray.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the battery.

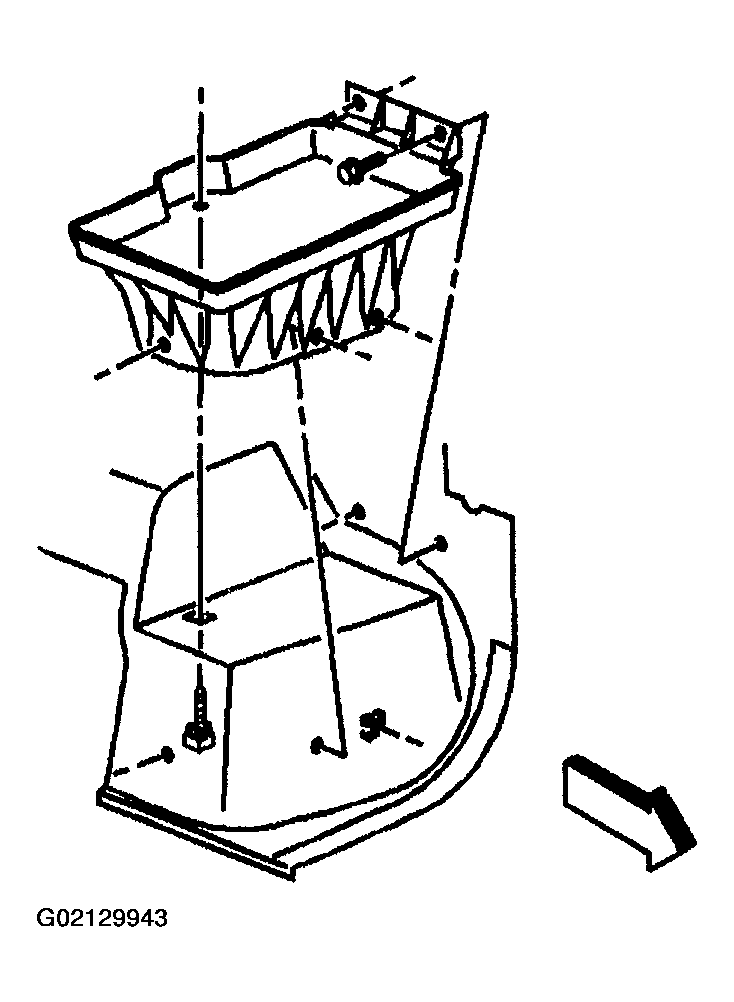

    Fig 1: Installing Battery Tray
    G02129943Courtesy of GENERAL MOTORS CORP.
