Installation Procedure

  1. Install the battery.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery hold down retainer (1), nut (3), and washer.

    Tighten

    Tighten the nut to 15 N.m (11 lb ft).

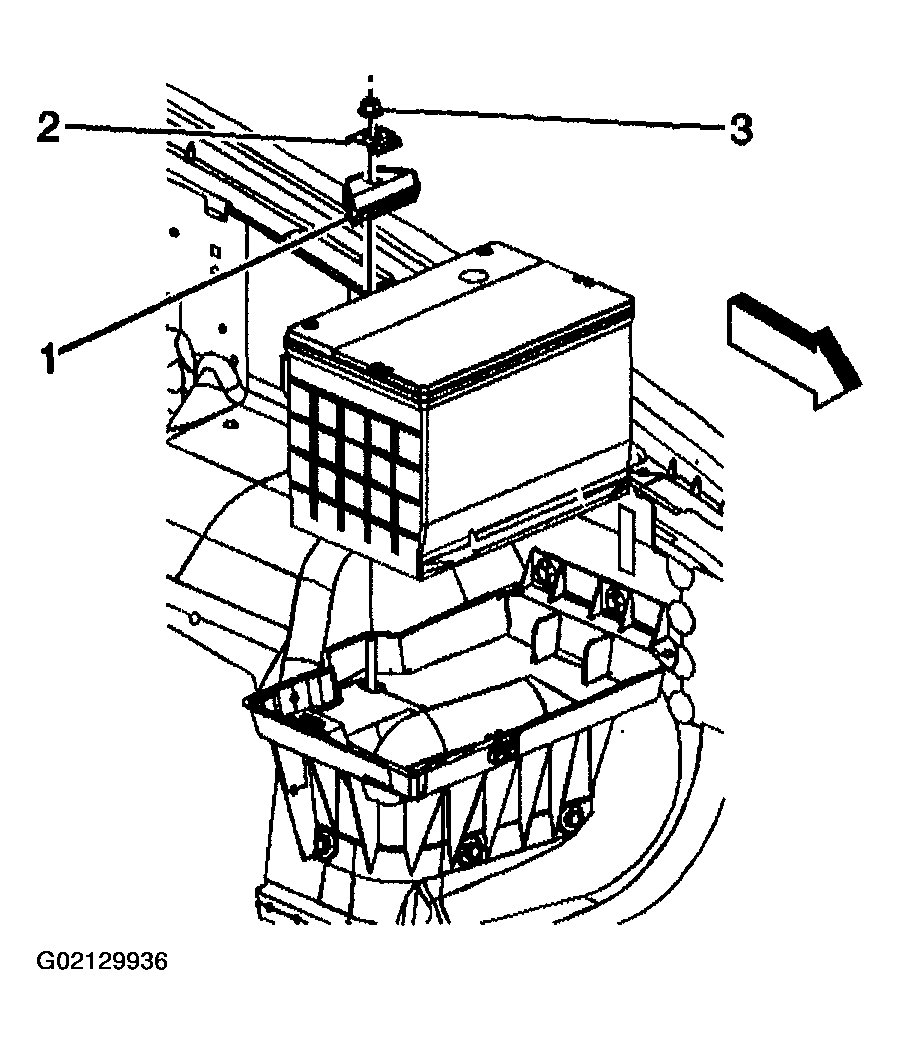

    Fig 1: Installing Battery
    G02129936Courtesy of GENERAL MOTORS CORP.
  3. Install the battery cover.

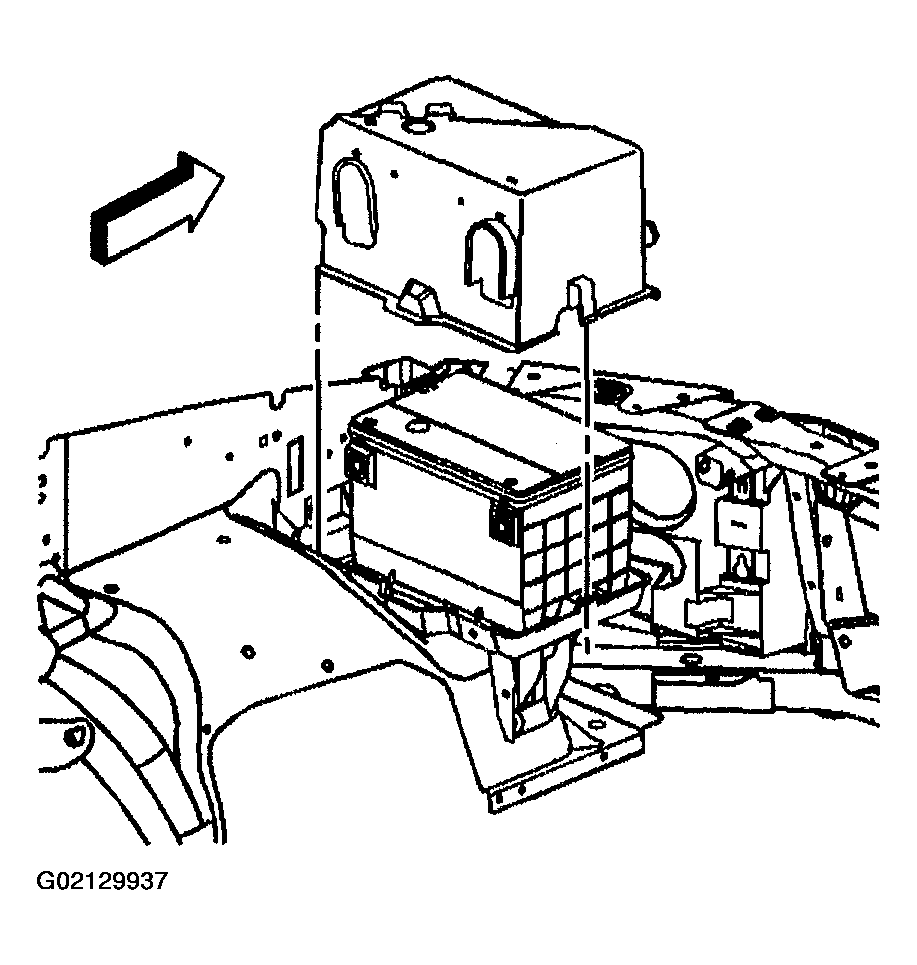

    Fig 2: Installing Battery Cover
    G02129937Courtesy of GENERAL MOTORS CORP.
  4. Install the battery tray brace bolts/nut.

    Tighten

    Tighten the bolts/nut to 10 N.m (89 lb in).

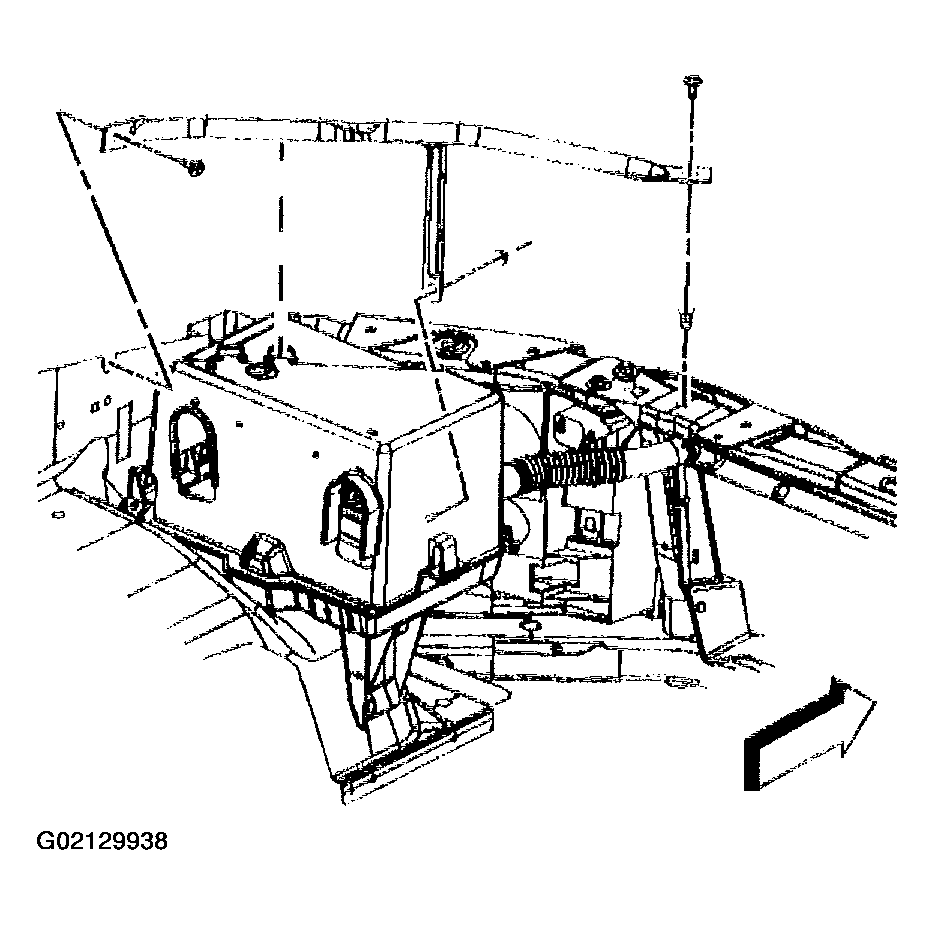

    Fig 3: Installing Battery Tray Brace Bolts/Nut
    G02129938Courtesy of GENERAL MOTORS CORP.
  5. Install the battery air duct to the battery cover.

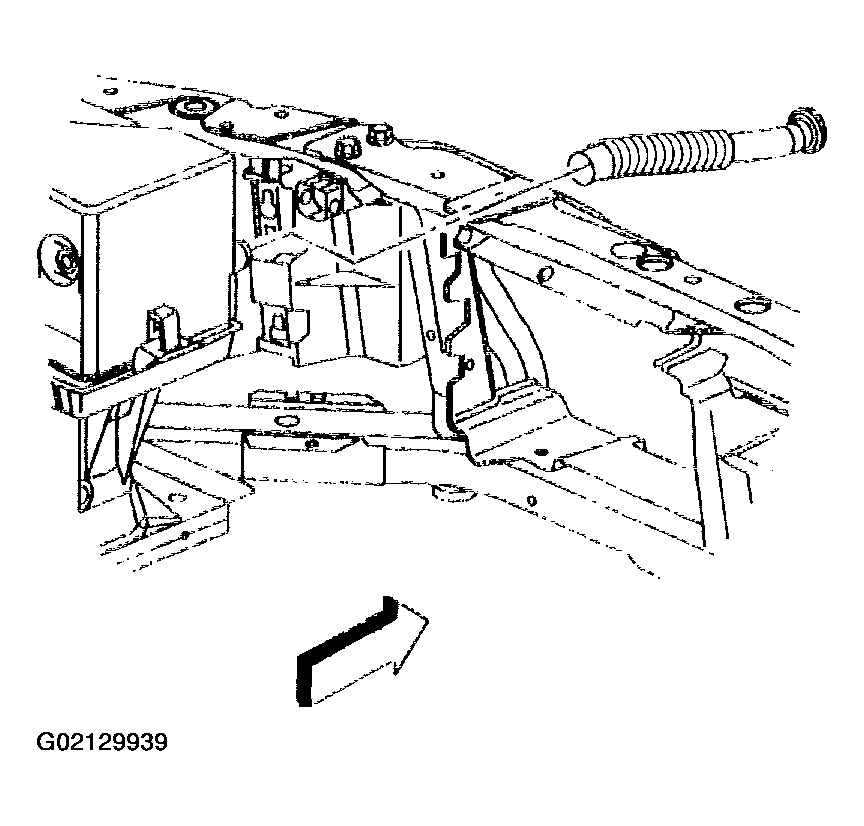

    Fig 4: Installing Battery Air Duct To Battery Cover
    G02129939Courtesy of GENERAL MOTORS CORP.
  6. Install the coolant heater cord retainers (1) to the battery cover, if equipped.

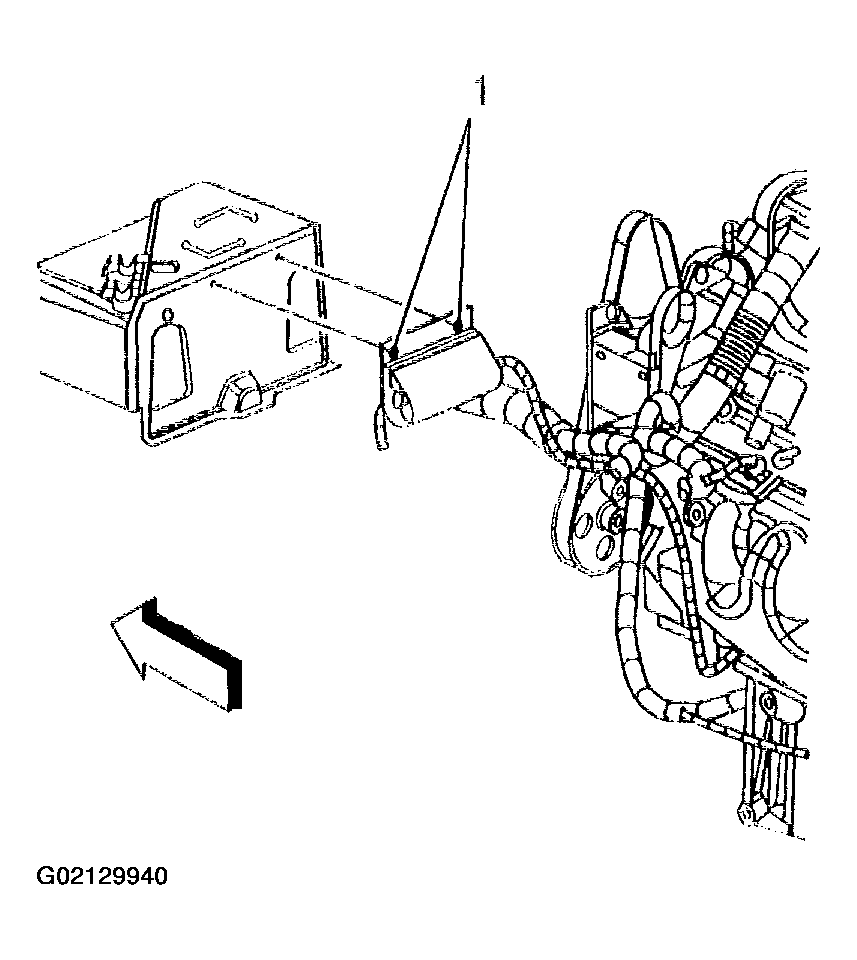

    Fig 5: Installing Coolant Heater Cord Retainers To Battery Cover
    G02129940Courtesy of GENERAL MOTORS CORP.
  7. Position the positive battery cable to the battery.
  8. Tighten the positive battery cable bolt.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

  9. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE   .

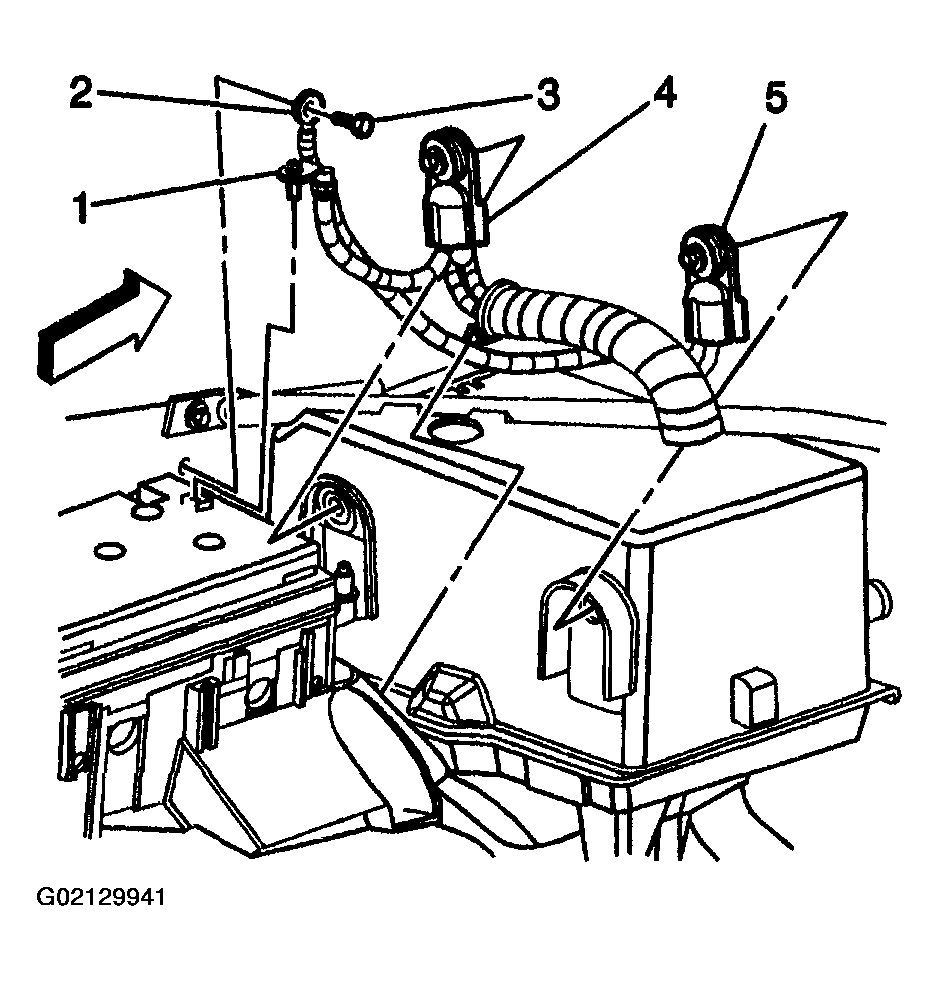

    Fig 6: Positioning Positive Battery Cable To Battery
    G02129941Courtesy of GENERAL MOTORS CORP.
