Removal Procedure

  1. Use a flat-bladed tool in order to remove the wire connector (1) from the mirror (2), if equipped.
  2. Using a Torx® screwdriver, loosen the set screw that holds the mirror base to the windshield button.

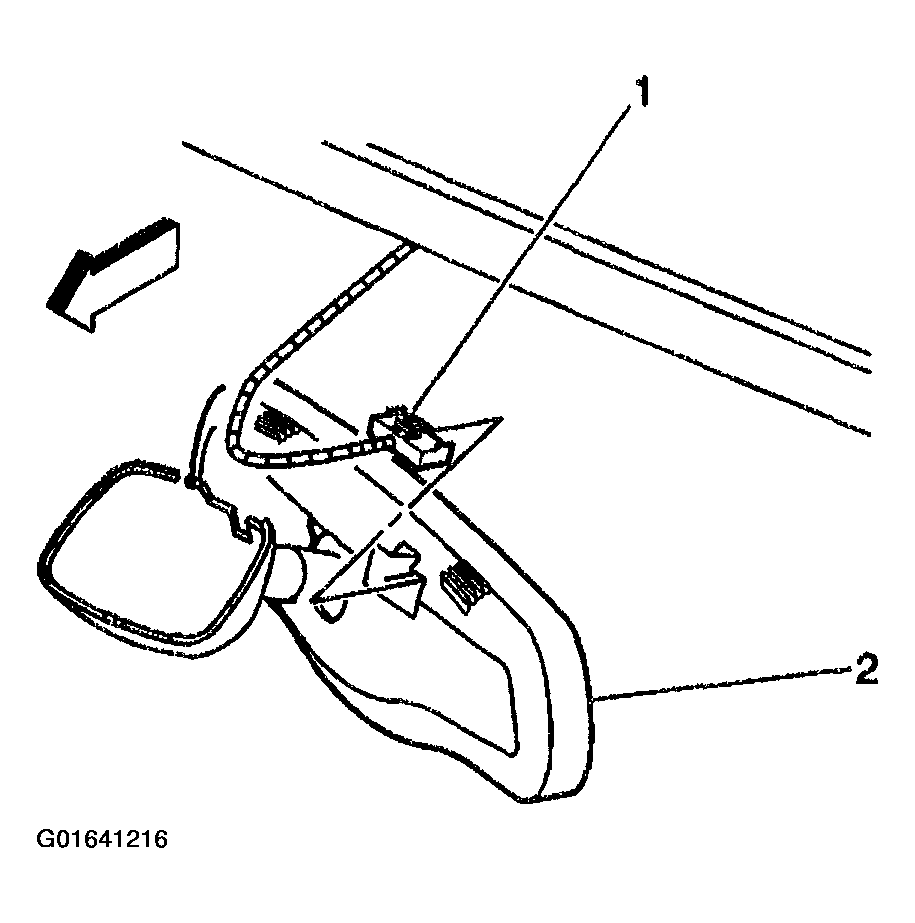

    Fig 1: Removing Wire Connector From The Mirror
    G01641216Courtesy of GENERAL MOTORS CORP.
  3. Slide the mirror off of the support.
    Fig 2: Sliding Mirror Off Of Support
    G01641217Courtesy of GENERAL MOTORS CORP.
