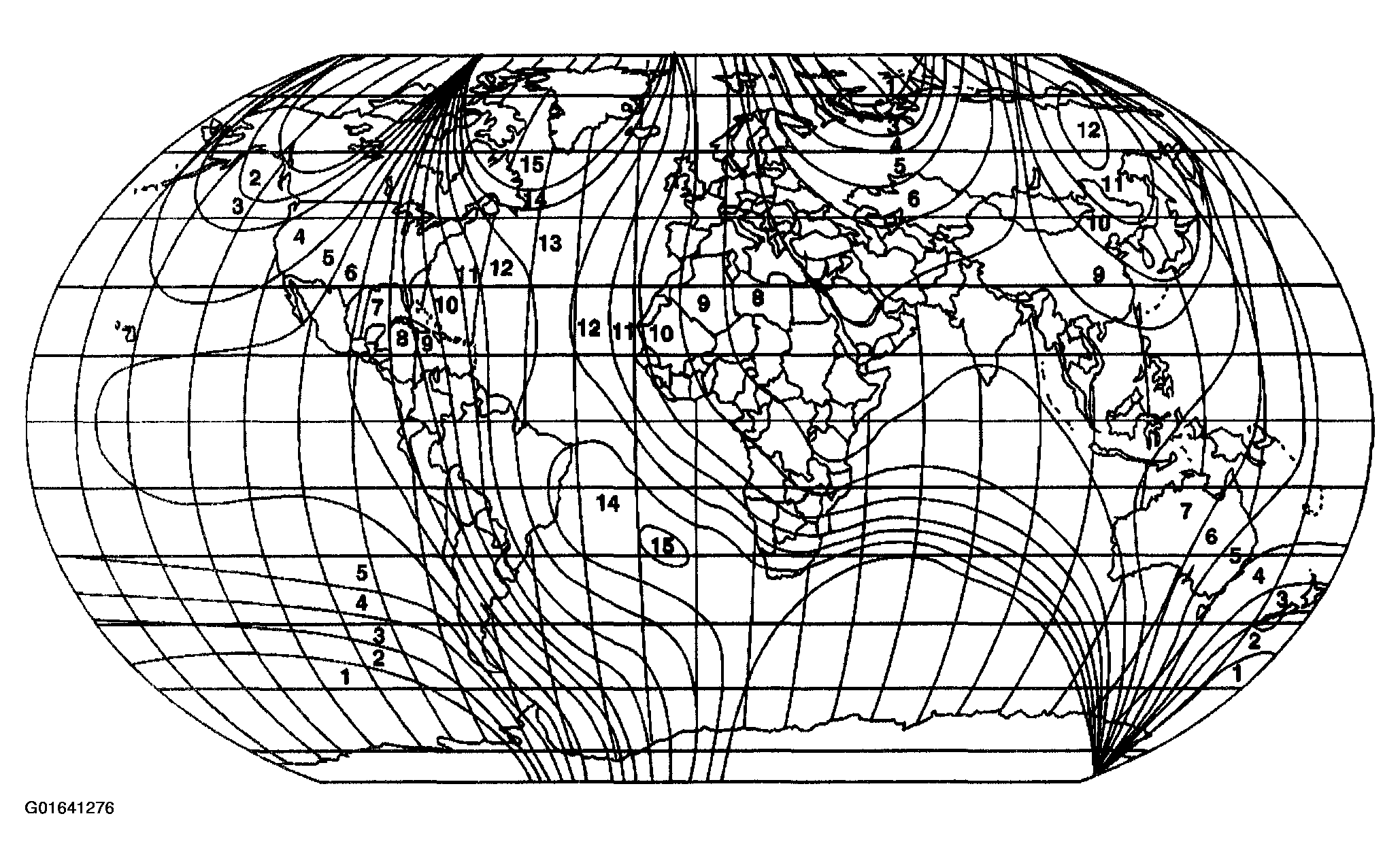

World Magnetic Variation Map
Courtesy of GENERAL MOTORS CORP.
- Locate your current geographic location on the World Magnetic Variation Map.
- Turn ON the ignition, with the engine OFF.
- Press and hold the switch for the compass, which may be depicted as COMP, COMPASS, or On/Off (w/UE1) depending on the type of mirror on the vehicle, until a zone number appears on the compass display.
- Depress the switch for the compass to select the desired zone number.
- Wait 5 seconds, the display will return to a compass heading. The variance procedure is now complete.
