GMC
>>
2003
>>
Envoy 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Transfer Case - NVG 226-NP8 (Unit Repair)
>>
Visual Identification
>>
Transfer Case Disassembled View
Transfer Case Disassembled View

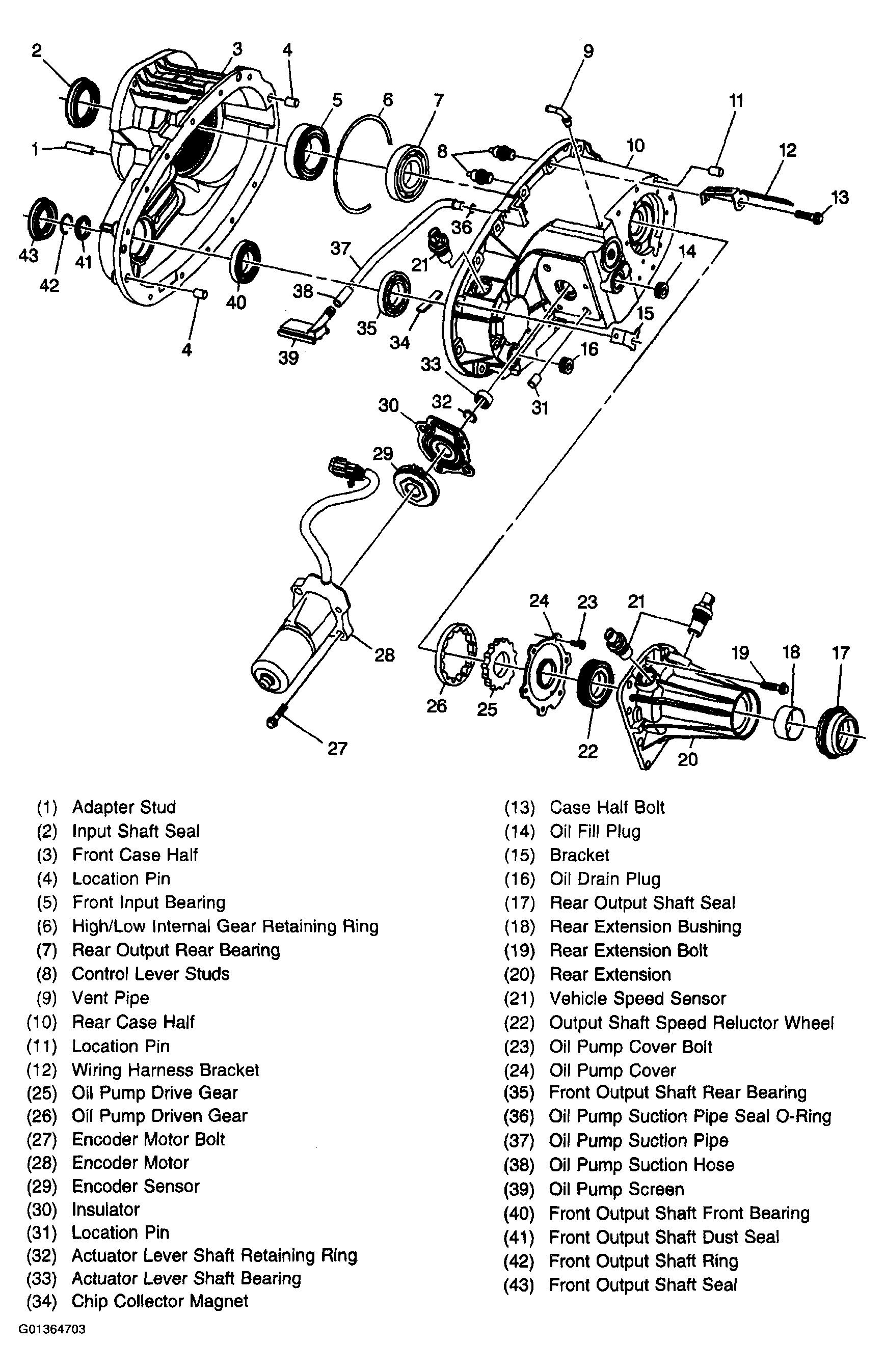

Fig 1: Case Components Disassembled View

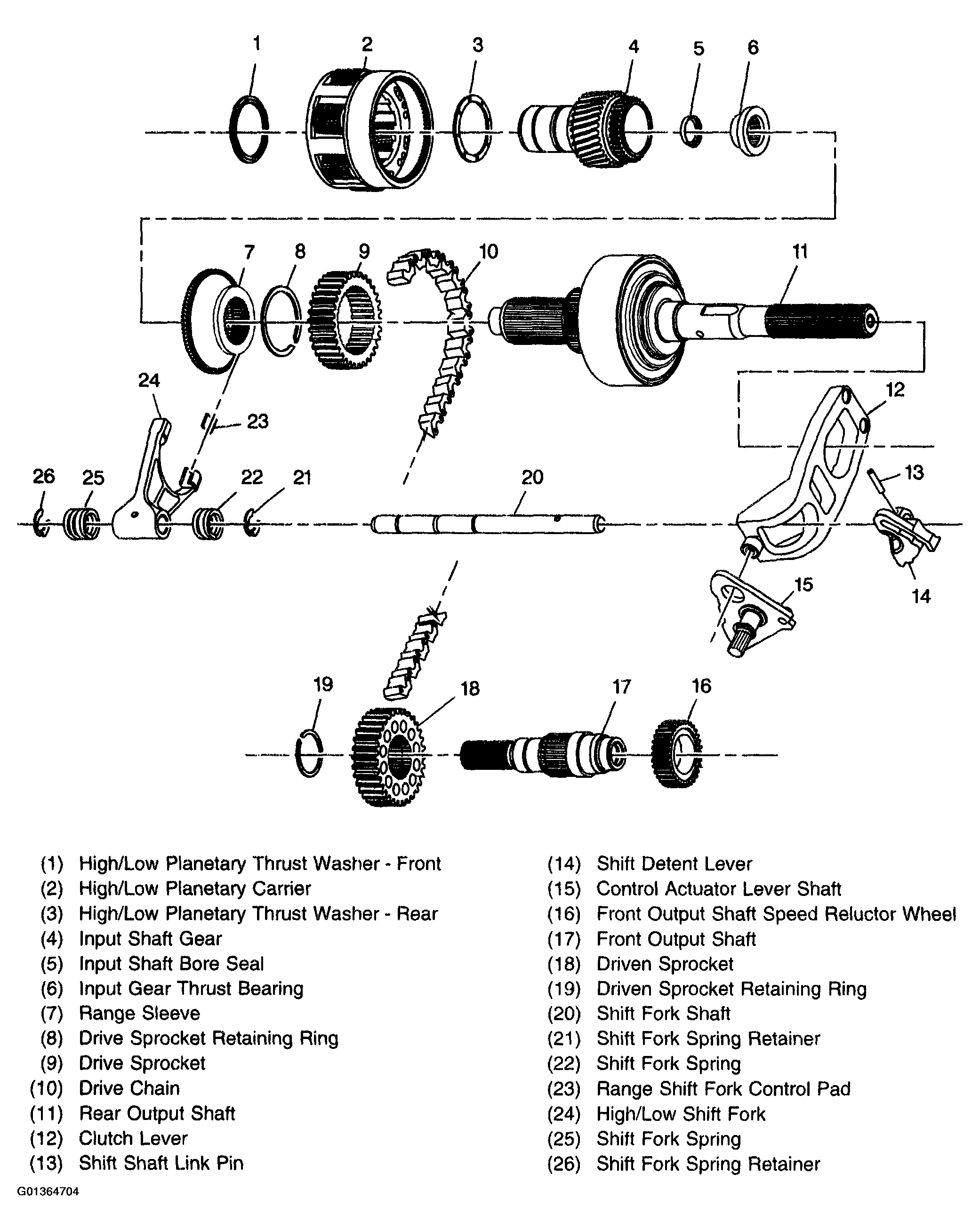

Fig 2: Internal Components Disassembled View

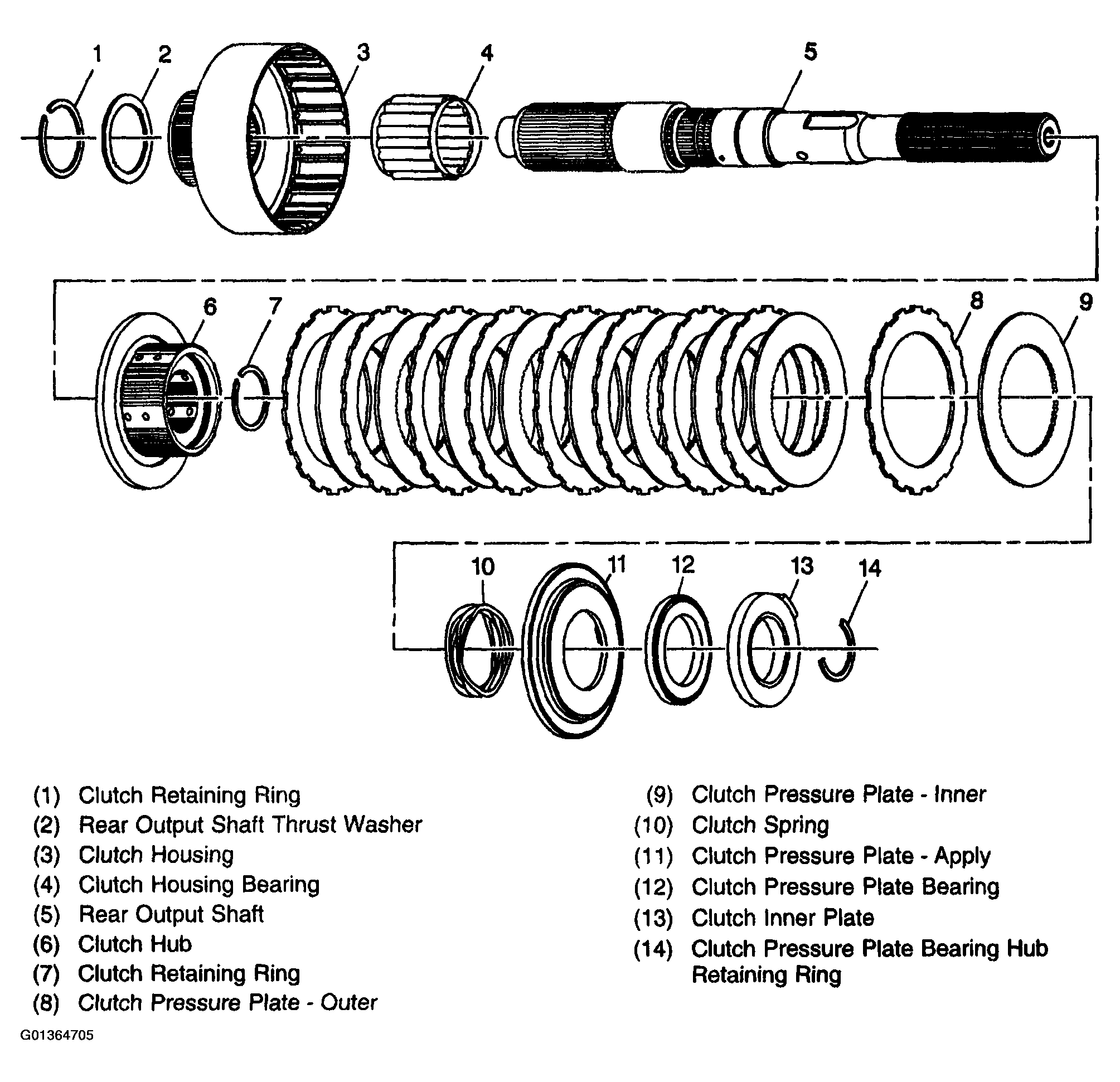

Fig 3: Rear Output Shaft Assembly Disassembled View
