Transfer Case - NVG 126-NP4 (Unit Repair)
>>
Visual Identification
>>
Transfer Case Disassembled View
Transfer Case Disassembled View

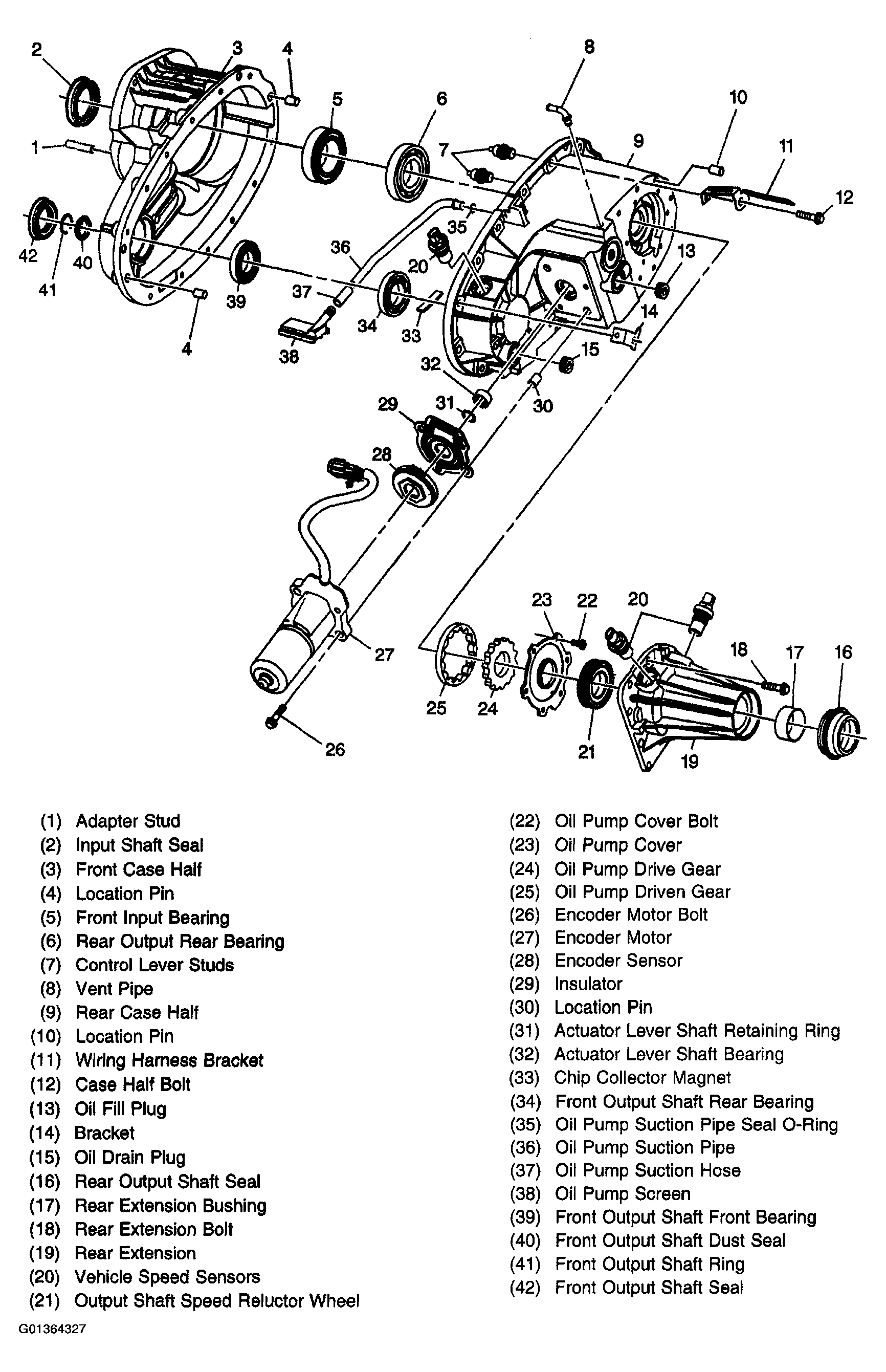

Fig 1: Case Components Disassembled View
Fig 2: Internal Components Disassembled View

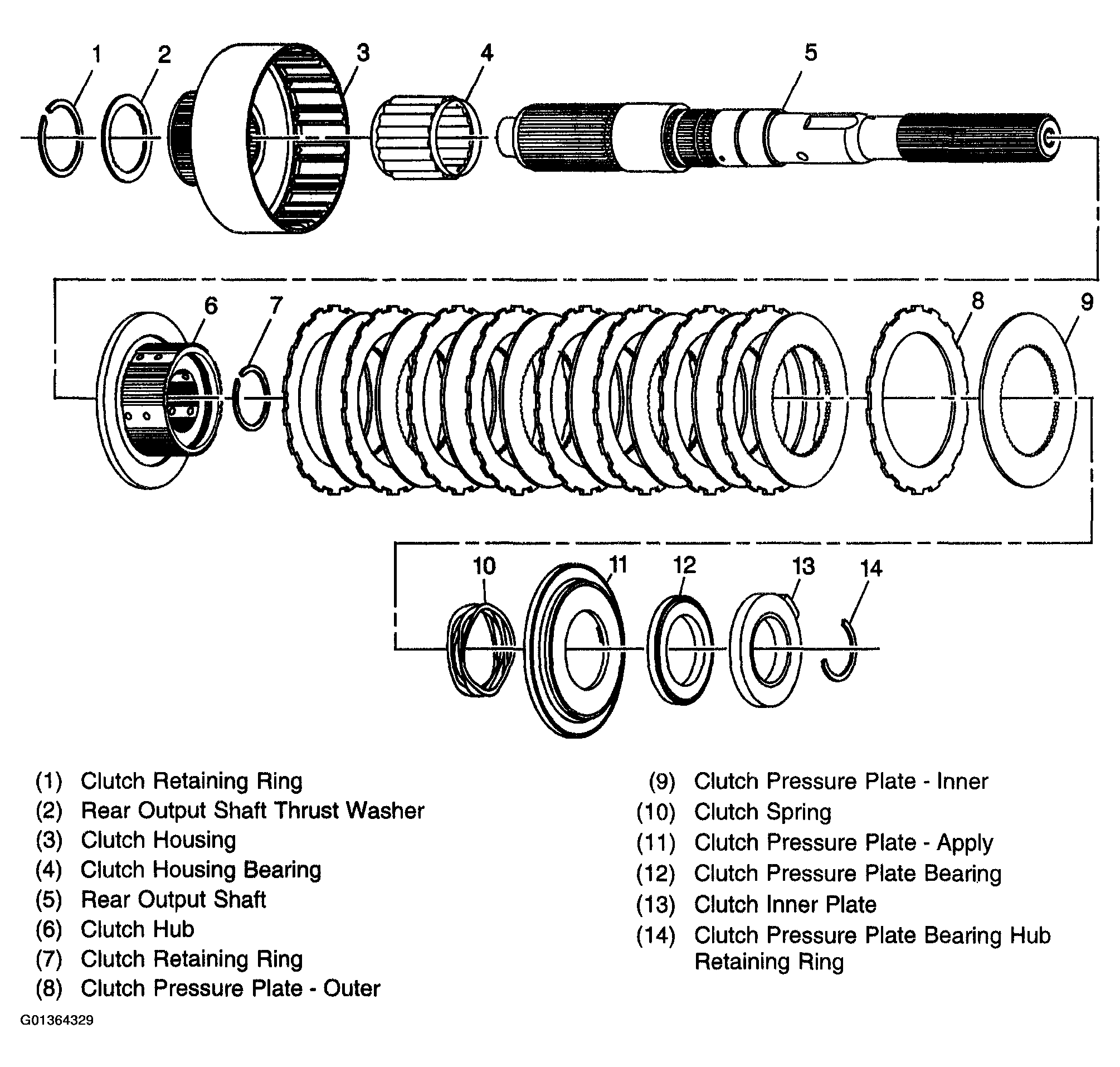

Fig 3: Rear Output Shaft Assembly Disassembled View
