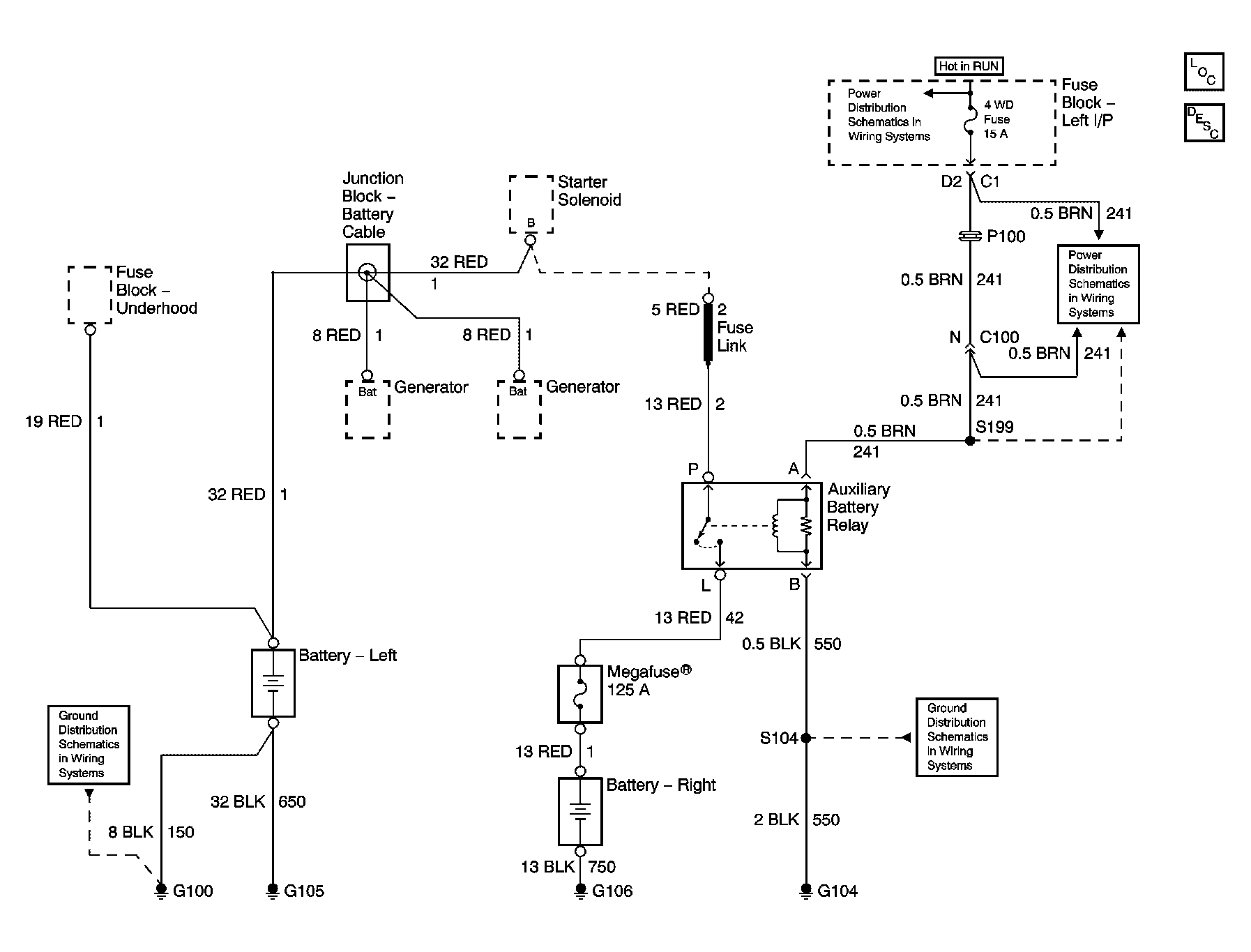

Home >> GMC >> 2002 >> Yukon Denali >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Auxiliary Battery Schematics
