Defogger Schematics

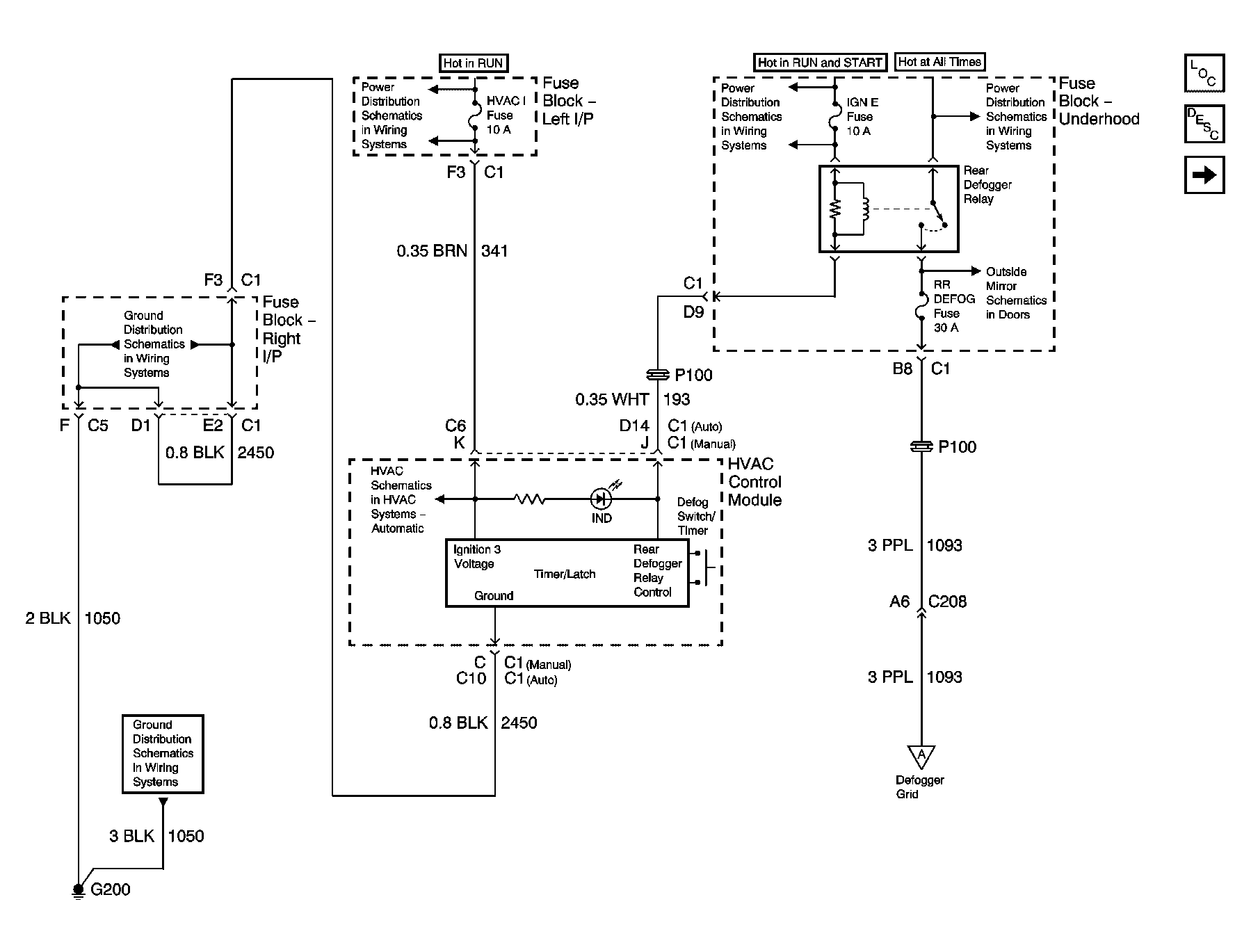

Fig 1: Rear Window Defogger Control
Courtesy of GENERAL MOTORS CORP.

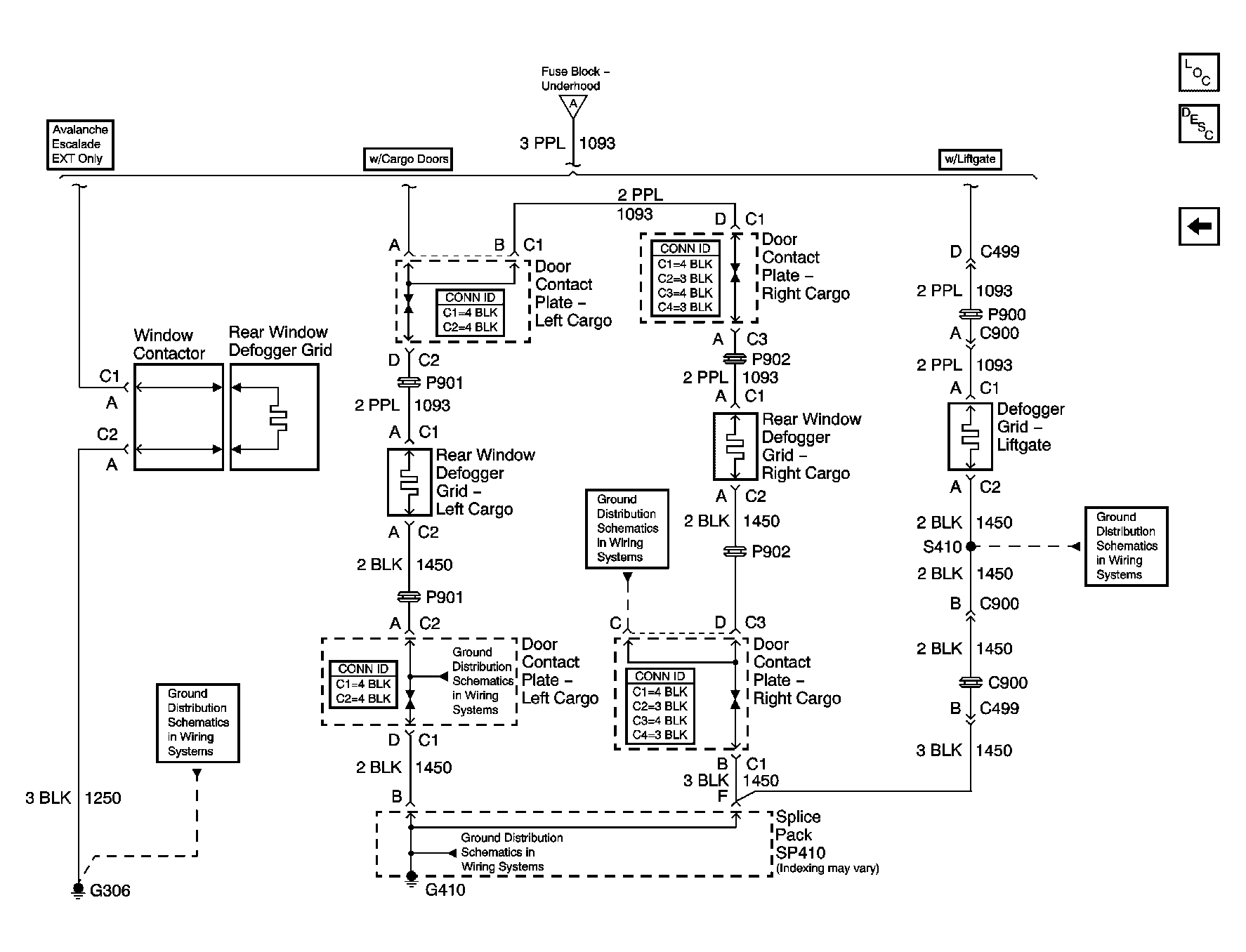

Fig 2: Defogger Grid and Ground
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
