Removal Procedure

  1. Raise the vehicle.
  2. Remove the bolts (3) retaining the steering gear protection shield to the steering gear.
  3. Remove the steering gear protection shield from the vehicle.

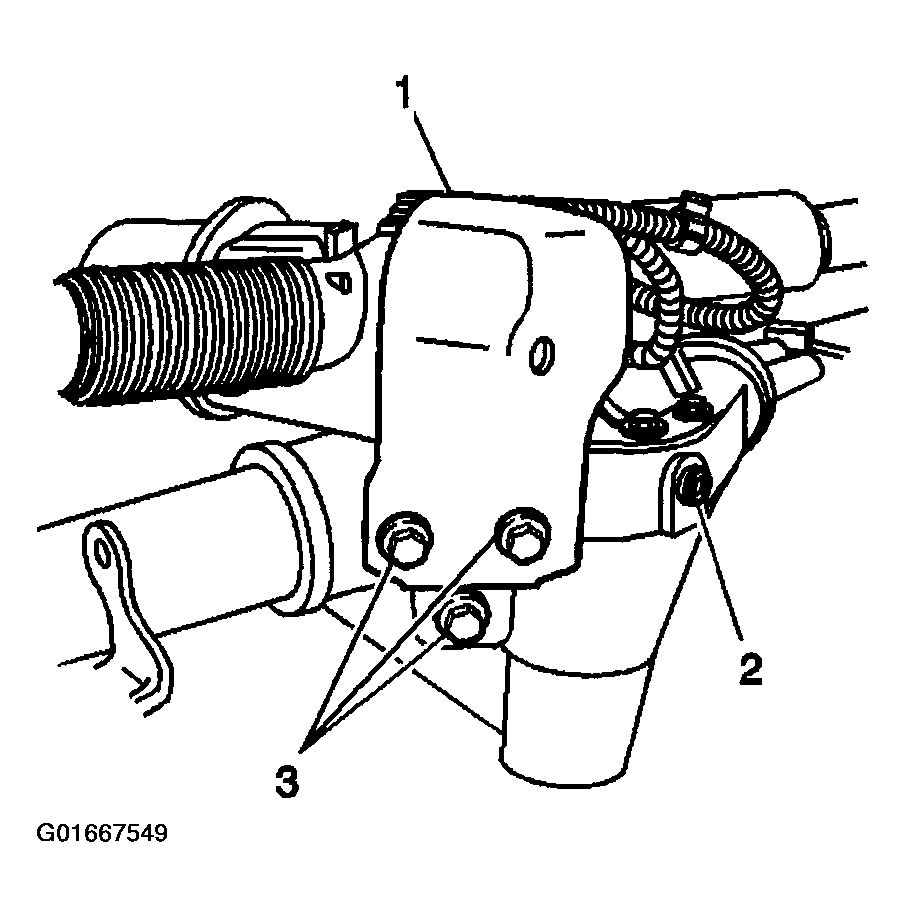

    Fig 1: Steering Gear Protection Shield
    G01667549Courtesy of GENERAL MOTORS CORP.
