Removal Procedure

  1. Raise the vehicle.
  2. Remove the spare tire from the vehicle to gain access to the control module.
  3. Disconnect the electrical connectors from the control module.
  4. Remove the bolts (1) retaining the control module (2) to the bracket.
  5. Remove the control module from the vehicle.

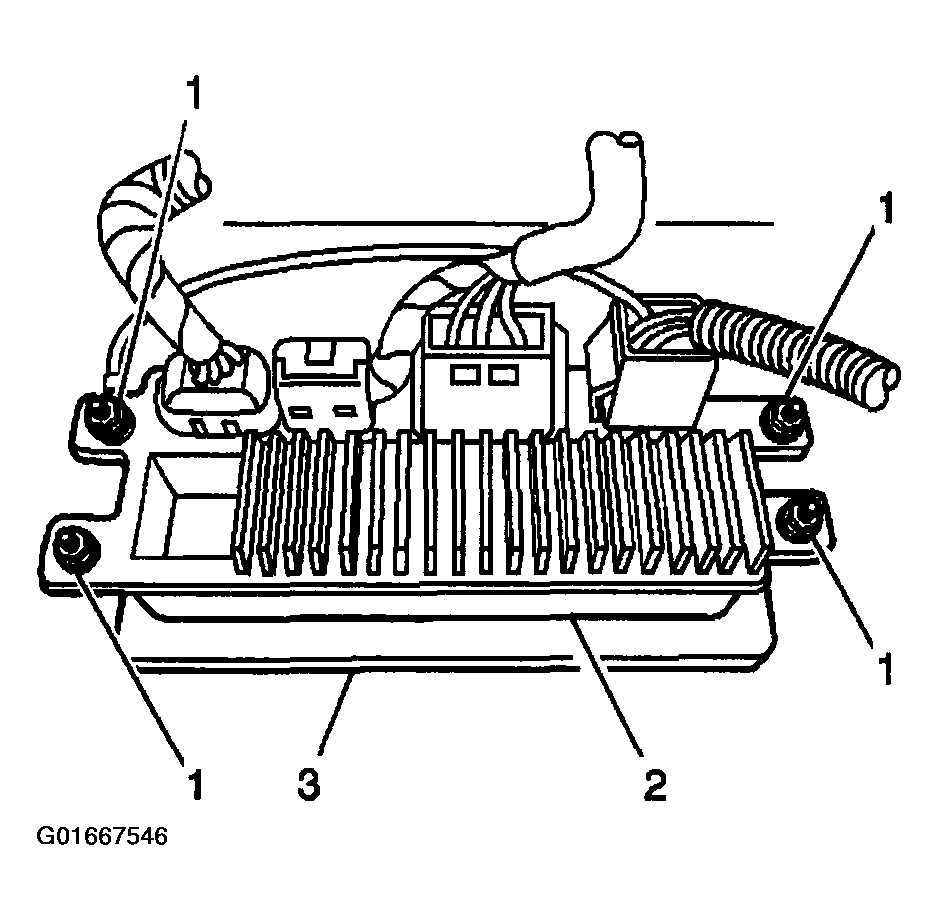

    Fig 1: Rear Wheel Steering Control Module
    G01667546Courtesy of GENERAL MOTORS CORP.
