Removal Procedure

  1. Remove the rear wheel steering control module from the bracket. Refer to Rear Wheel Steering Control Module Replacement .
  2. Remove the bolts retaining the bracket (2) to the frame.
  3. Remove the bracket (2) from the vehicle.

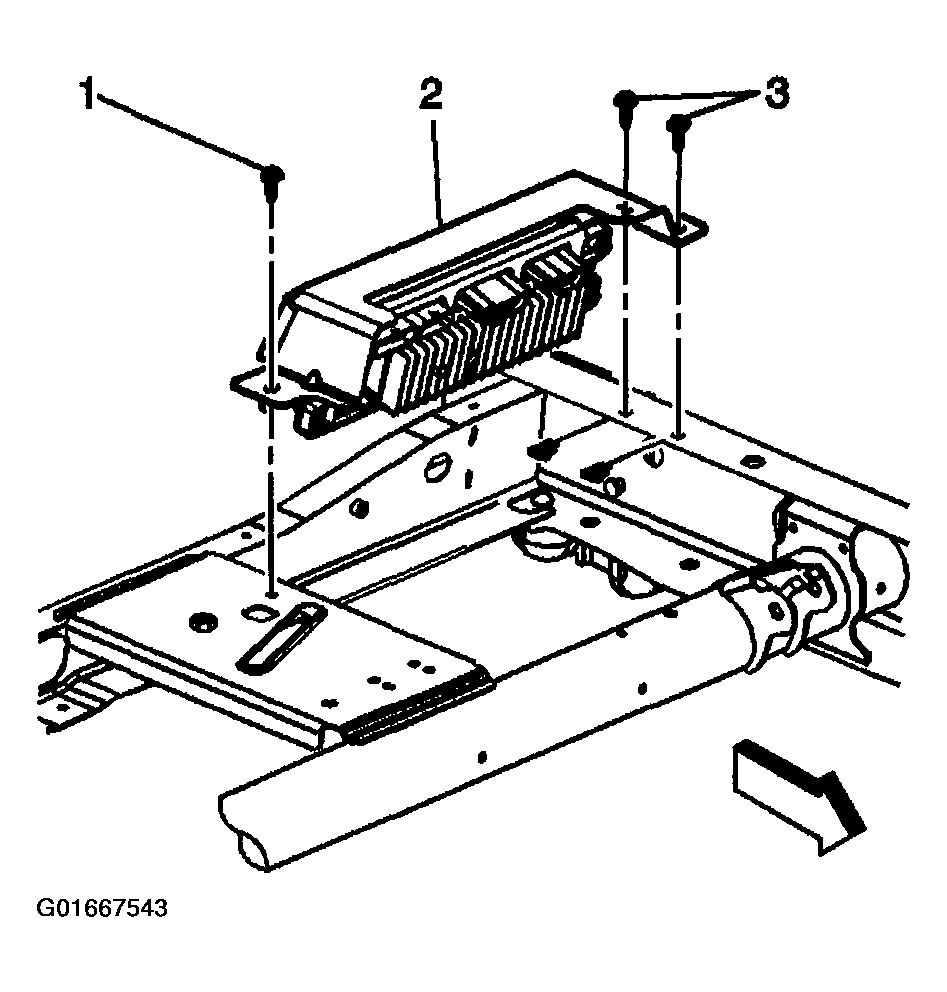

    Fig 1: Rear Wheel Steering Control Module
    G01667543Courtesy of GENERAL MOTORS CORP.
