Installation Procedure

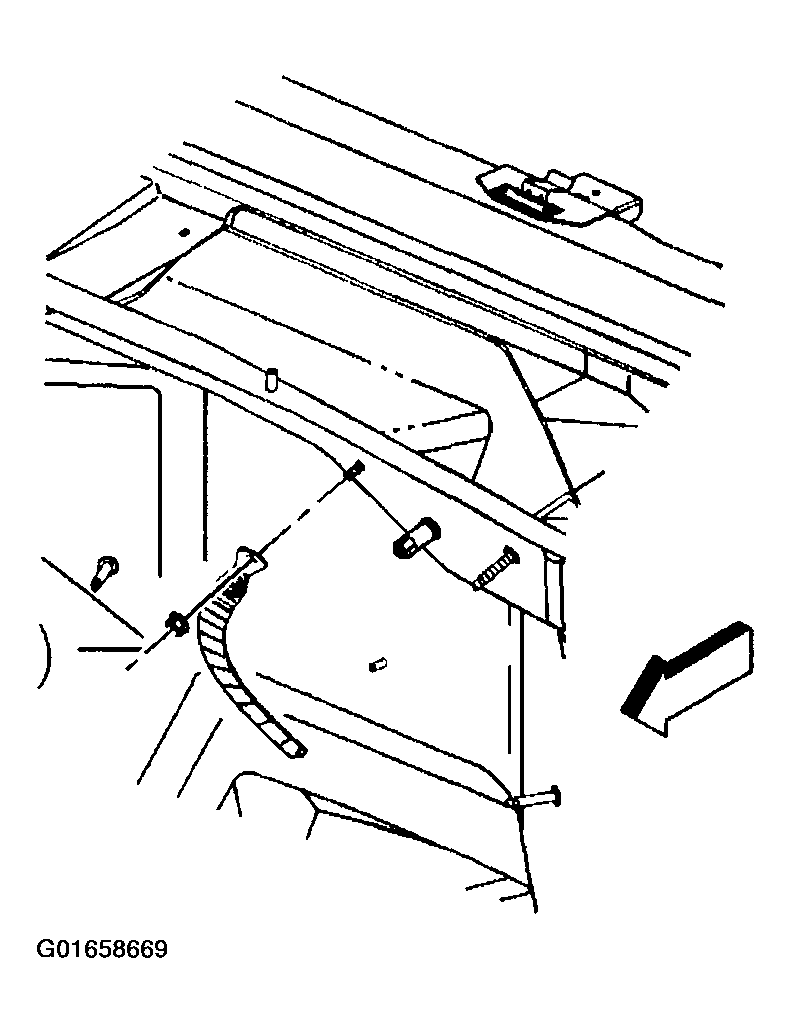

    Fig 1: Installing Ground Strap To Stud
    G01658669Courtesy of GENERAL MOTORS CORP.
  1. Install the ground strap to the stud.
    NOTE: Refer to Fastener Notices in CAUTIONS & NOTICES .
  2. Install the ground strap nut to the stud at the front of dash.

    Tighten

    Tighten the ground strap nut to 9 N.m (80 lb in).

  3. Position the ground strap and engine wiring harness ground.

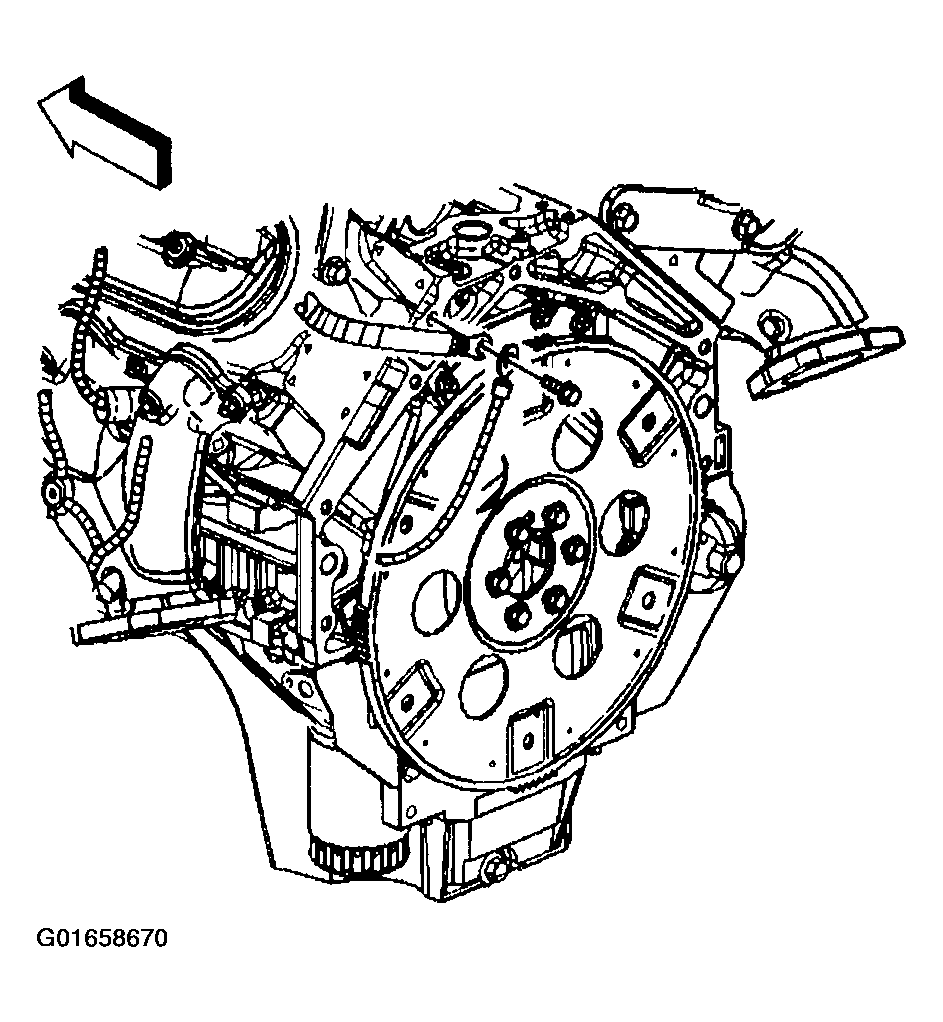

    4. Fig 2: Installing Engine Wiring Harness Ground Bolt
    G01658670Courtesy of GENERAL MOTORS CORP.
  4. Install the engine wiring harness ground bolt.

    Tighten

    Tighten the engine wiring harness ground bolt to 16 N.m (12 lb ft).

  5. If necessary, install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, and 6.0L Engines or ENGINE SIGHT SHIELD REPLACEMENT (6.0L ENGINE w/ RPOs Y91 and Z88) in Engine Mechanical - 4.8 L, 5.3 L, and 6.0 L.
