Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to Fastener Notices in CAUTIONS & NOTICES .
  2. Install the battery tray bolts to the following:
    • Fender inner panel
    • Battery tray reinforcement
    • Battery tray support

      Tighten

      Tighten the battery tray bolts to 9 N.m (80 lb in).

  3. Install the battery. Refer to Battery Replacement  .

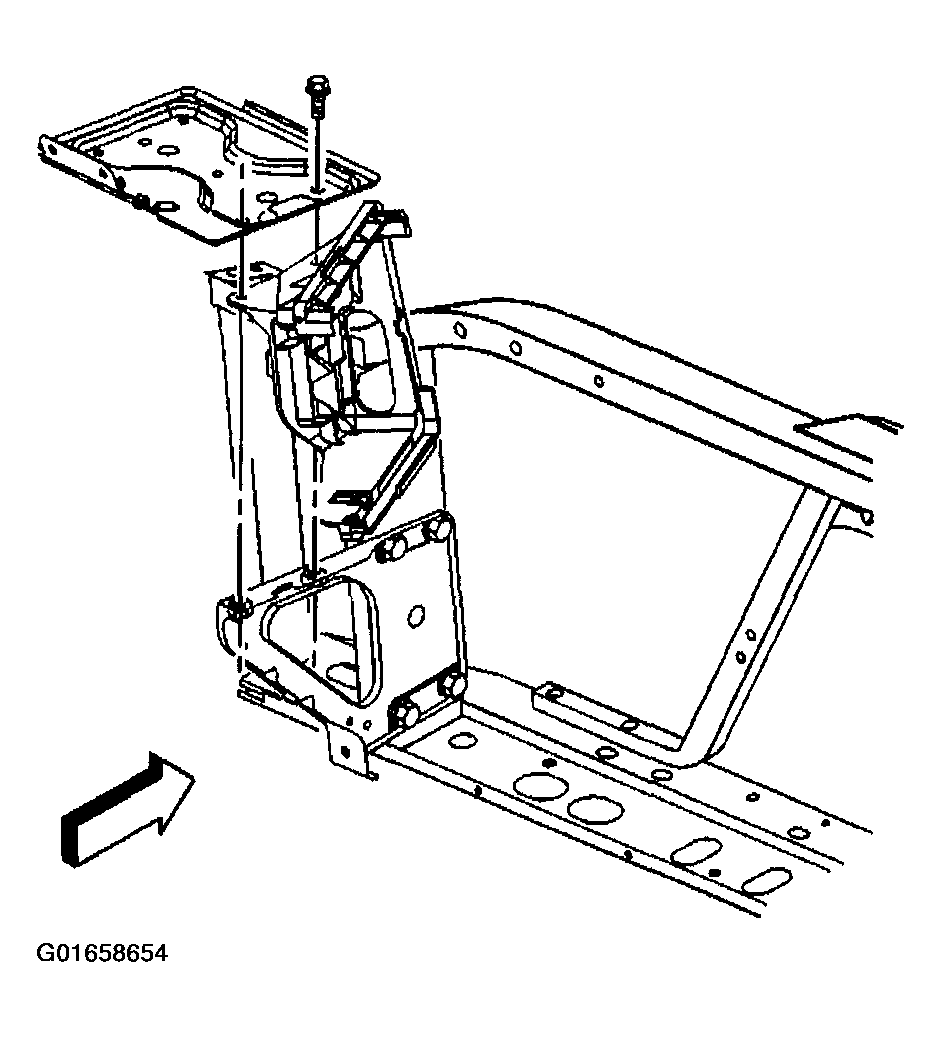

    Fig 1: Battery Tray Replacement
    G01658654Courtesy of GENERAL MOTORS CORP.
