Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery)  .
  2. Unsnap the positive battery cable cap.

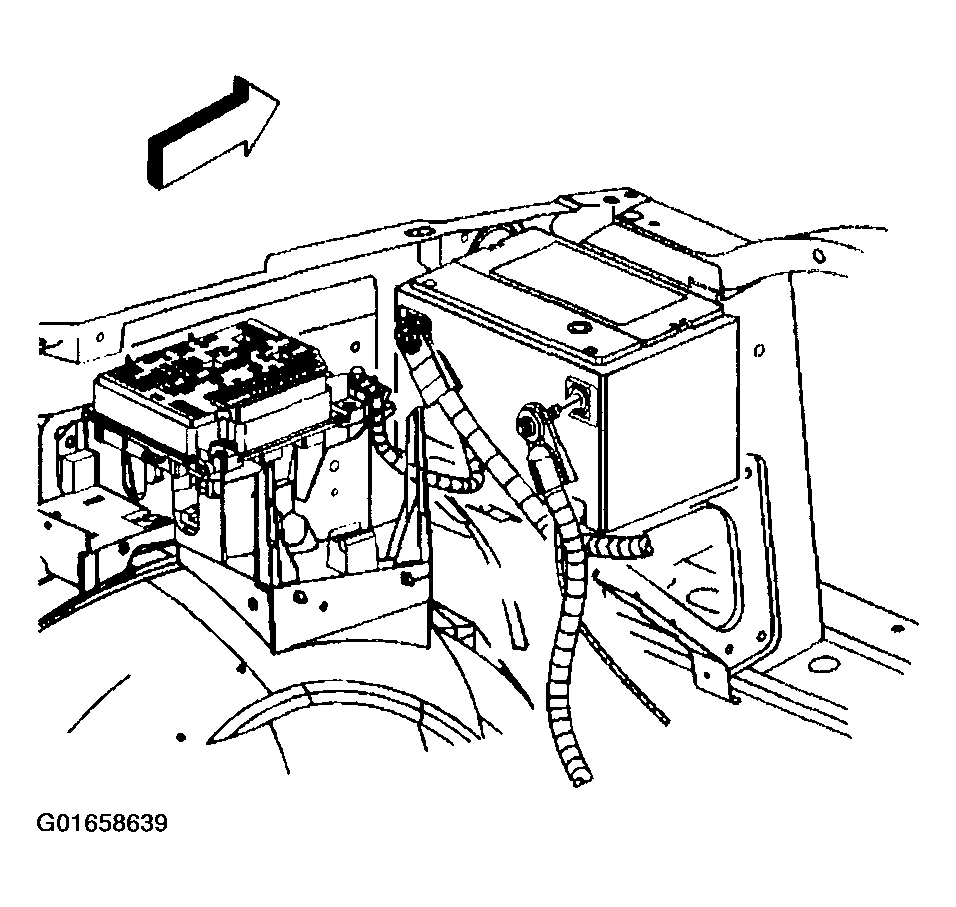

    3. Fig 1: Disconnecting Positive Battery Cable
    G01658639Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the positive battery cable.

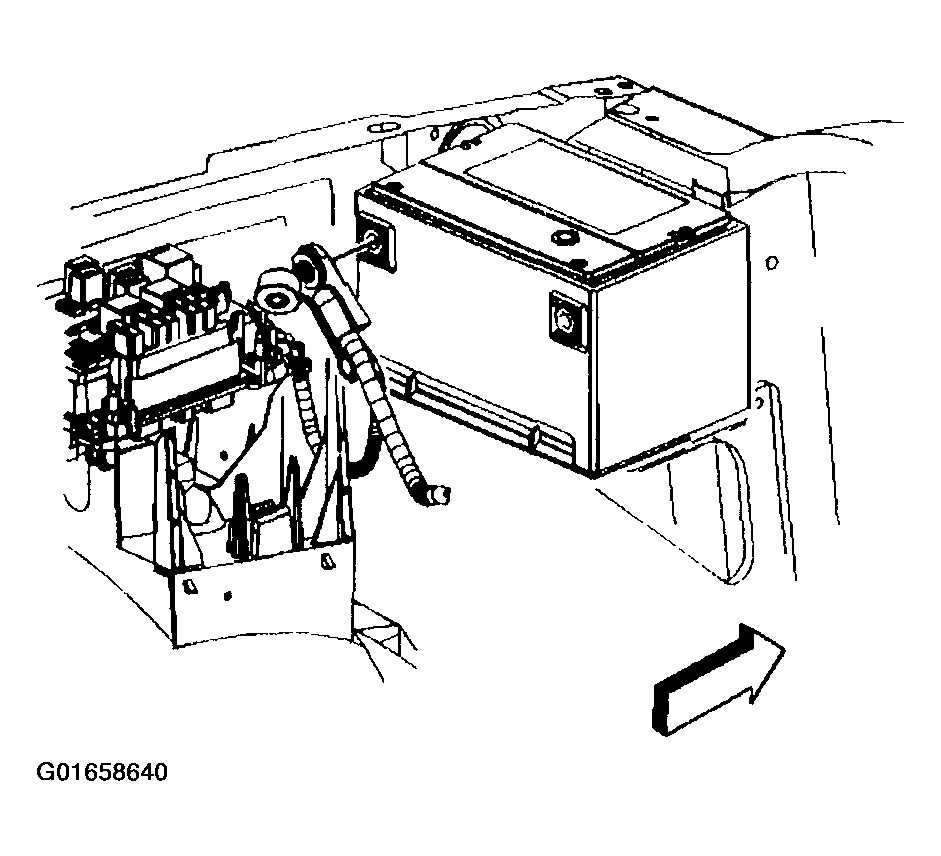

    Fig 2: Disconnect the positive battery cable
    G01658640Courtesy of GENERAL MOTORS CORP.

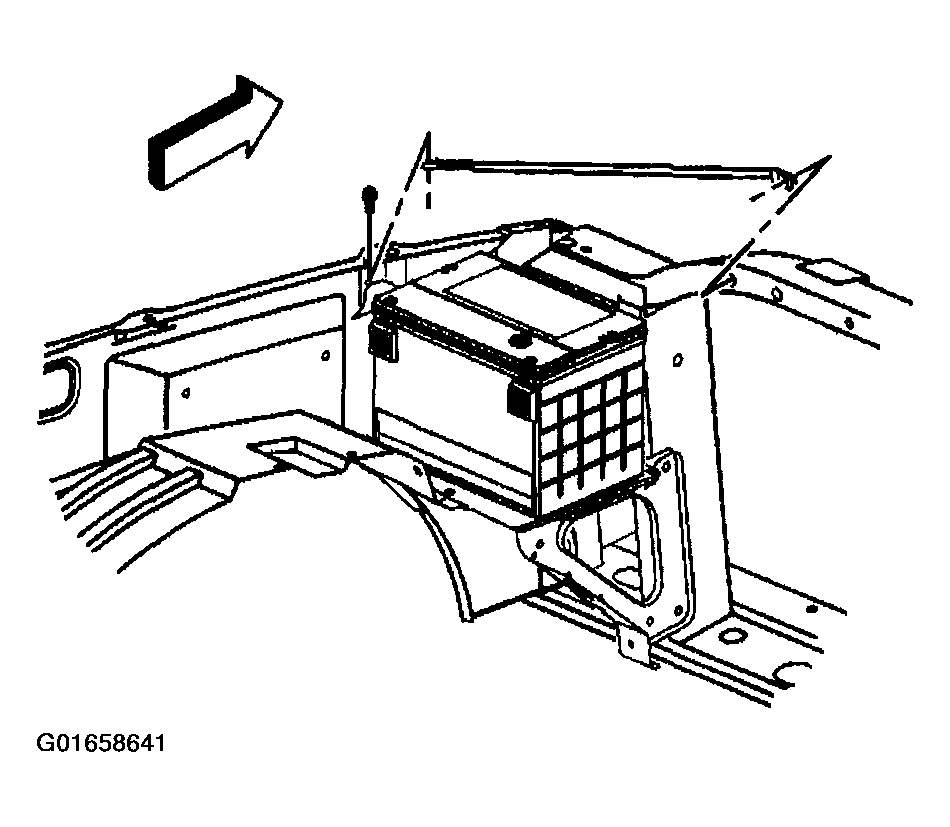

    4. Fig 3: Removing Front End Diagonal Brace Bolts And Brace
    G01658641Courtesy of GENERAL MOTORS CORP.
  4. Remove the front end diagonal brace bolts and brace.
  5. Remove the battery hold down retainer bolt and retainer.
  6. Remove the battery.
  7. Remove the battery insulator, if necessary.

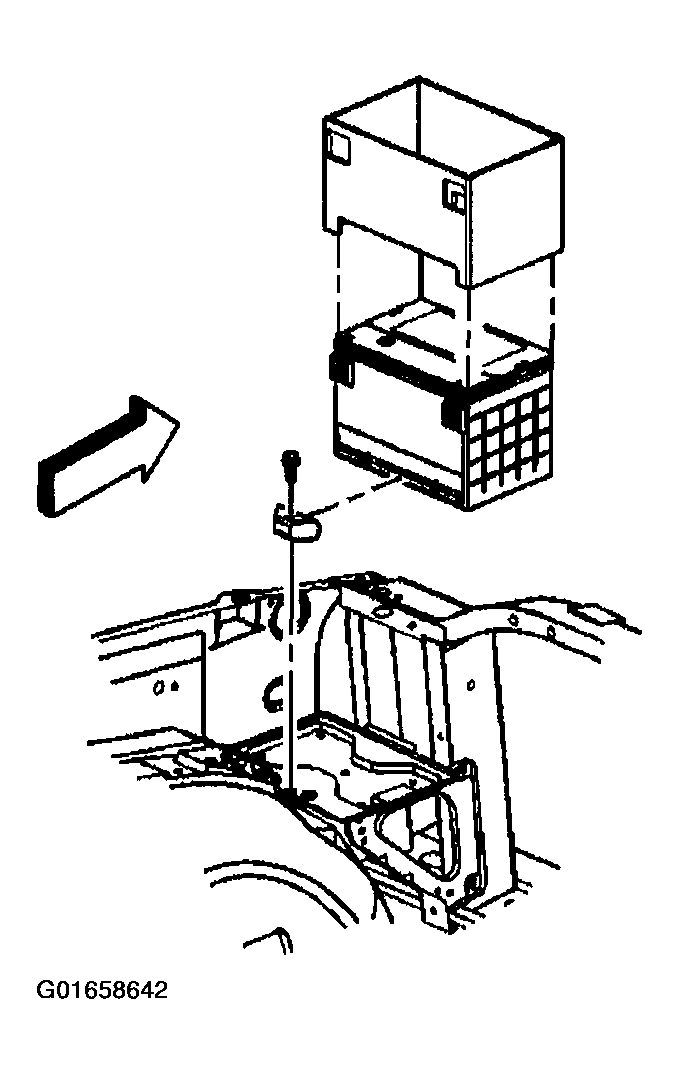

    Fig 4: Removing Battery
    G01658642Courtesy of GENERAL MOTORS CORP.
