Stop lamp Switch Connector End View

Fig 1: Stop lamp Switch Connector End View
G01712327Courtesy of GENERAL MOTORS CORP.

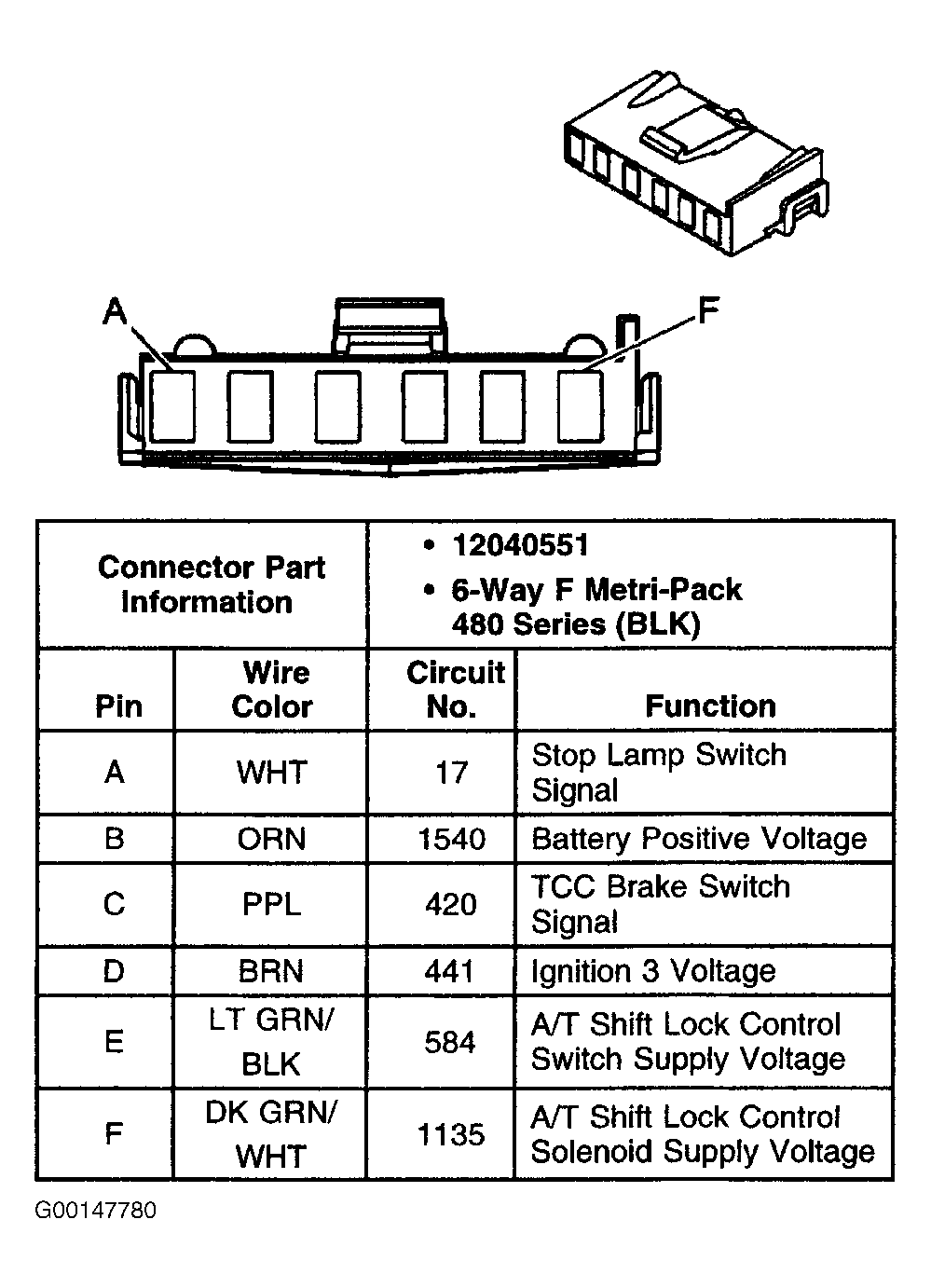

Fig 1: Stop Lamp Switch Connector End View
G00147780Courtesy of GENERAL MOTORS CORP.


Fig 1: Stop Lamp Switch Connector End View
G00148198Courtesy of GENERAL MOTORS CORP.
