Propshaft Speed Sensor - Front Connector End View

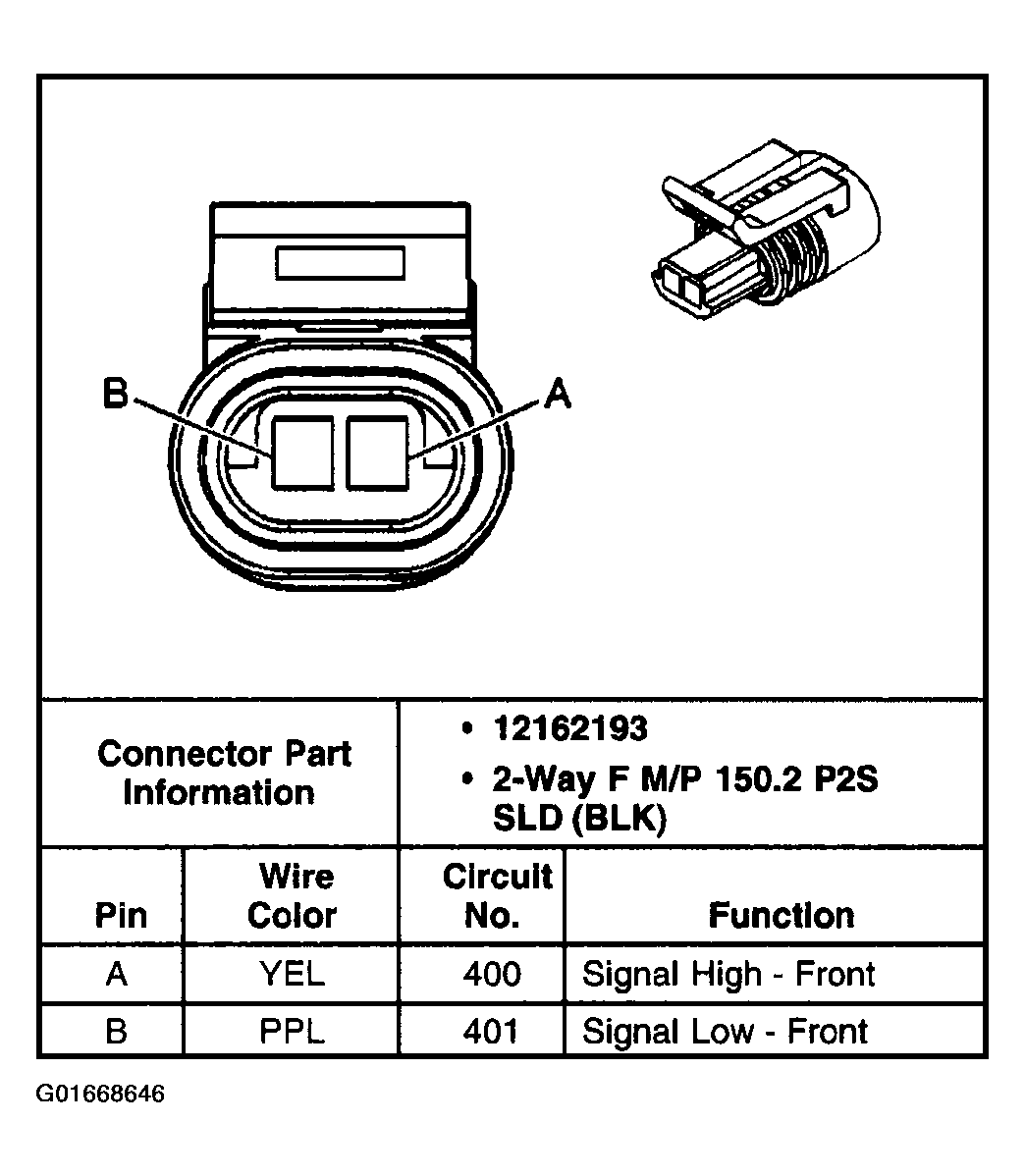

Fig 1: Propshaft Speed Sensor - Front Connector End View

G01668646

Courtesy of GENERAL MOTORS CORP.
