Knock Sensor Connector End View
Knock Sensor Connector End View

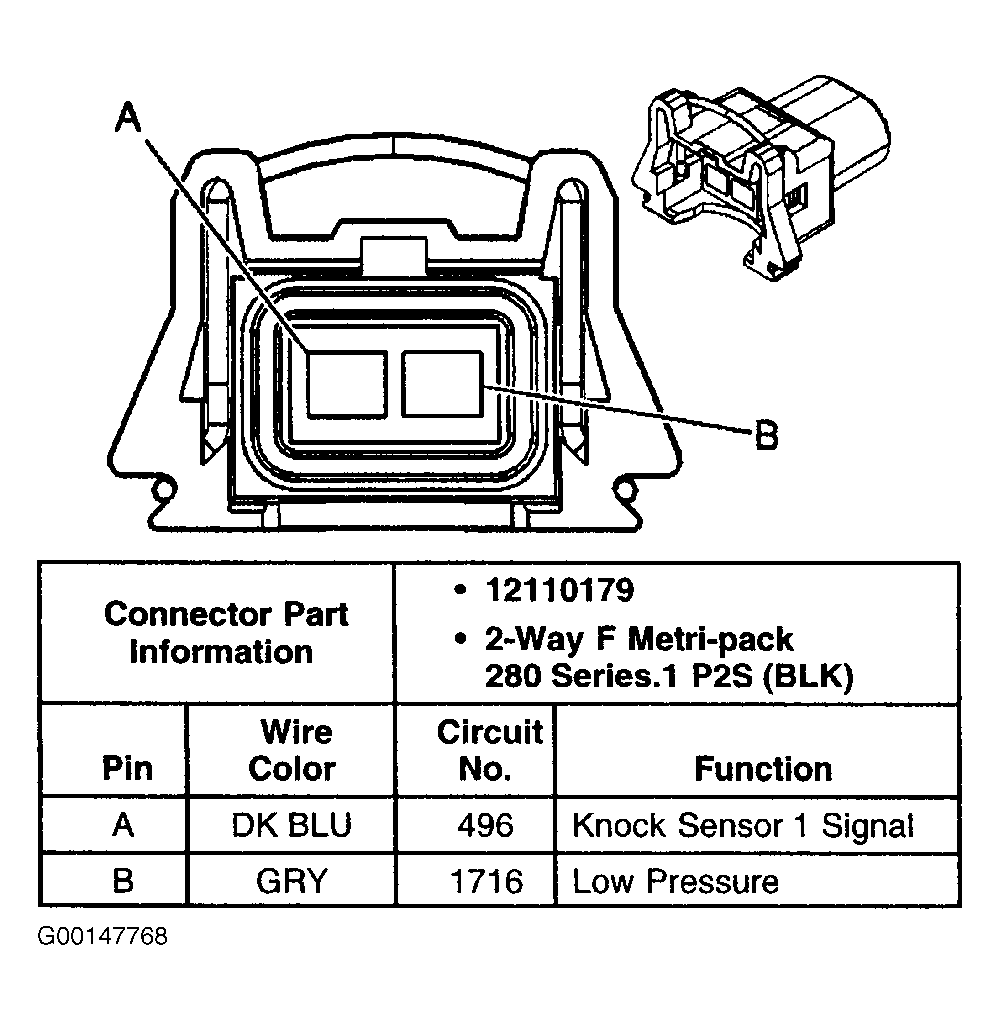

Fig 1: Knock Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 1: Knock Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
