Injector Connector End View
Injector Connector End View

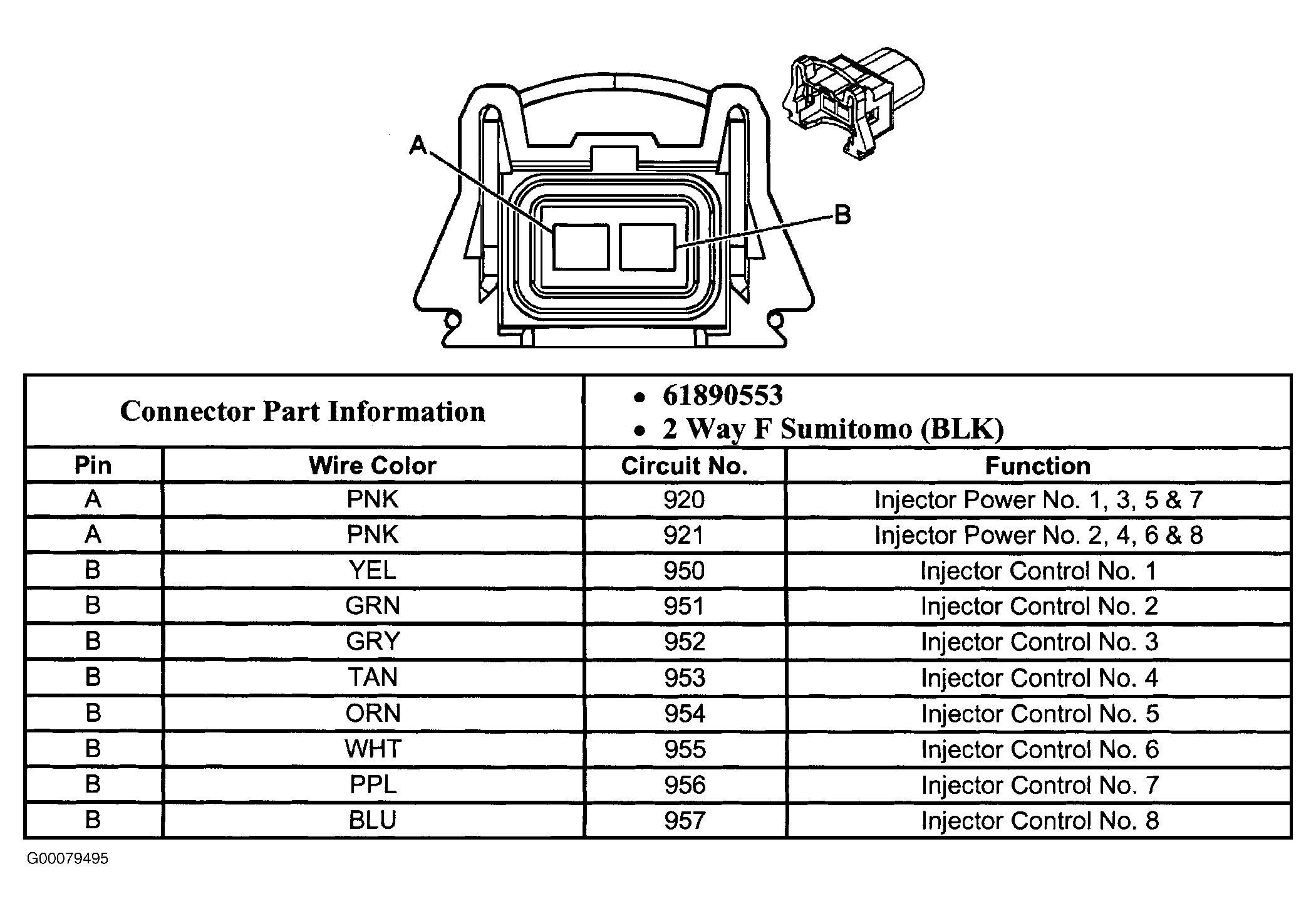

Fig 1: Injector Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
