Power Door Systems Connector End Views

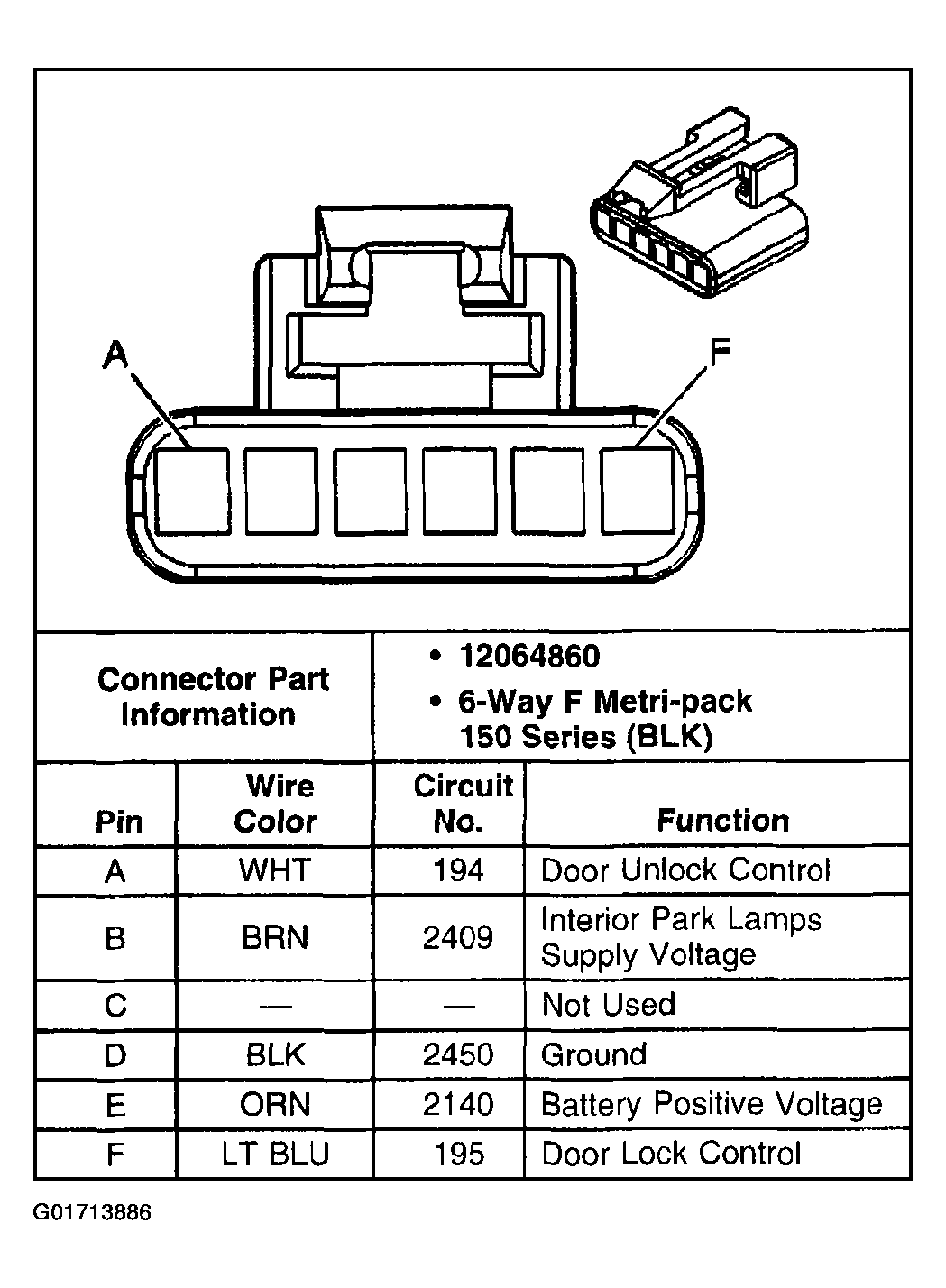

Fig 1: Identifying Door Lock Actuator Connector End View - Driver Side

Courtesy of GENERAL MOTORS CORP.

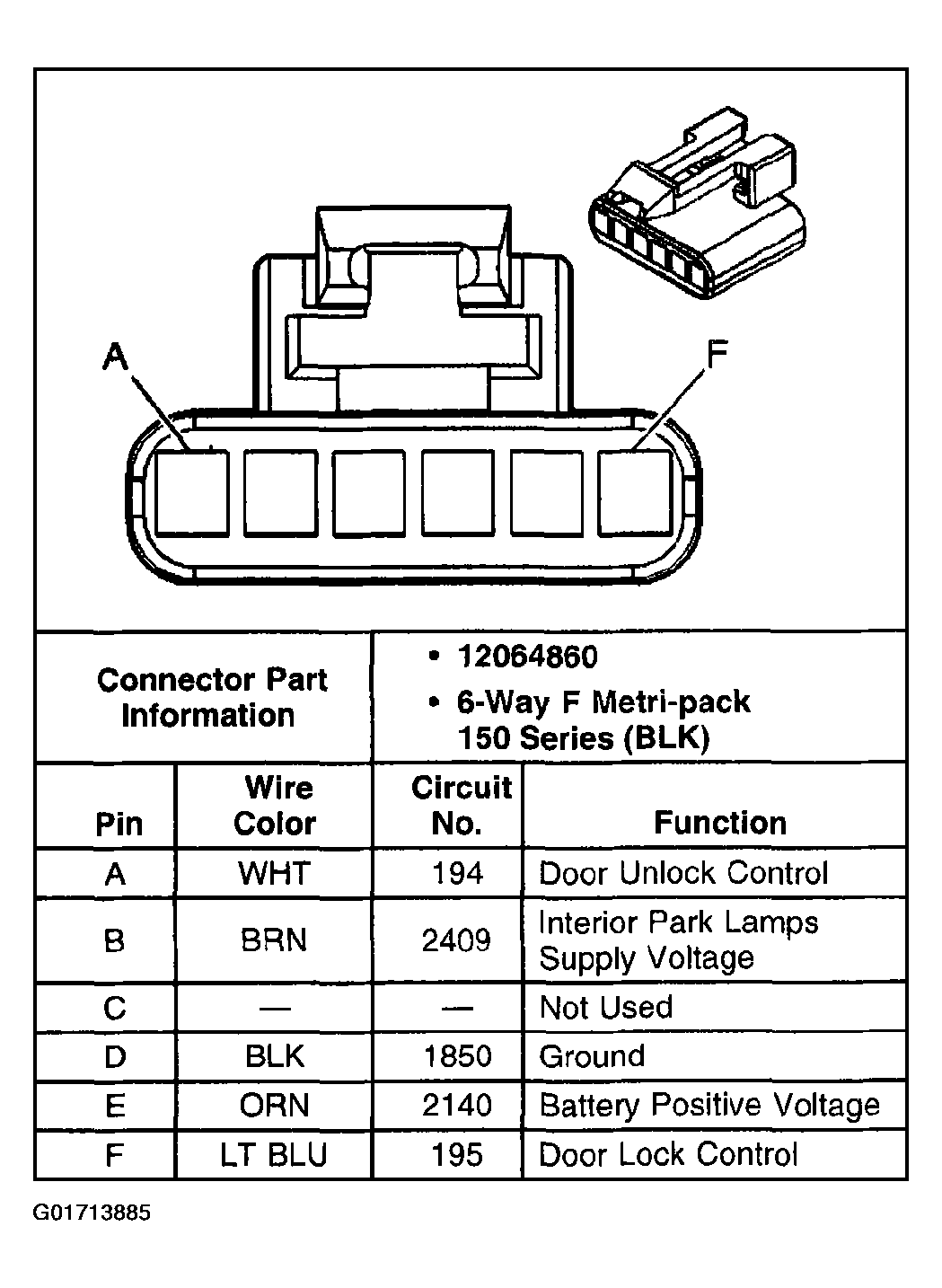

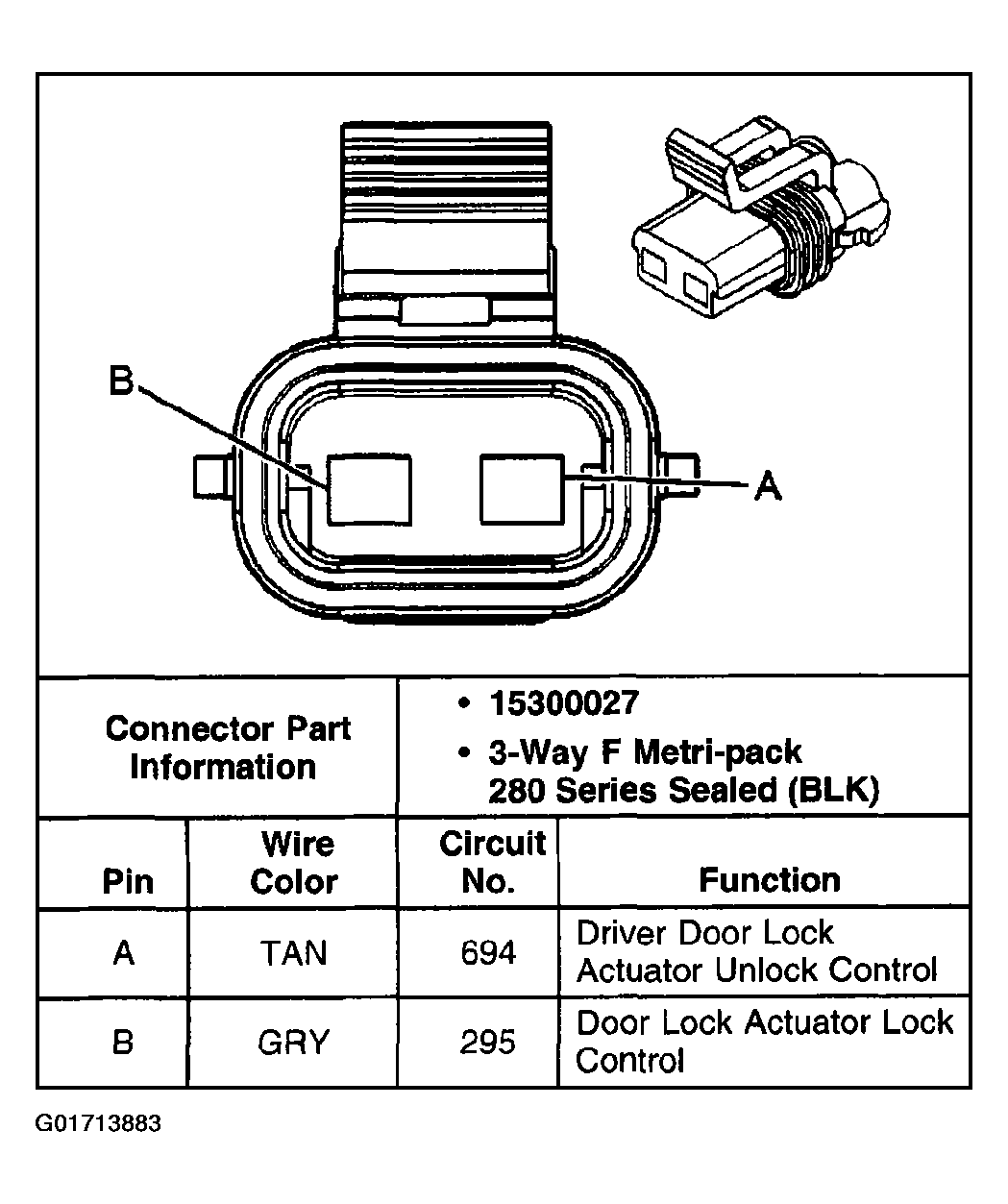

Fig 2: Identifying Door Lock Actuator Connector End View - RF/LR/RR

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Door Lock Switch Connector End View - Driver Side (Base)

Courtesy of GENERAL MOTORS CORP.

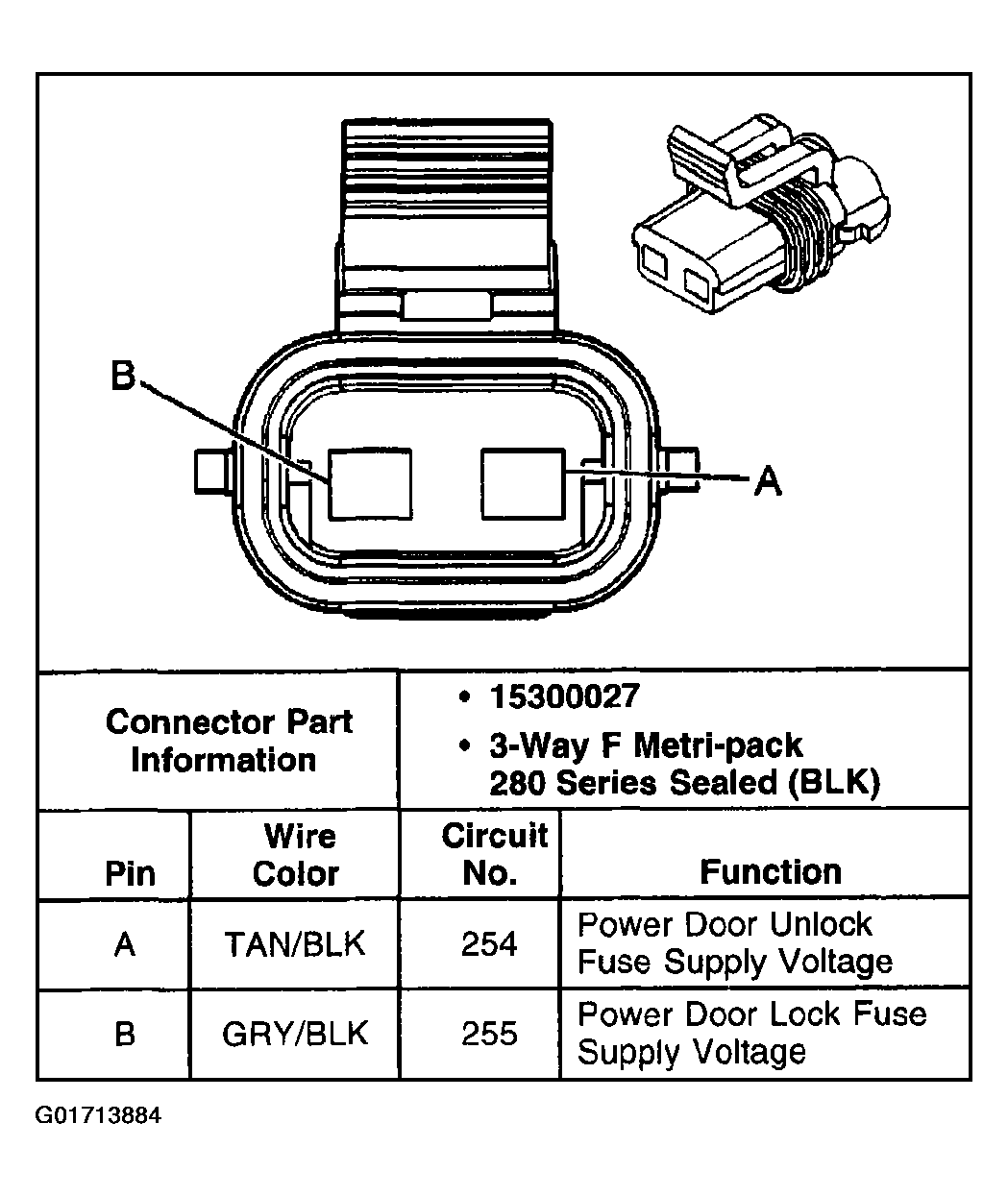

Fig 4: Identifying Door Lock Switch Connector End View - Front Passenger Side (Base)

Courtesy of GENERAL MOTORS CORP.

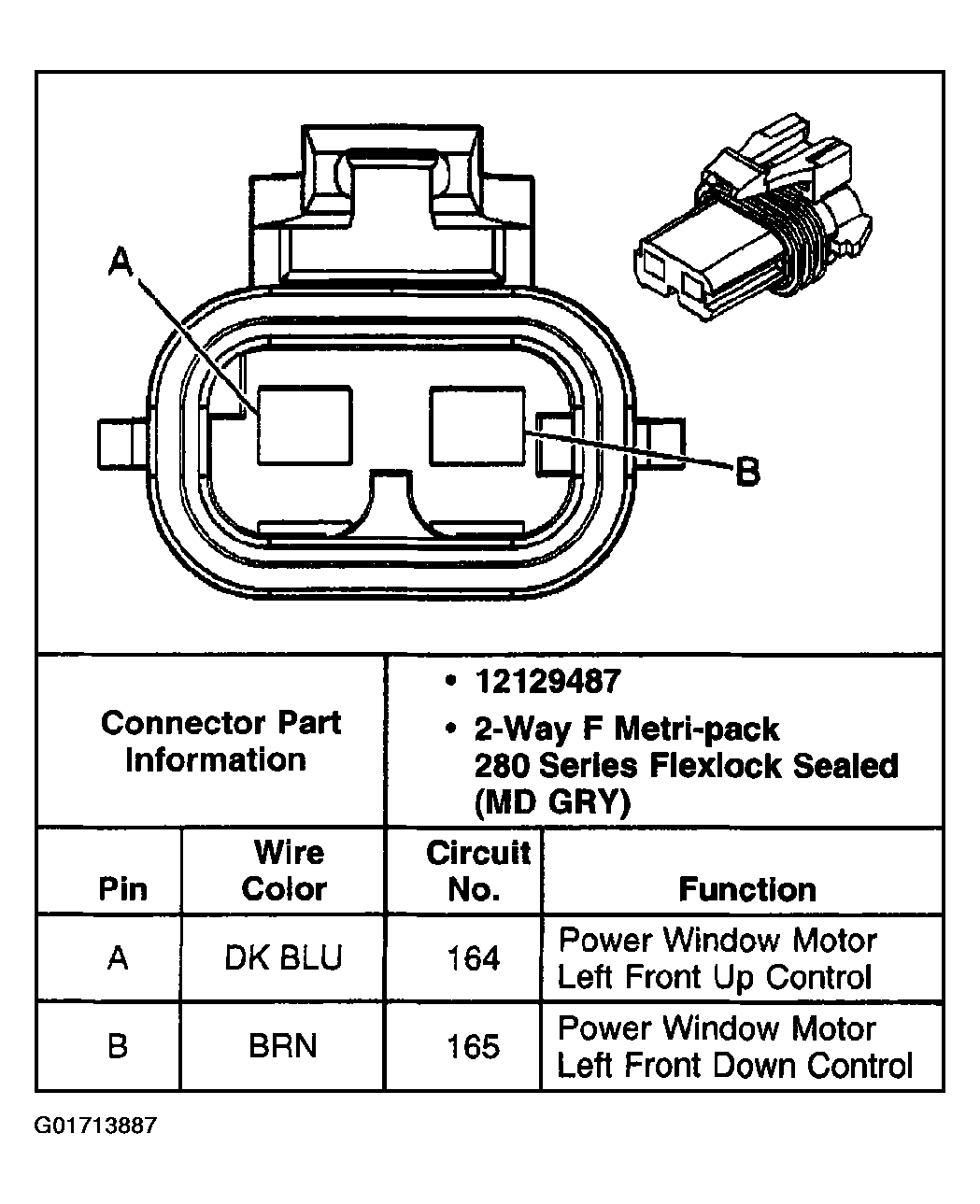

Fig 5: Identifying Window Motor Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

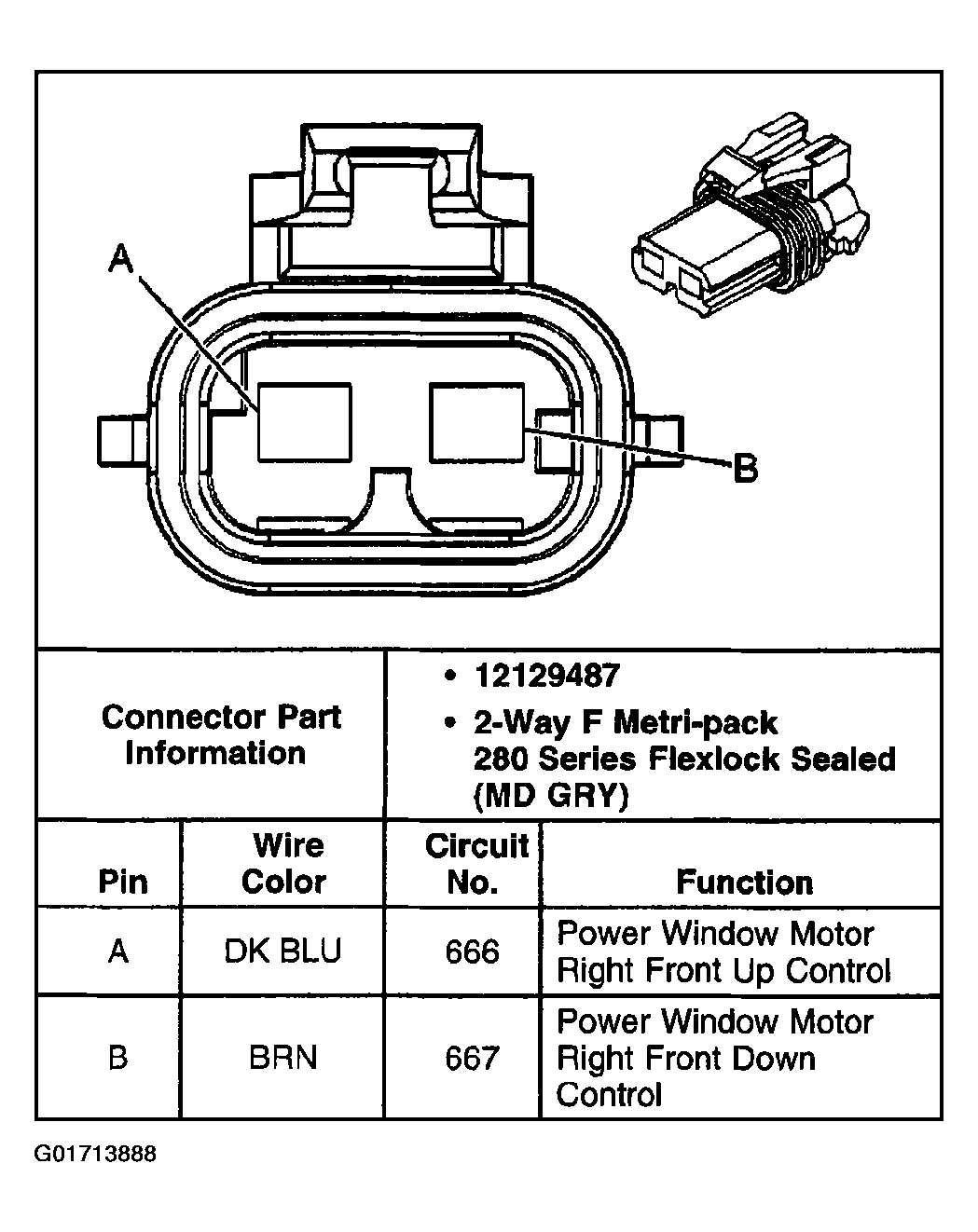

Fig 6: Identifying Window Motor Connector End View - Front Passenger Side

Courtesy of GENERAL MOTORS CORP.

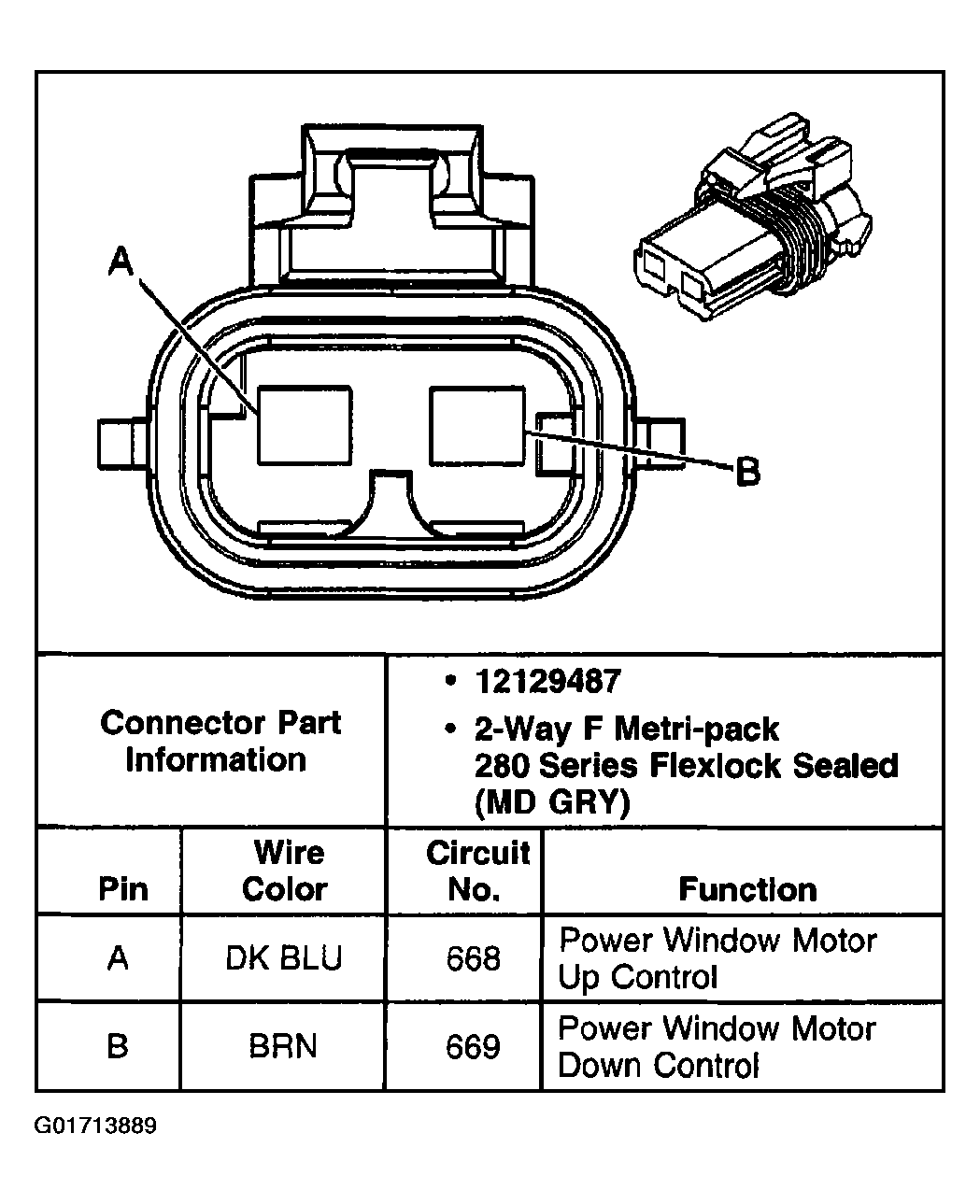

Fig 7: Identifying Window Motor LR/RR Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Window/Door Lock Switch Connector End View - Driver Side Except 4-Door C1

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Window/Door Lock Switch Connector End View - Driver Side 4-Door C1

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Window/Door Lock Switch Connector End View - Driver Side Except 4-Door C2

Courtesy of GENERAL MOTORS CORP.

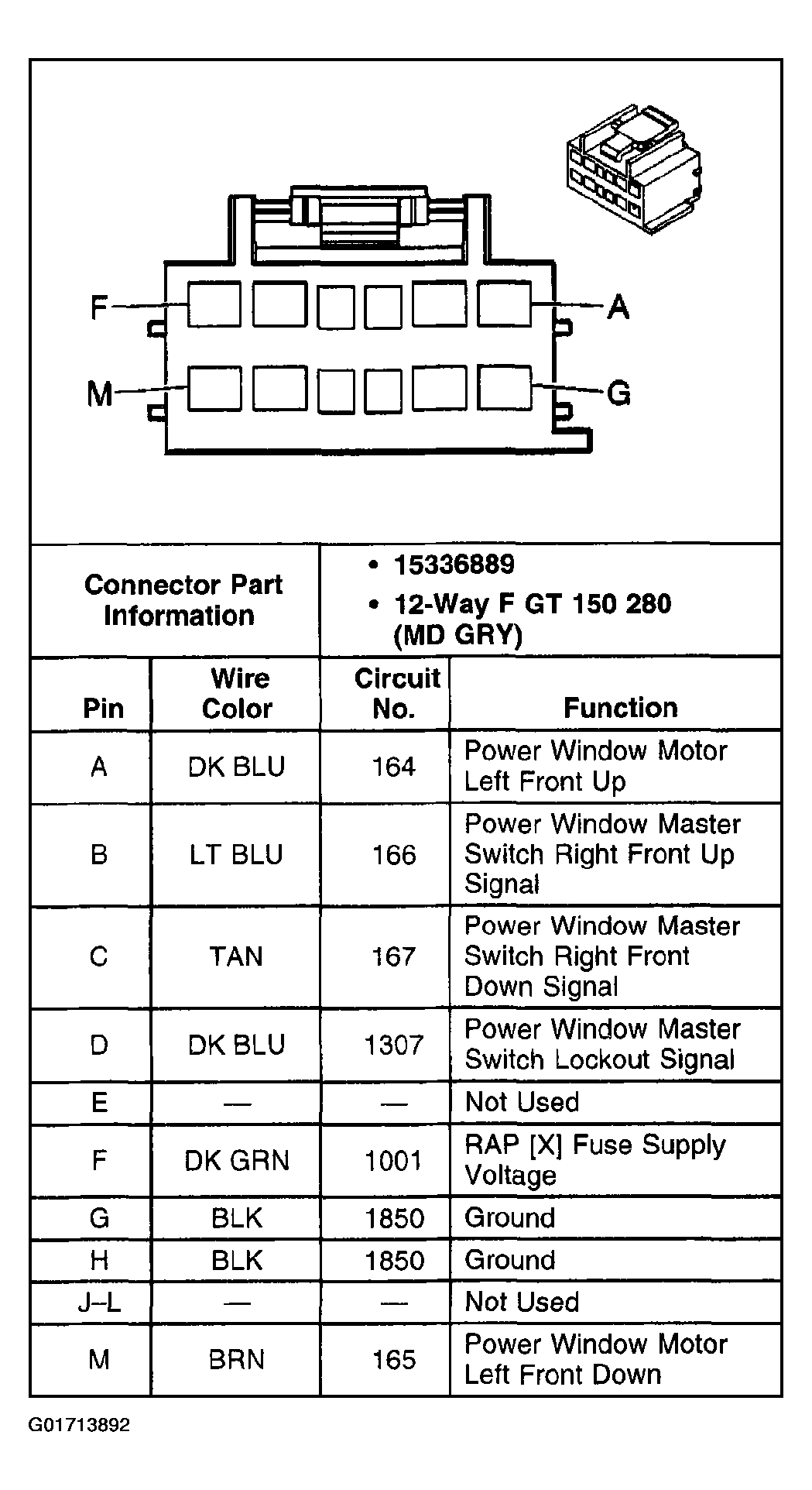

Fig 11: Identifying Window/Door Lock Switch Connector End View - Front Passenger Side

Courtesy of GENERAL MOTORS CORP.

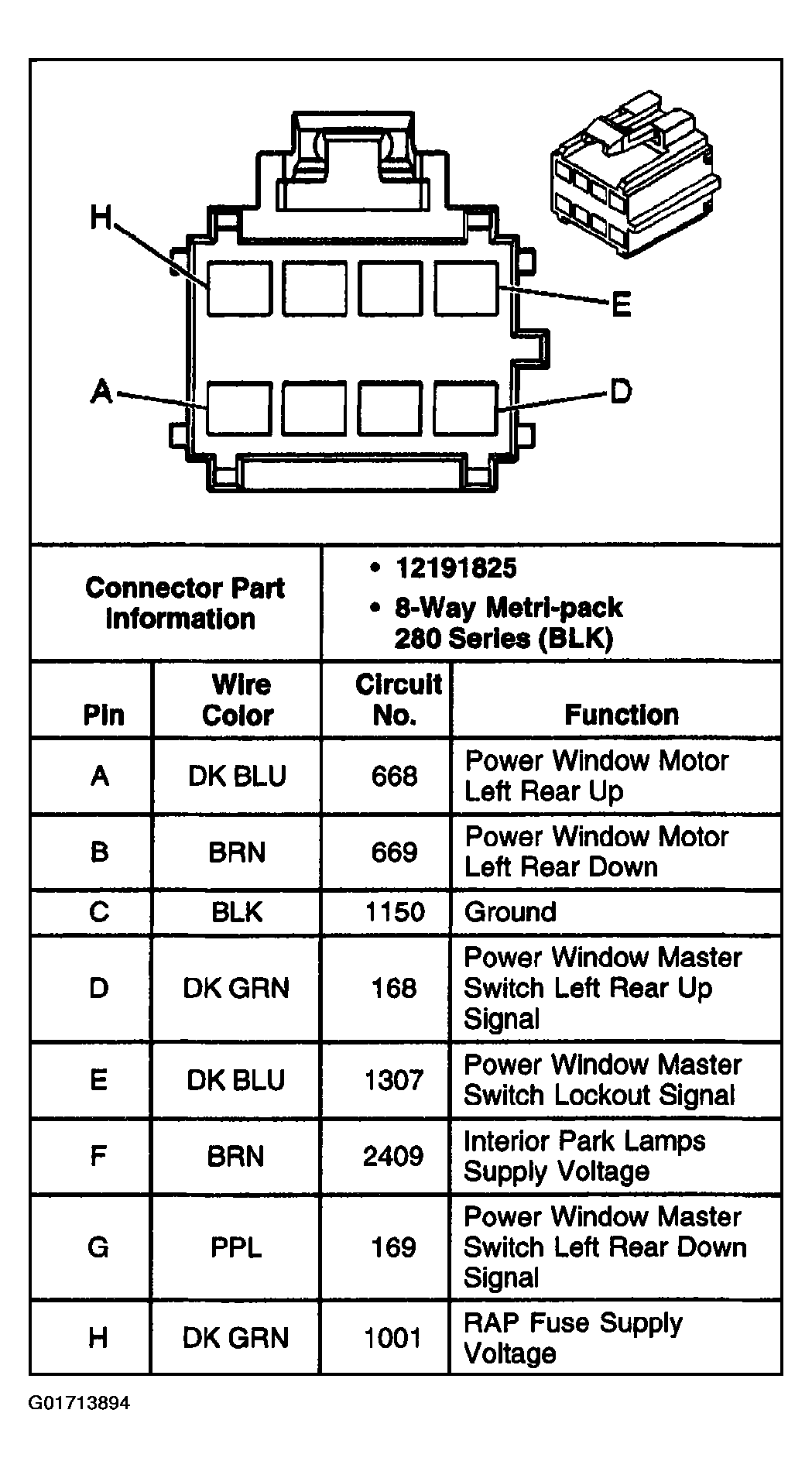

Fig 12: Identifying Window Switch, LR Connector End View

Courtesy of GENERAL MOTORS CORP.

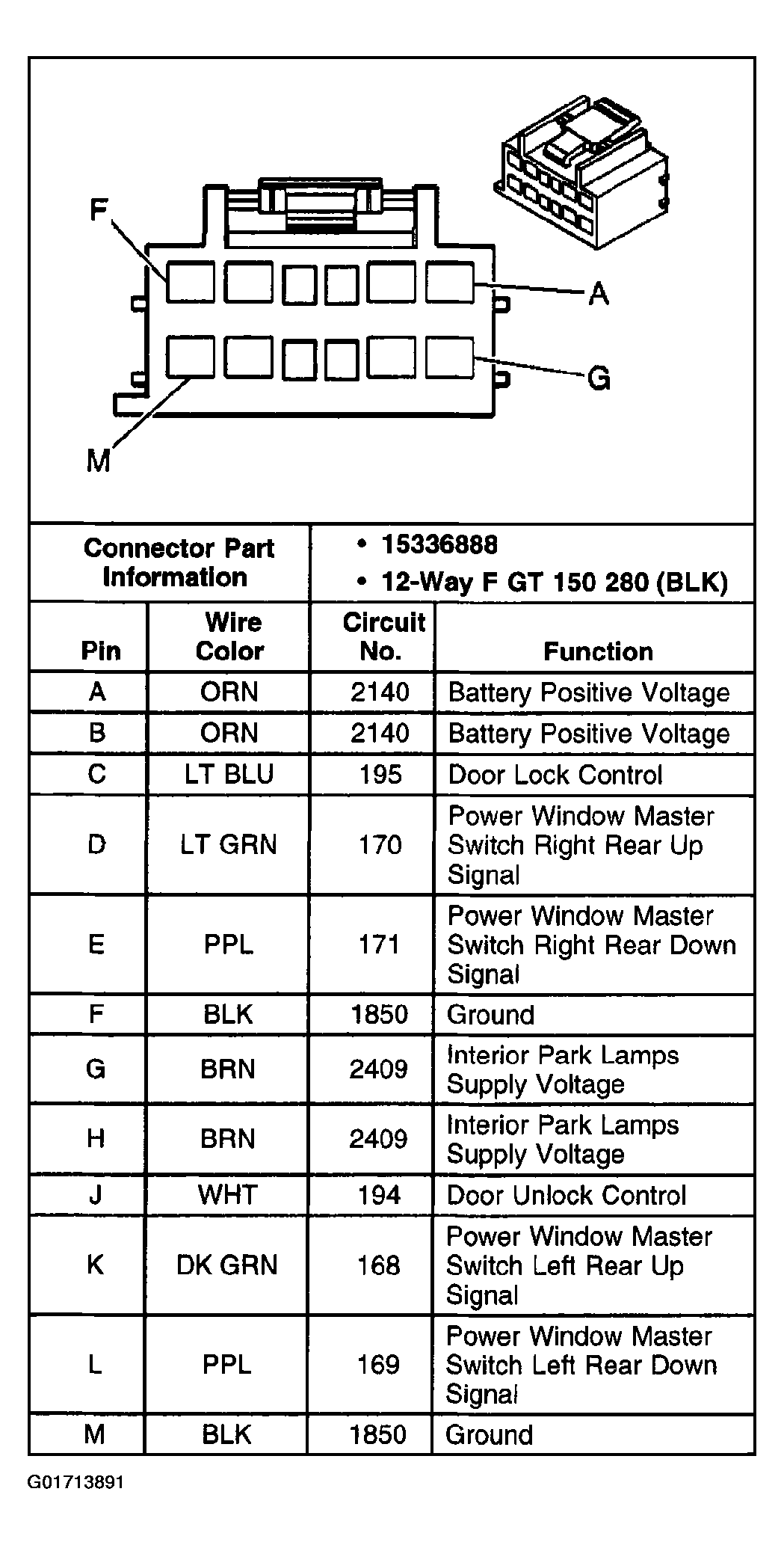

Fig 13: Identifying Window Switch, RR Connector End View

Courtesy of GENERAL MOTORS CORP.

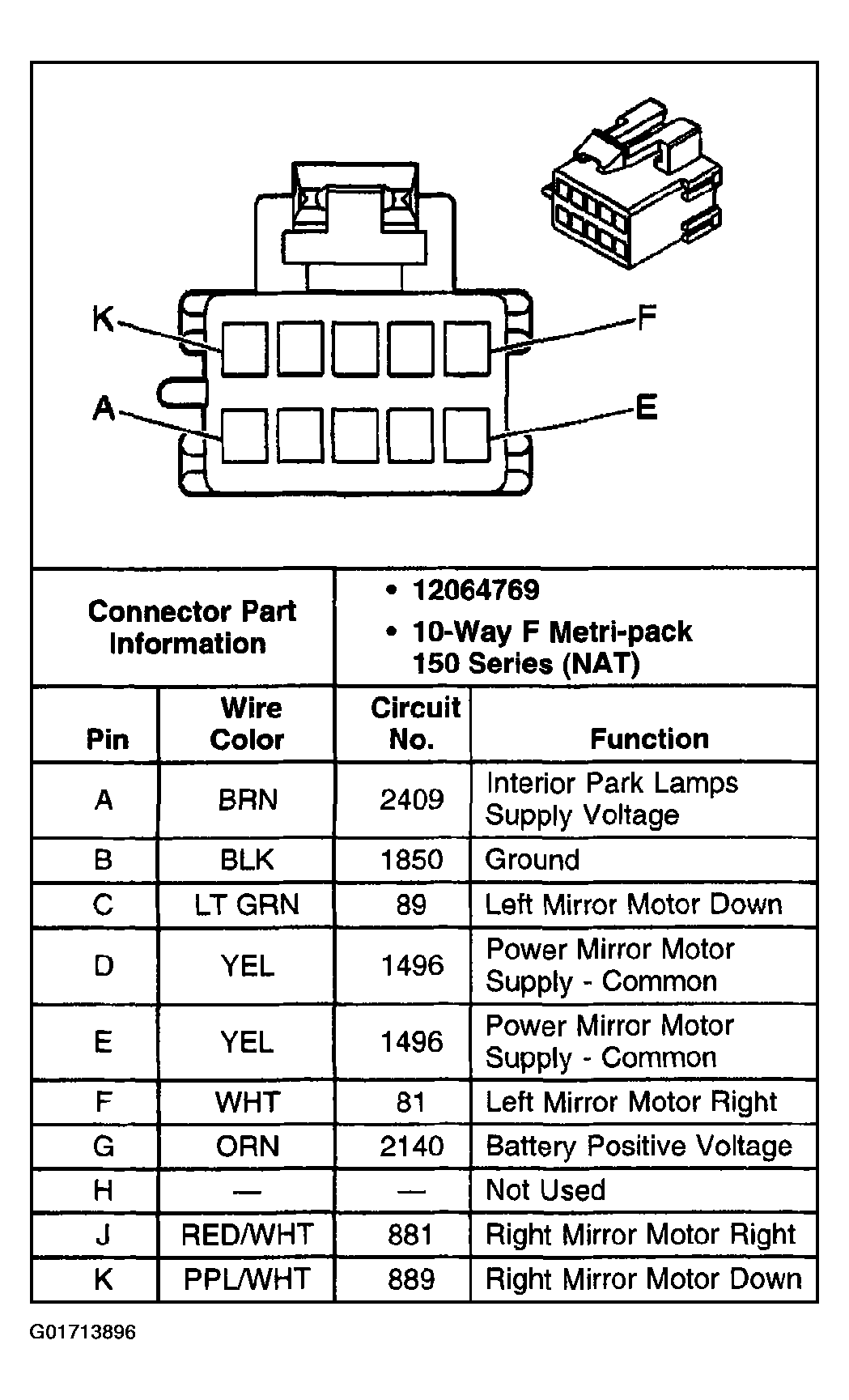

Fig 14: Identifying Outside Rearview Mirror Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

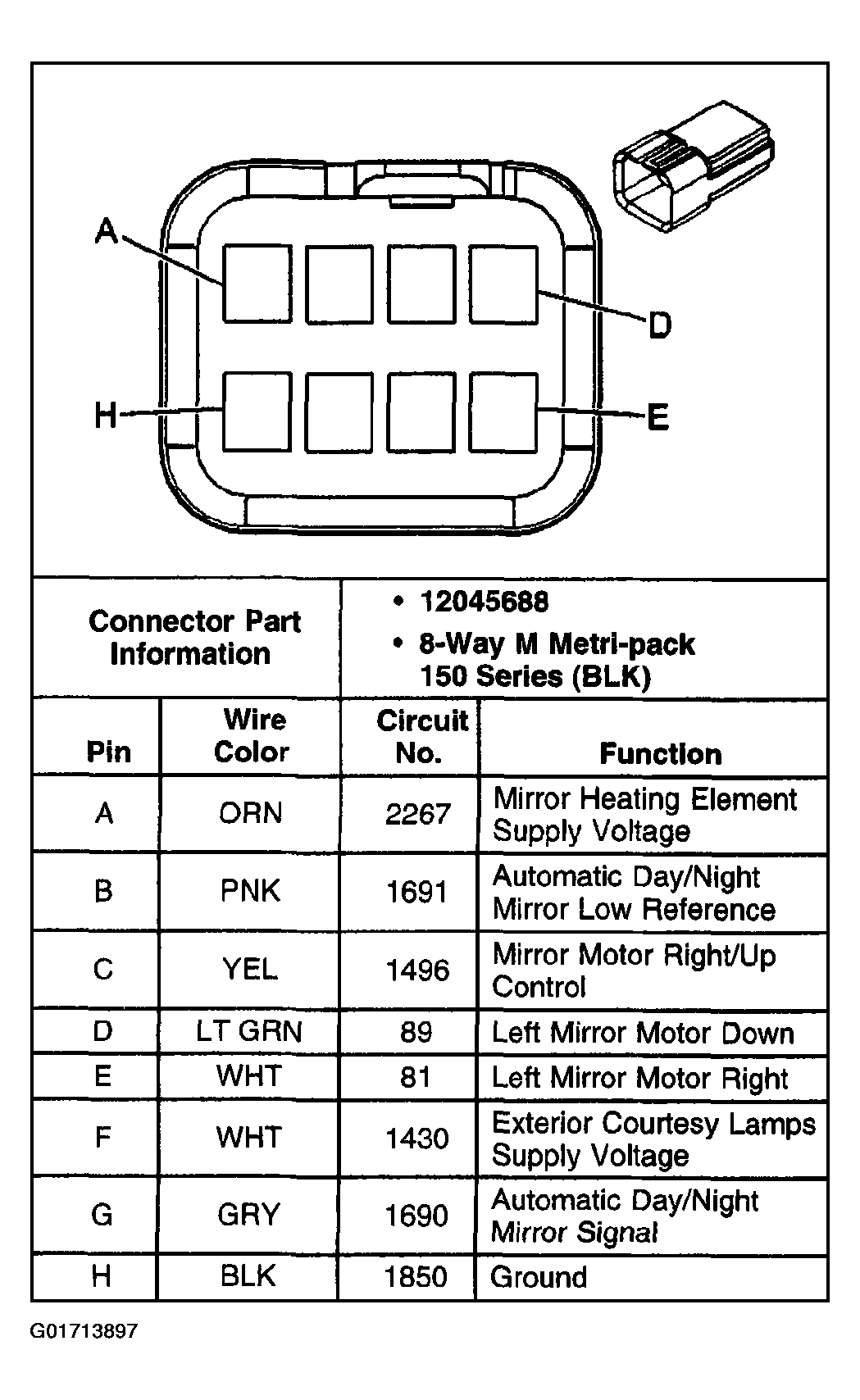

Fig 15: Identifying Outside Rearview Mirror Connector End View - Driver Side

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Outside Rearview Mirror Connector End View - Passenger Side

Courtesy of GENERAL MOTORS CORP.
