Power Seat Systems Component Views

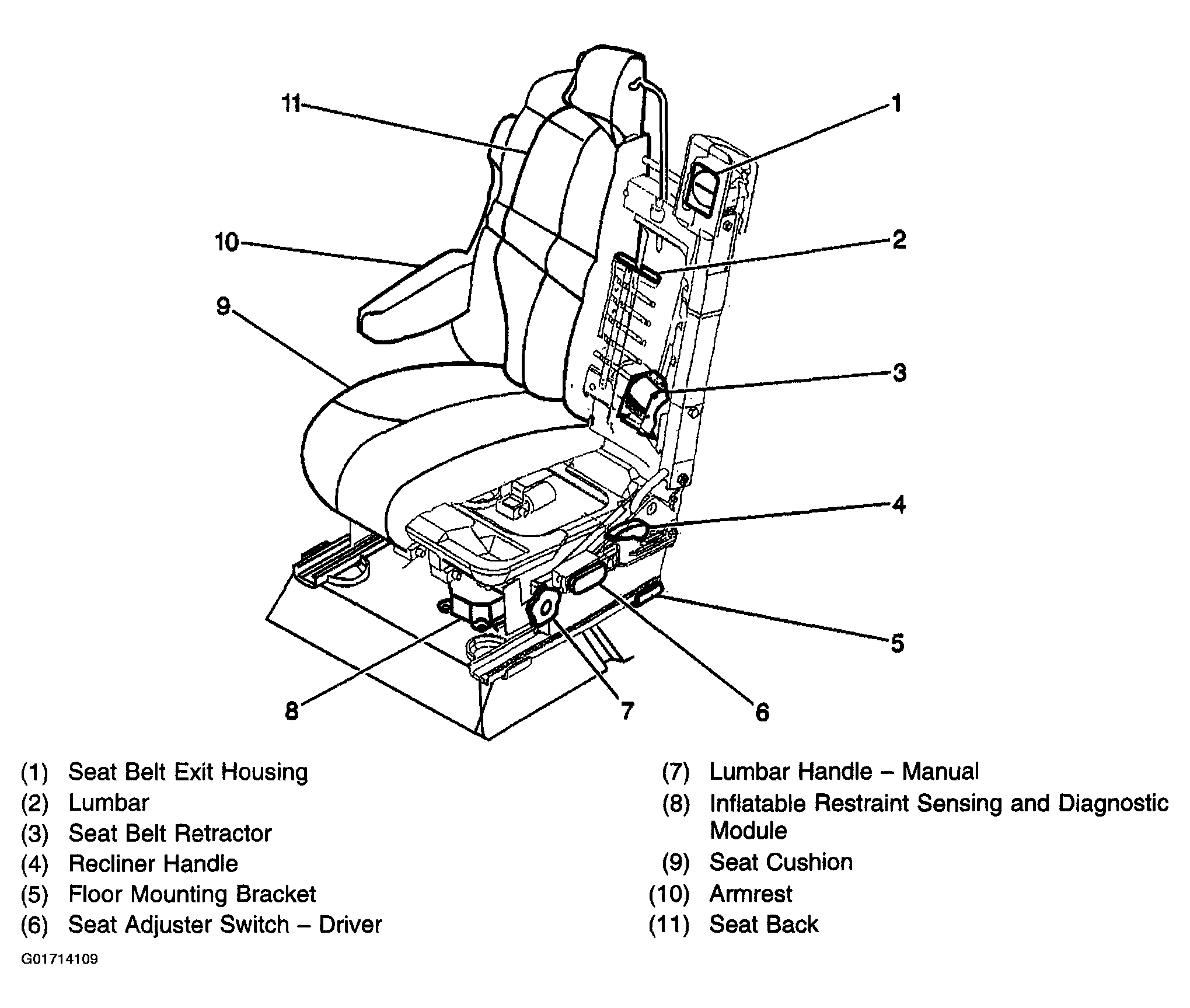

Fig 1: Identifying LH Front Seat Electrical Components - Mid Level; RH Similar
G01714109Courtesy of GENERAL MOTORS CORP.

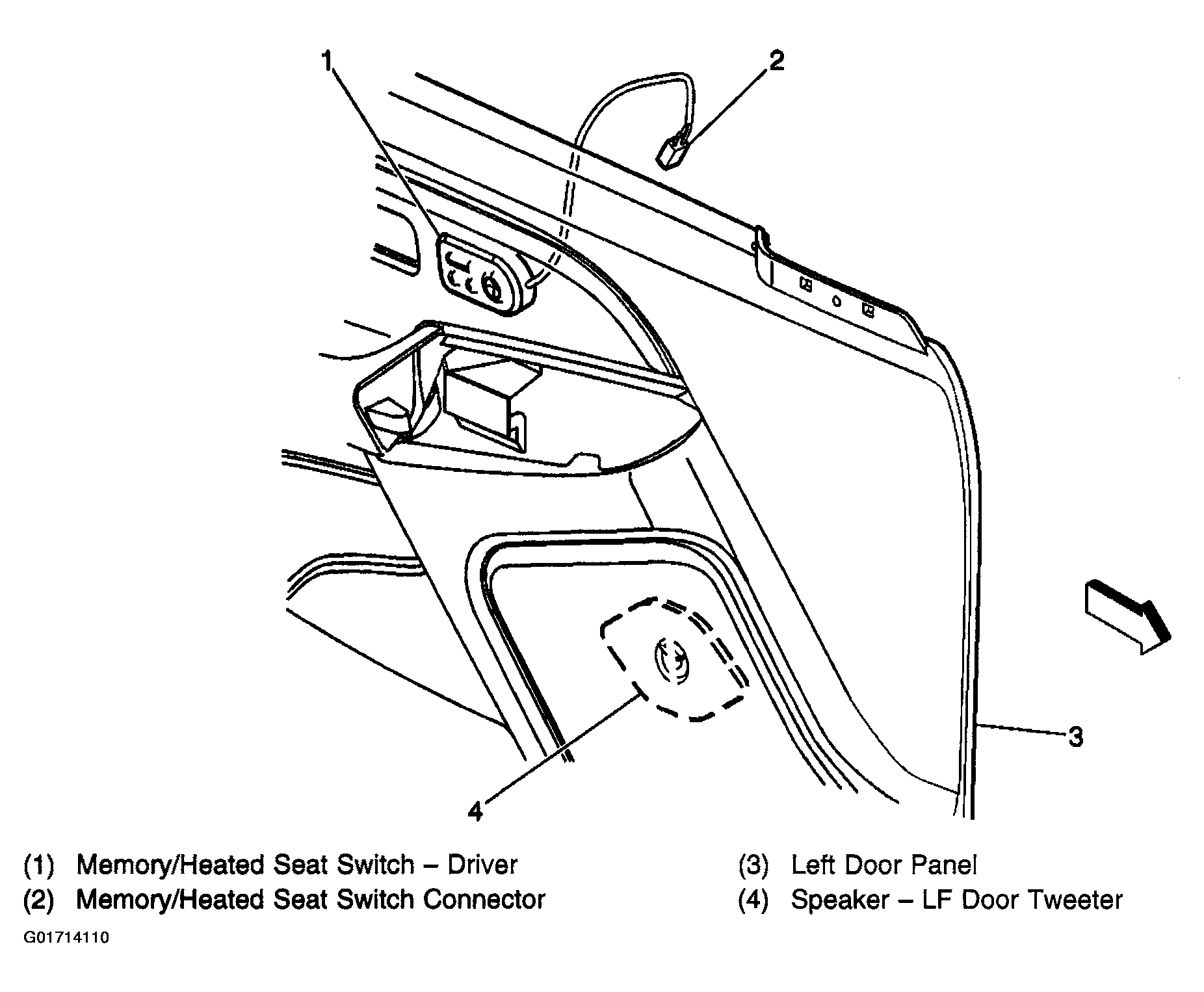

Fig 2: Identifying Left Door Panel Electrical Components (RH Similar)
G01714110Courtesy of GENERAL MOTORS CORP.

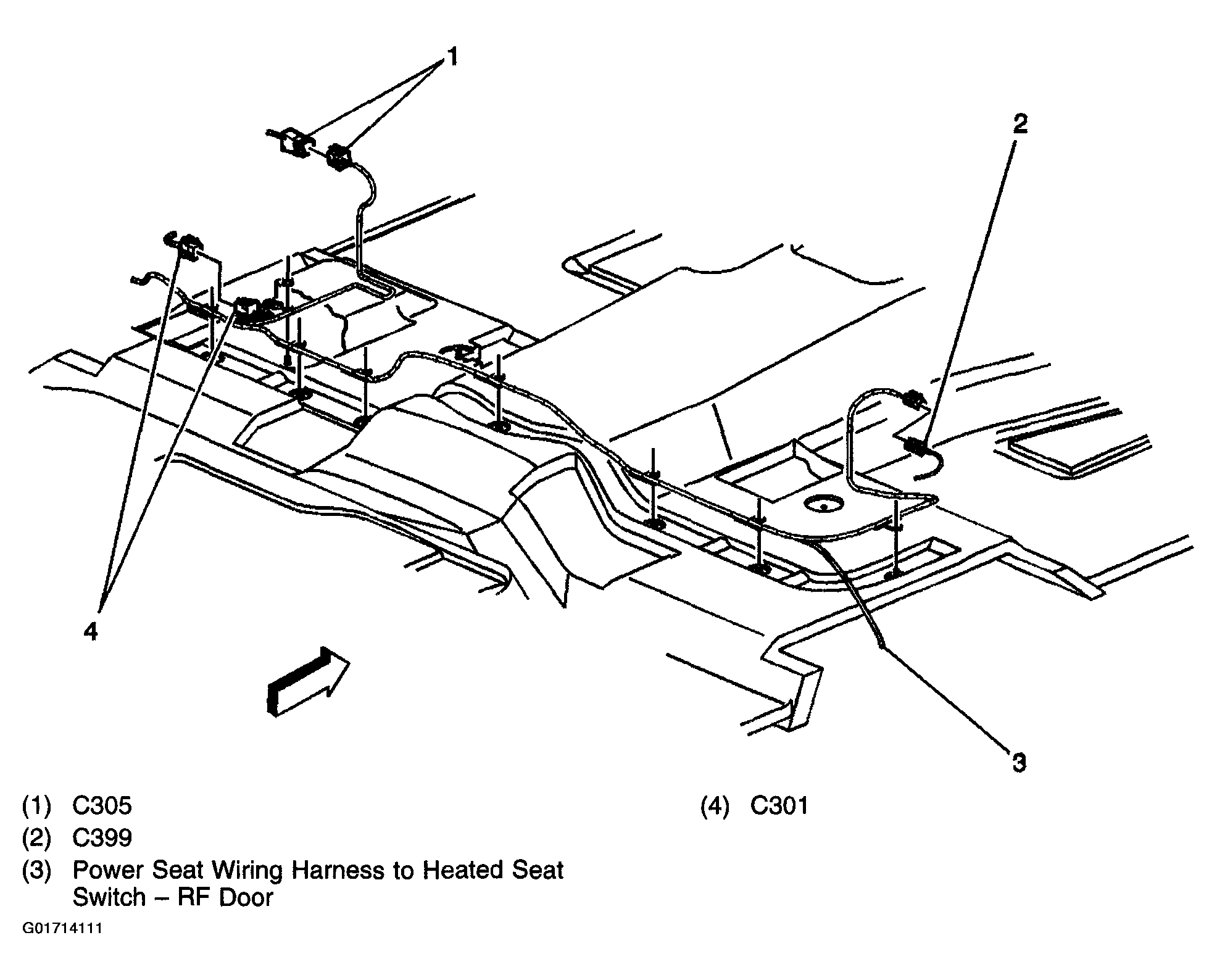

Fig 3: Identifying Driver/Passenger Power Seat Wiring
G01714111Courtesy of GENERAL MOTORS CORP.

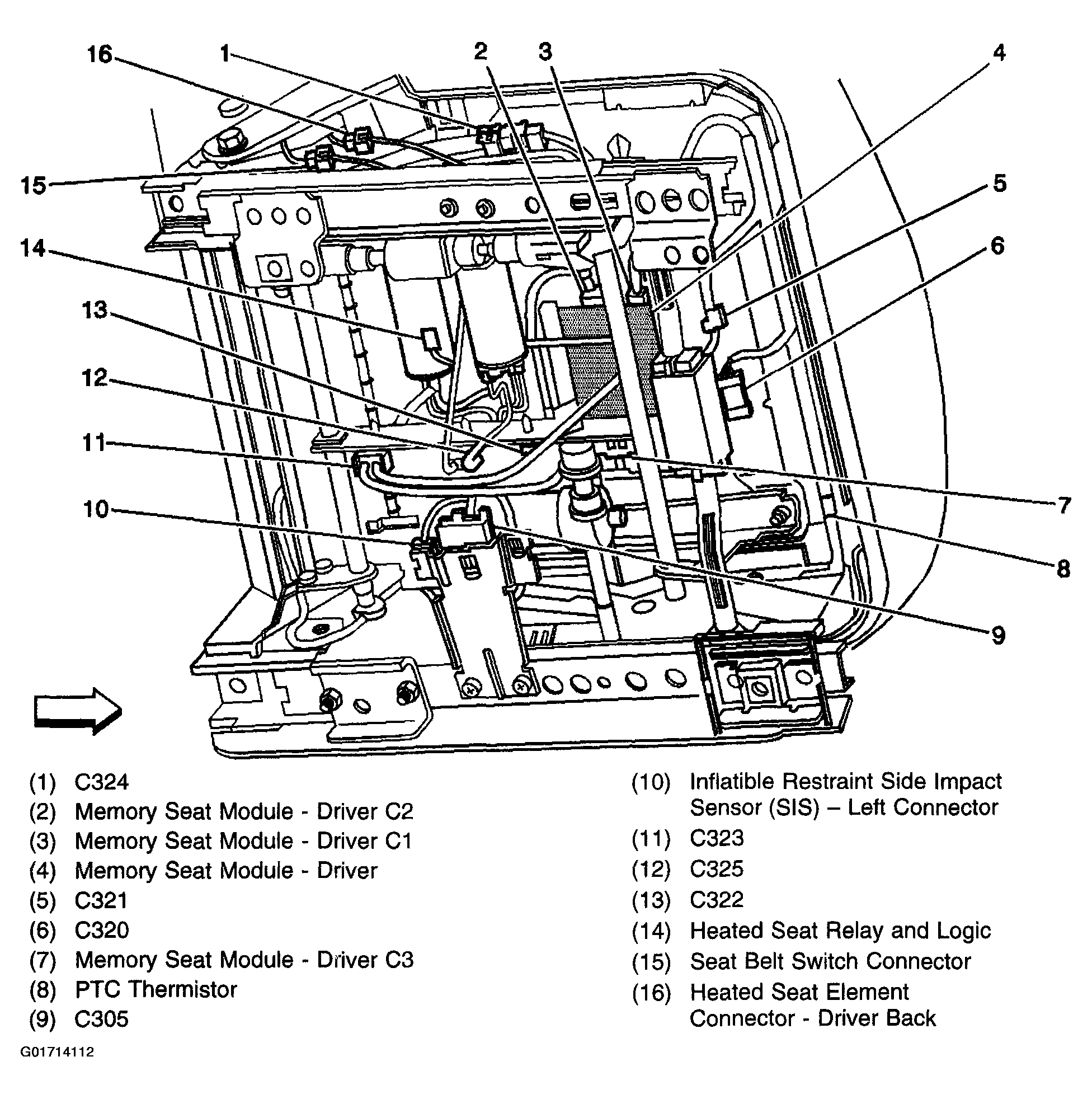

Fig 4: Identifying Driver Seat Electrical Components - Luxury Full Feature Seat (1 Of 2)
G01714112Courtesy of GENERAL MOTORS CORP.

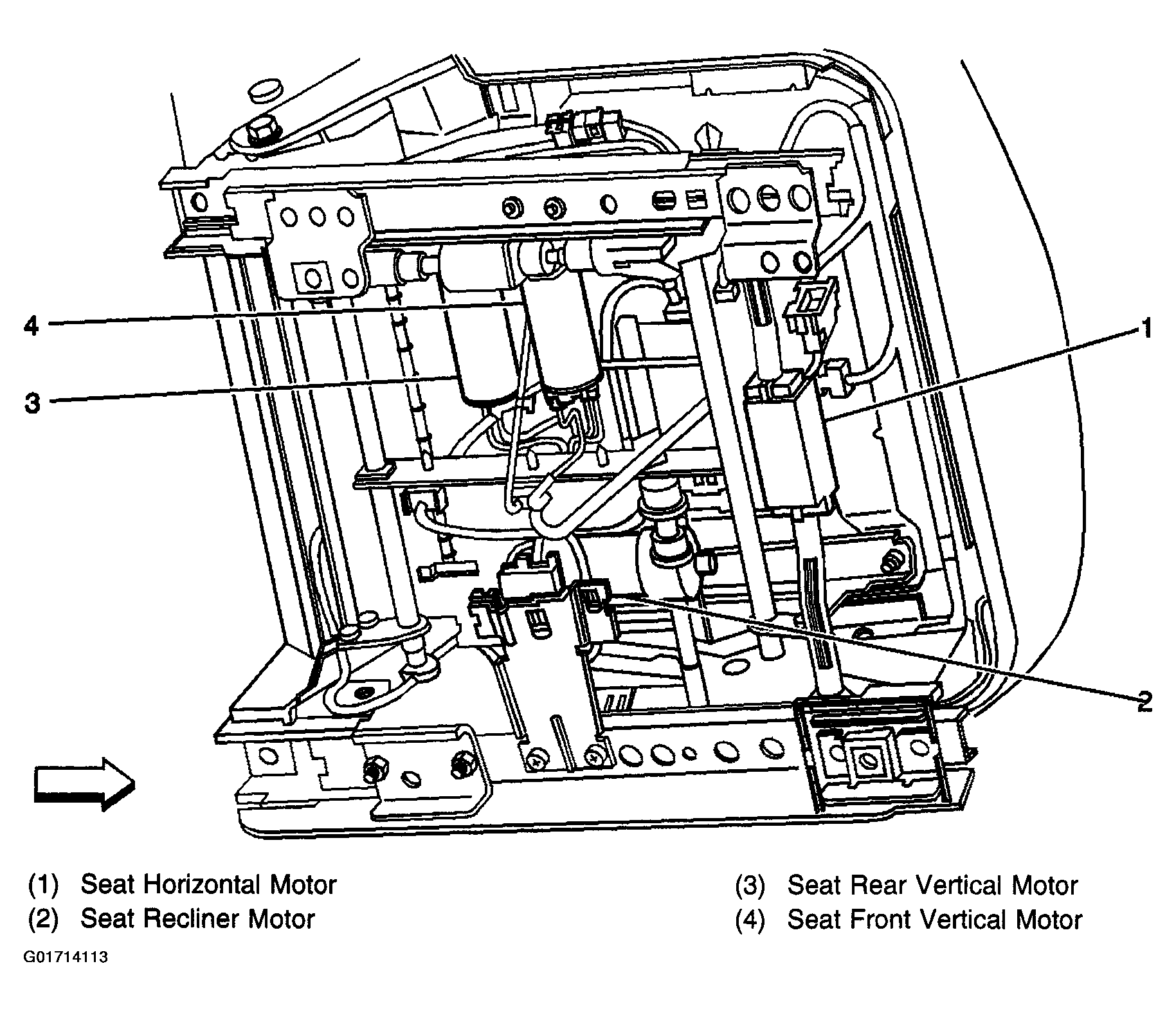

Fig 5: Identifying Driver Seat Electrical Components - Luxury Full Feature Seat (2 Of 2)
G01714113Courtesy of GENERAL MOTORS CORP.
