Front Toe Adjustment

  1. Loosen the jam nut on the tie rod (2).
  2. Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .

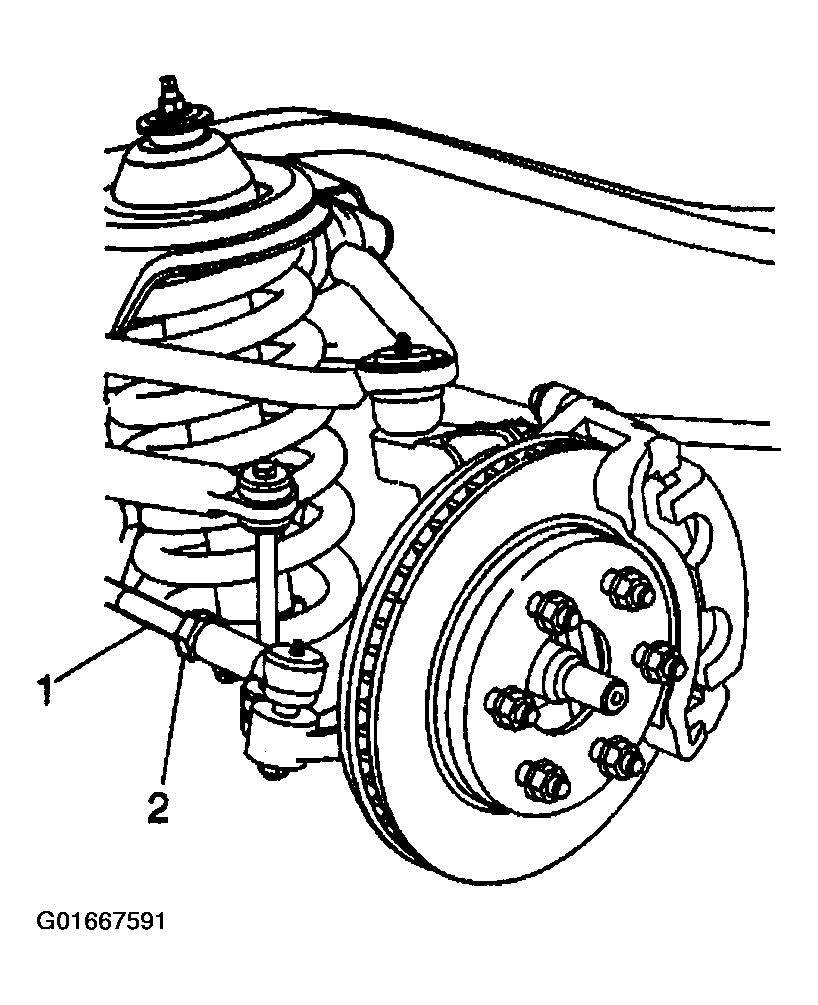

    3. Fig 1: Inner Tie Rod & Jam Nut
    G01667591Courtesy of GENERAL MOTORS CORP.
  3. Tighten the jam nut on the tie rod. Tighten the tie rod jam to 68 N.m (50 ft lbs).
  4. Check the toe setting after tightening.
  5. Re-adjust the toe setting if necessary.
