Removal Procedure

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Important: Remove the SIR coil from the steering shaft and let the SIR coil hang freely.

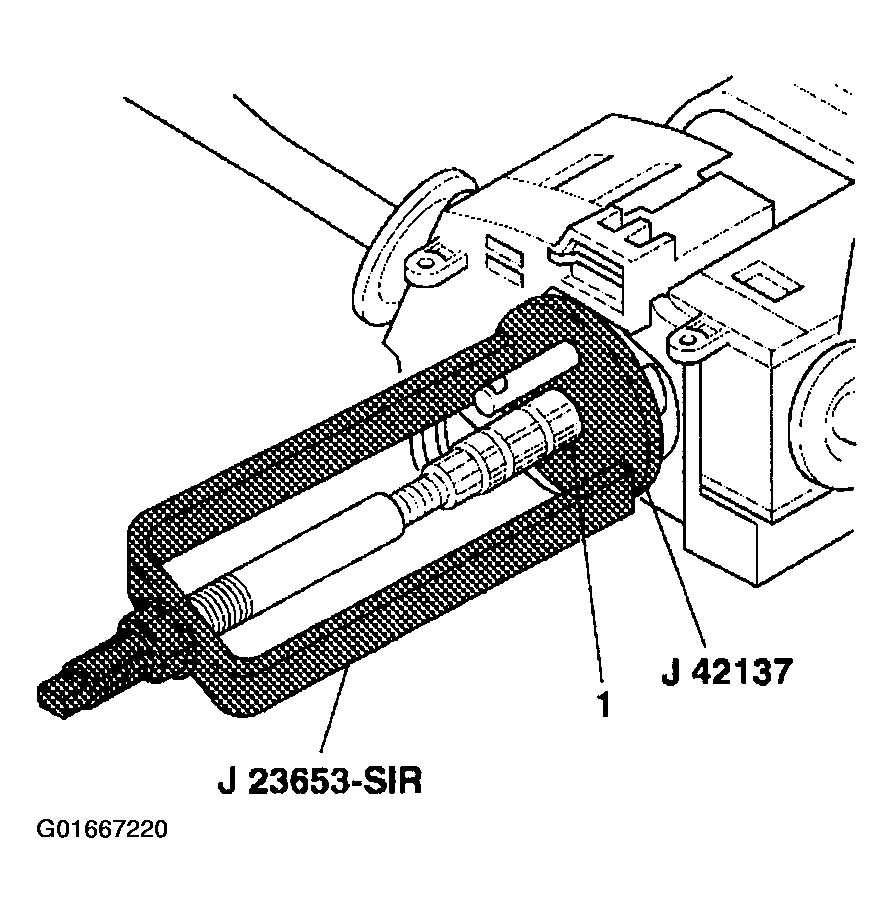

Fig 1: Steering Column Lock Plate Compressor
Courtesy of GENERAL MOTORS CORP.
Remove the SIR coil. Refer to SIR COIL ASSEMBLY .
Install the J 23653-SIR and J 42137 to the steering shaft and compress the shaft lock shield.
Remove the lock shield retainer from the steering column shaft.
Remove the J 23653-SIR and J 42137 from the steering shaft.
Remove the following parts from the steering shaft:
1. 6.1. The shaft lock shield (4)
2. 6.2. The turn signal cancel cam (3)
Rotate the steering column lock cylinder to the OFF-LOCK position.

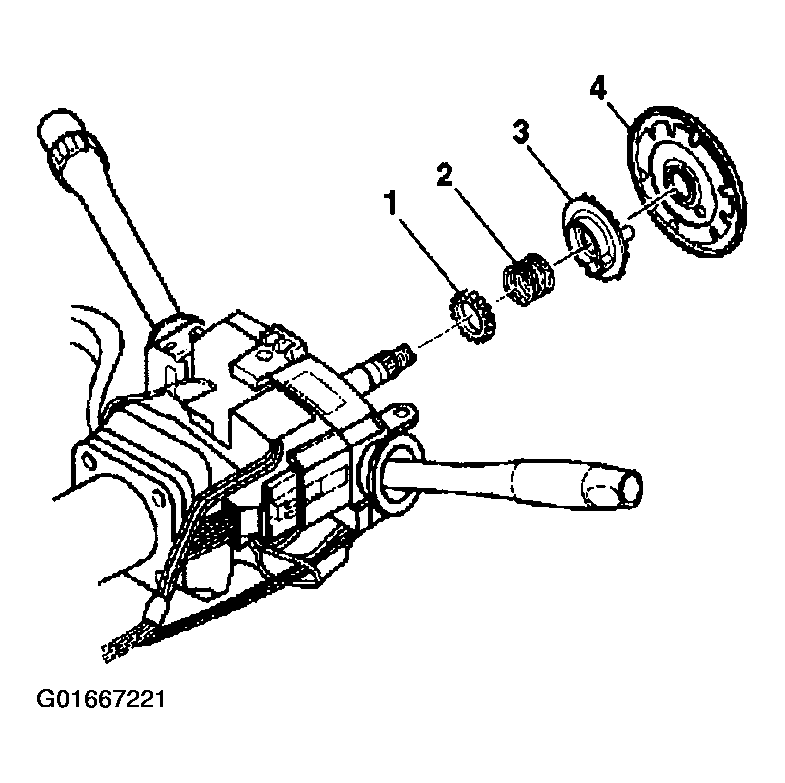

Fig 2: Steering Shaft Lock Shield & Turn Signal Cancel Cam
Courtesy of GENERAL MOTORS CORP.
Insert a small screwdriver into the slot on the electronic lock module and push down on the park lock cable locking tab. Remove park lock cable (1) from the electronic lock module.

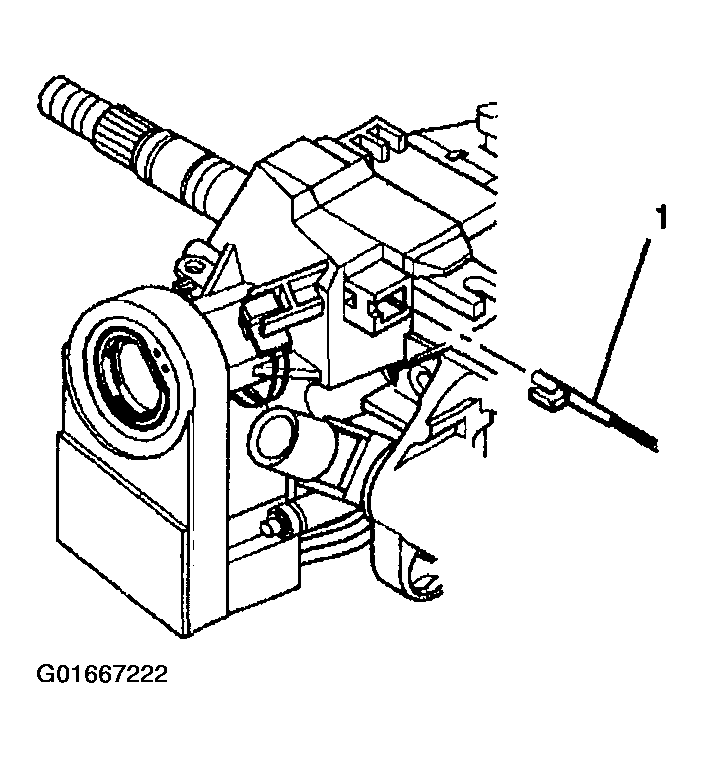

Fig 3: Electronic Lock Module
Courtesy of GENERAL MOTORS CORP.
Rotate the key alarm switch connector from the electronic lock module.
Disconnect the Passlock electrical connector from the electronic lock module.

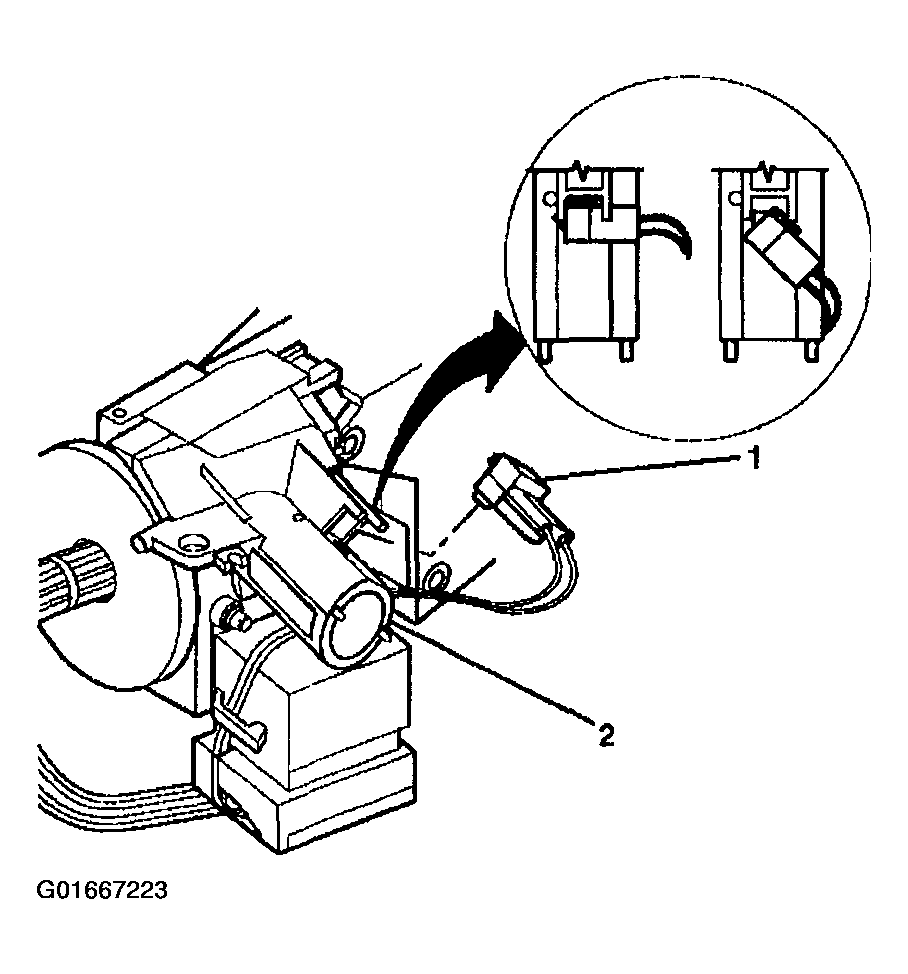

Fig 4: Passlock Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
Disconnect the ignition switch (2) from the electronic lock module using the J 42759.
Remove the ignition switch (2) from the electronic lock module (2).
Let the ignition switch (2) hang freely.

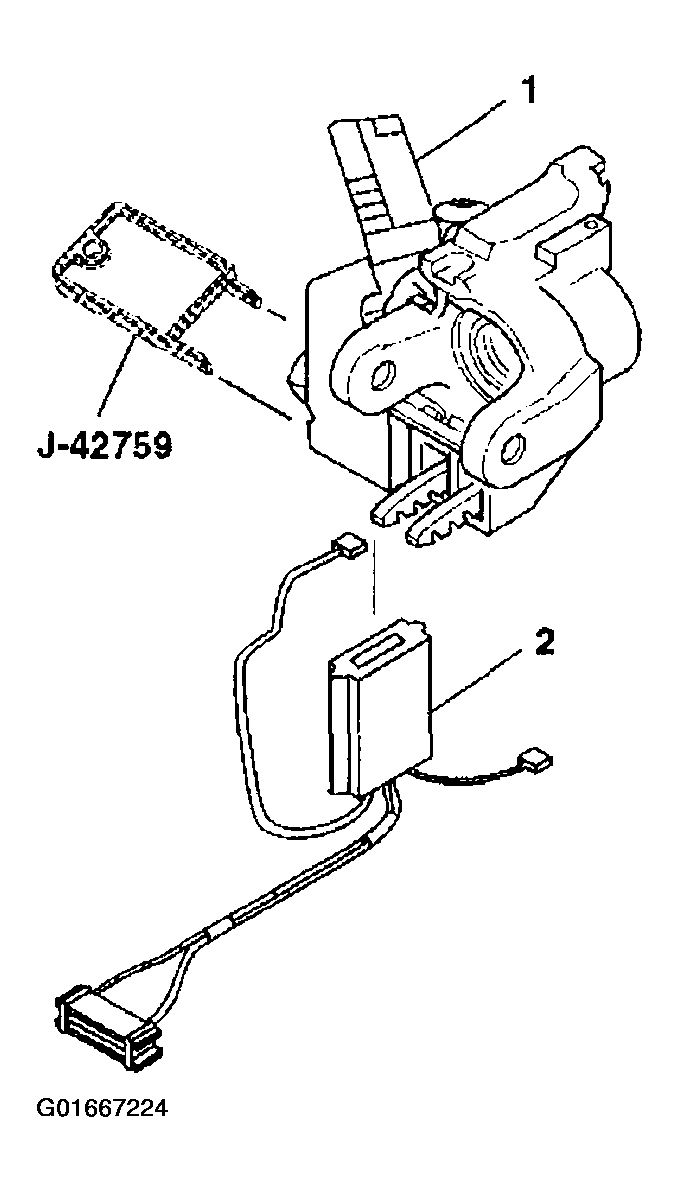

Fig 5: Ignition Switch
Courtesy of GENERAL MOTORS CORP.
Remove the electronic lock module (1) mounting screws (2).
Remove the electronic lock module (1) from the steering column housing.

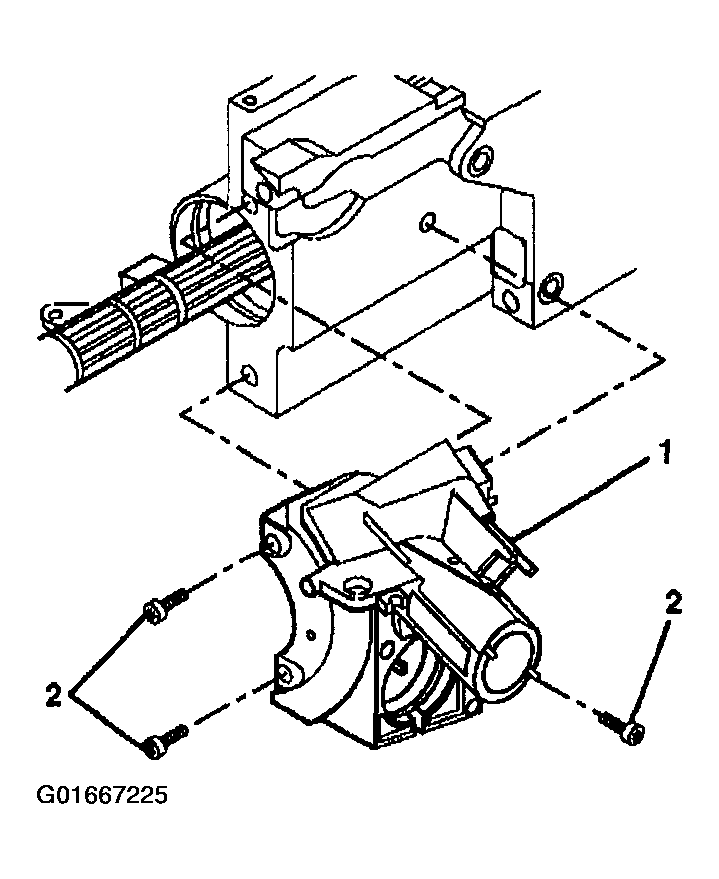

Fig 6: Electronic Lock Module
Courtesy of GENERAL MOTORS CORP.
