Cooling System Component Views

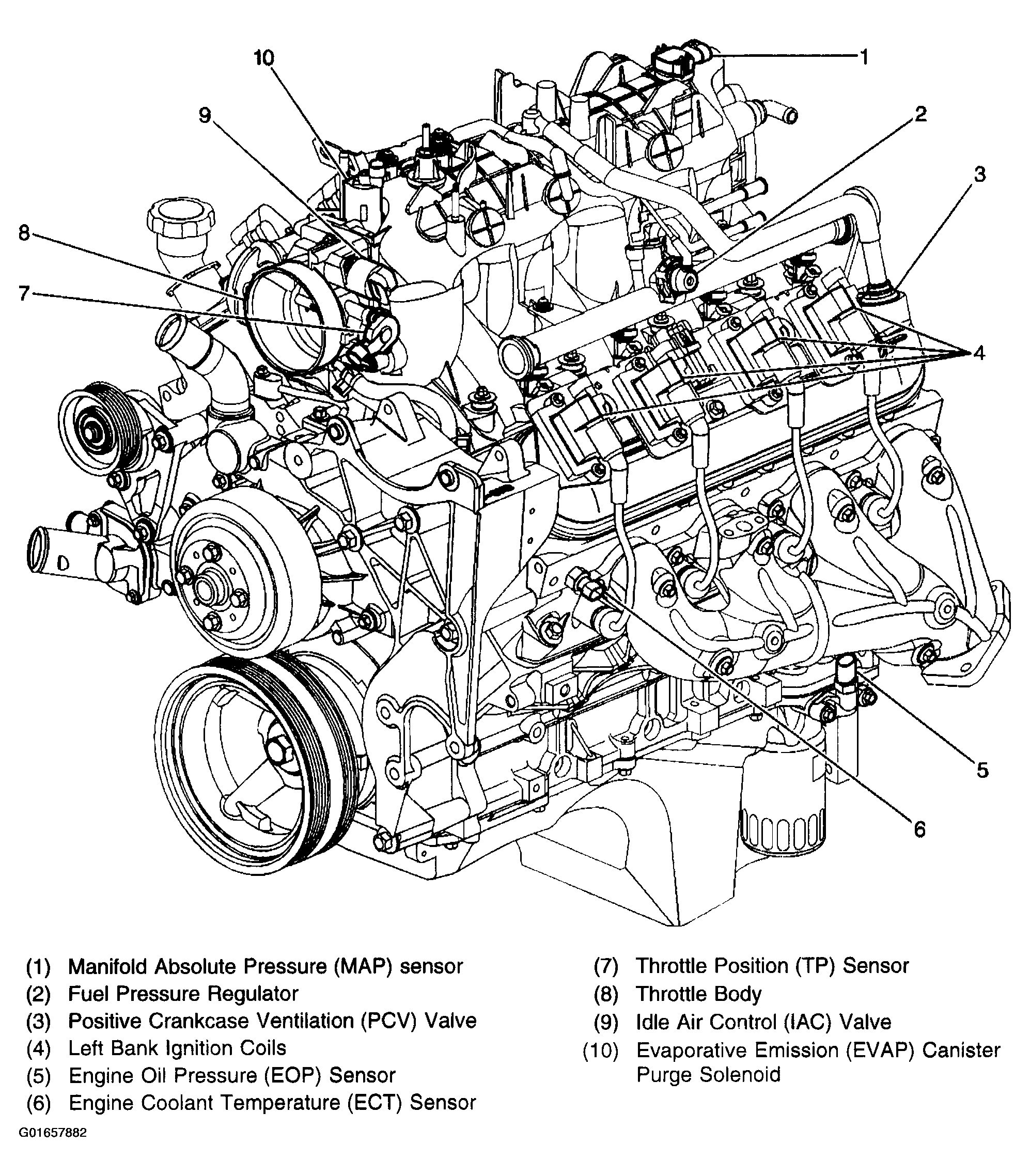

Fig 1: Full Engine View Left Side - 4.8L, 5.3L & 6.0L
G01657882Courtesy of GENERAL MOTORS CORP.

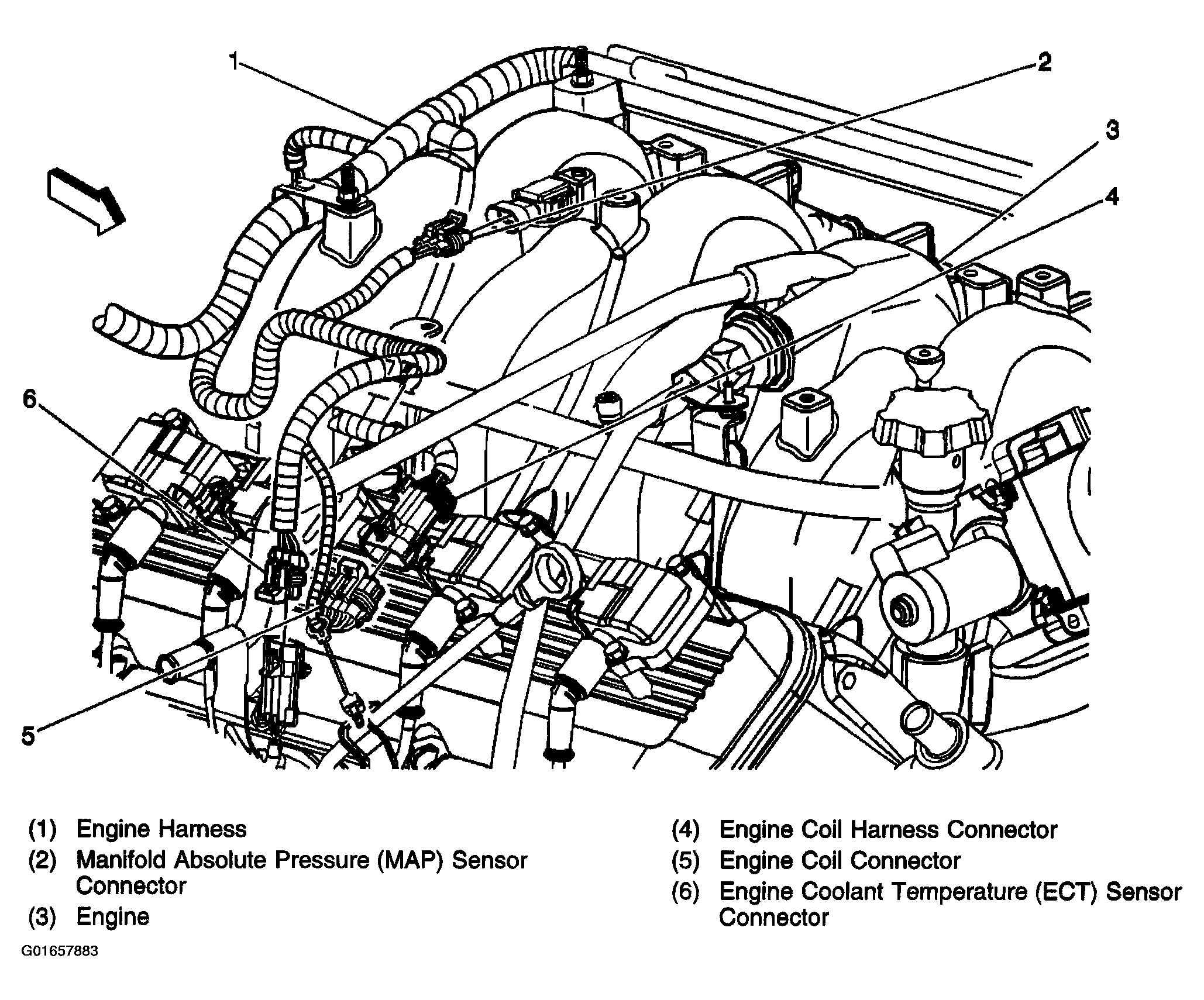

Fig 2: Engine View - Upper Right - 8.1L
G01657883Courtesy of GENERAL MOTORS CORP.

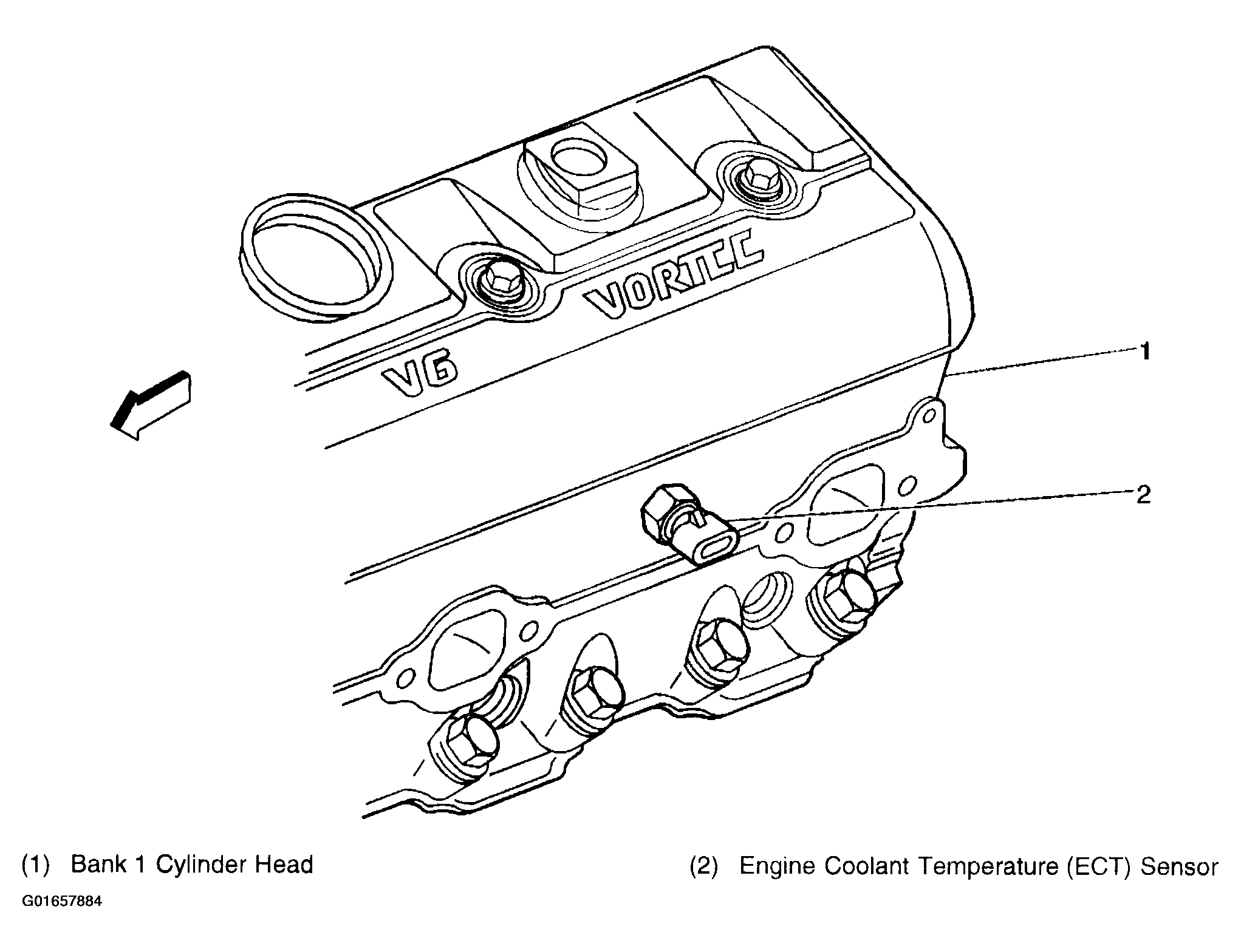

Fig 3: Locating Engine Coolant Temperature (ECT) Sensor - 4.3L
G01657884Courtesy of GENERAL MOTORS CORP.
