Installation Procedure

  1. Install the battery insulator, if necessary.
  2. Install the battery.
    NOTE: Refer to Fastener Notices in CAUTIONS & NOTICES .

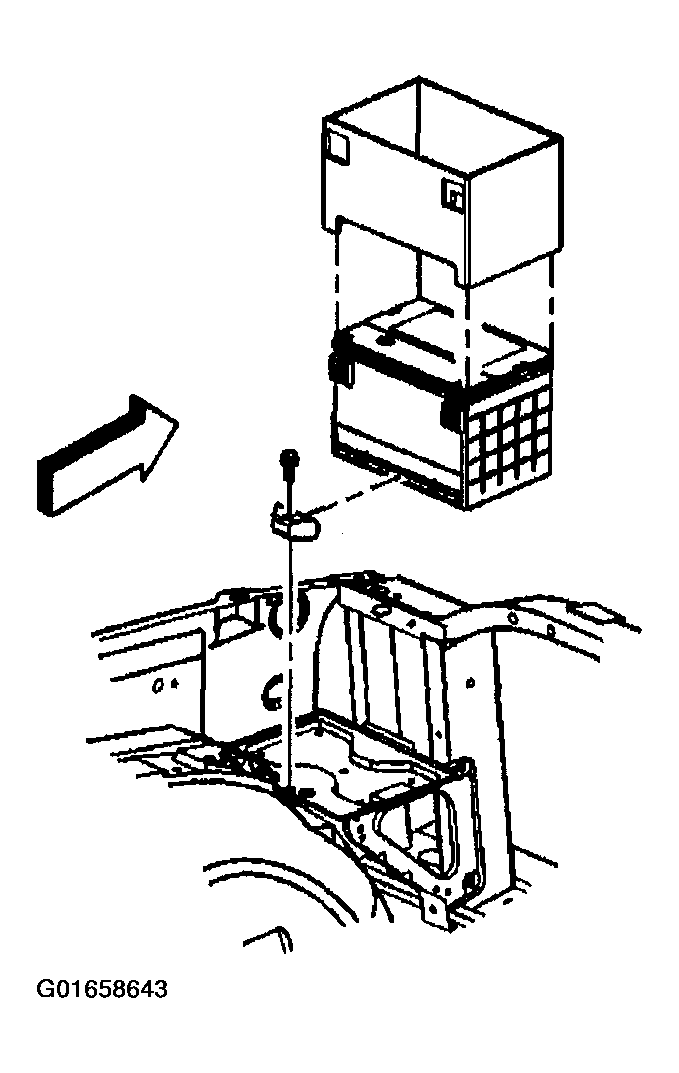

    3. Fig 1: Installing Battery Hold Down Retainer And Bolt
    G01658643Courtesy of GENERAL MOTORS CORP.
  3. Install the battery hold down retainer and bolt.

    Tighten

    Tighten the battery hold down retainer bolt to 25 N.m (18 lb ft).

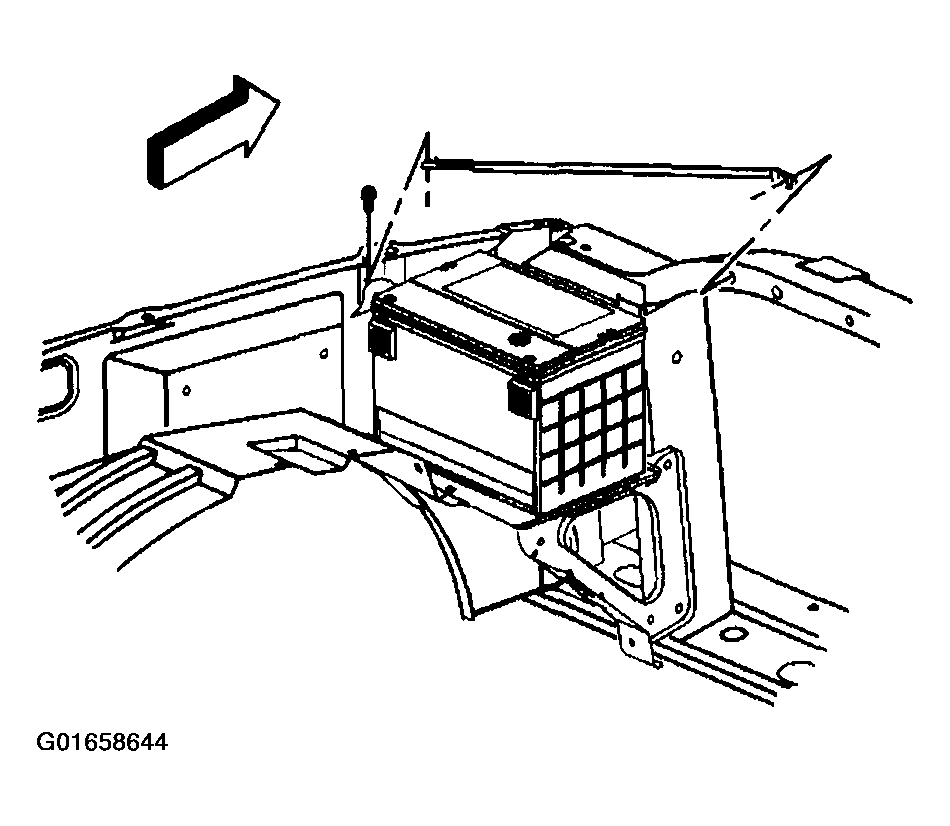

    4. Fig 2: Installing Front End Diagonal Brace And Bolts
    G01658644Courtesy of GENERAL MOTORS CORP.
  4. Install the front end diagonal brace and bolts.

    Tighten

    Tighten the front end diagonal brace bolts to 9 N.m (80 lb in).

  5. Connect the positive battery cable.

    Tighten

    Tighten the positive battery cable bolt to 17 N.m (13 lb ft).

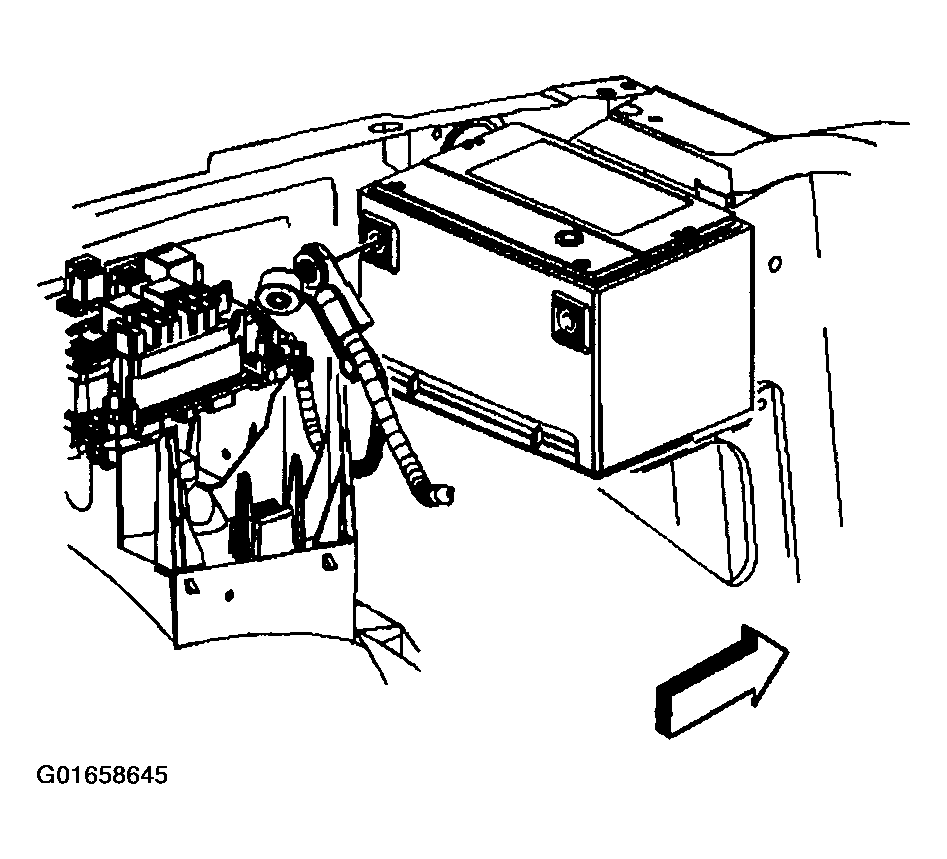

    6. Fig 3: Snapping Positive Battery Cable Cap Closed
    G01658645Courtesy of GENERAL MOTORS CORP.
  6. Snap the positive battery cable cap closed.

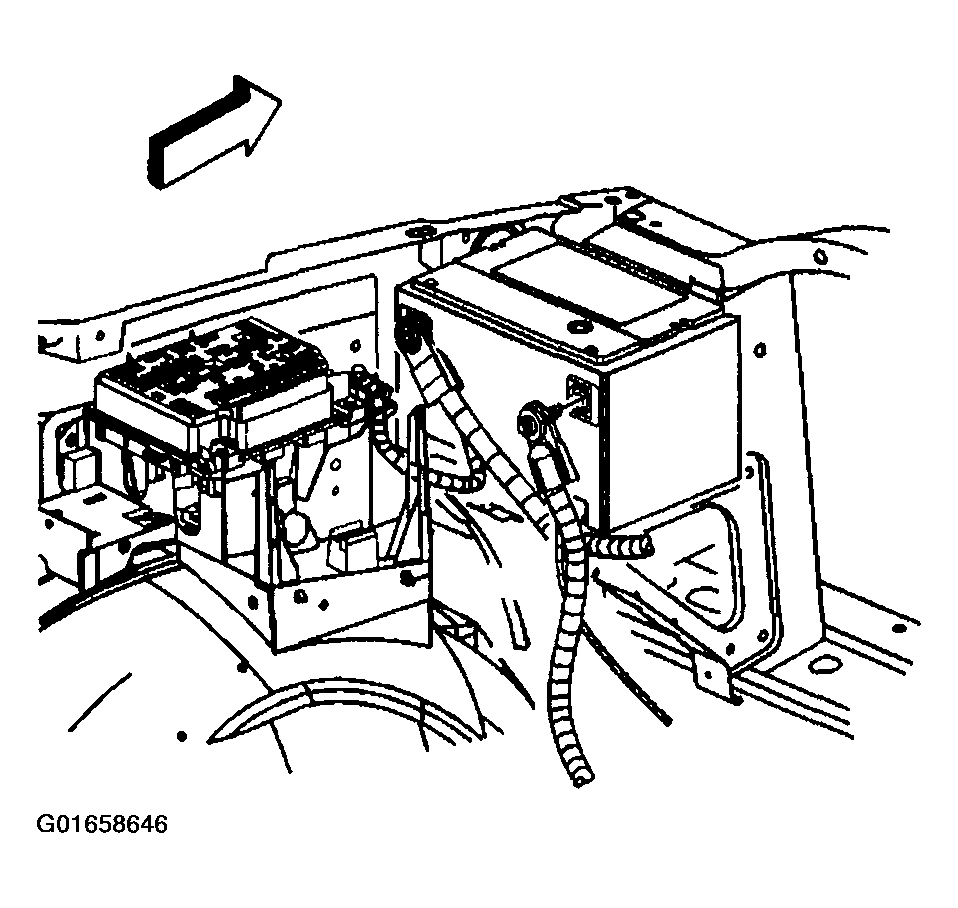

    7. Fig 4: Connecting Negative Battery Cable
    G01658646Courtesy of GENERAL MOTORS CORP.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery)  .
