Engine Electrical Connector End Views

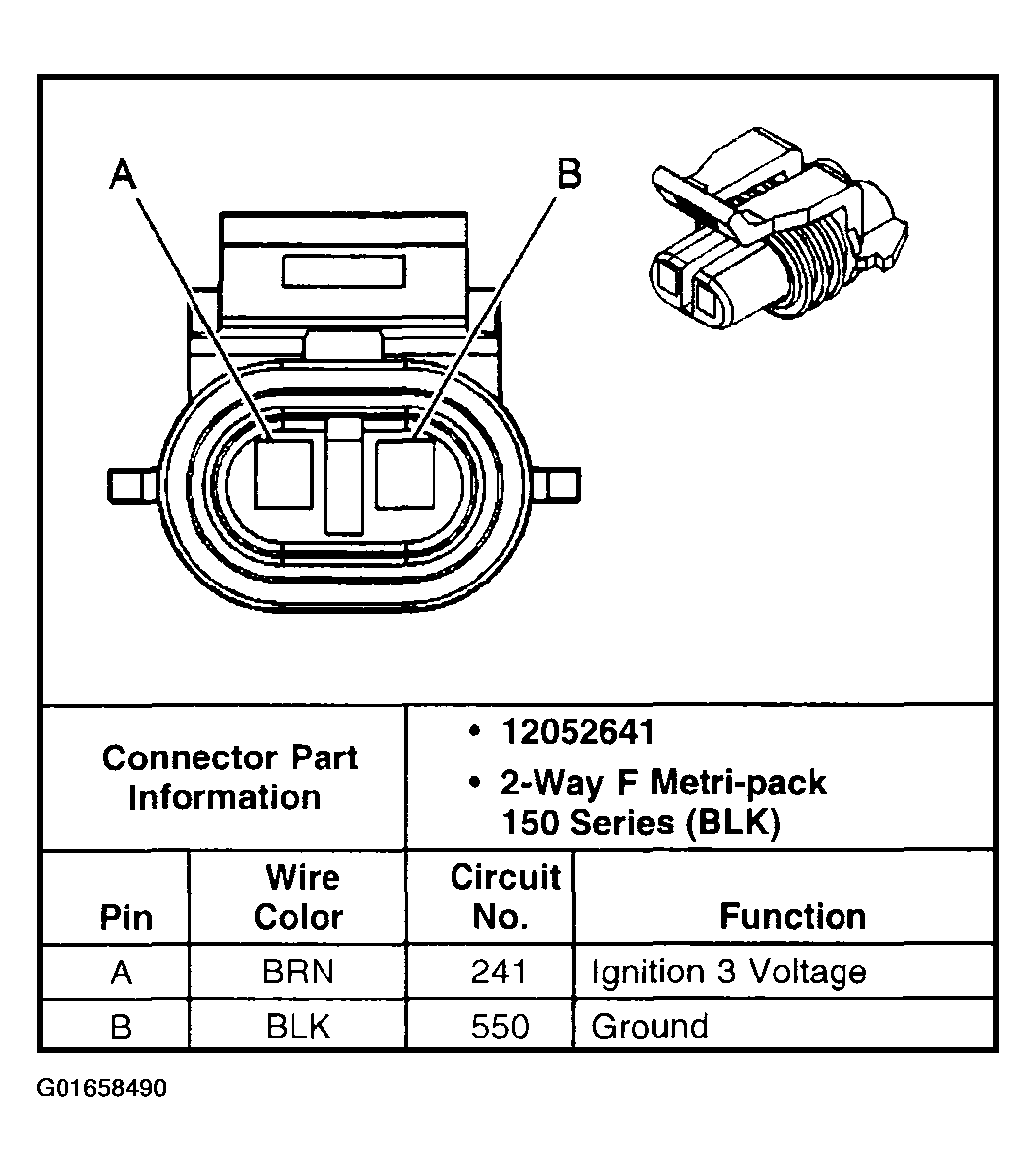

Fig 1: Auxiliary Battery Relay

G01658490

Courtesy of GENERAL MOTORS CORP.
