Vehicle Speed Sensor Assembly Connector End View

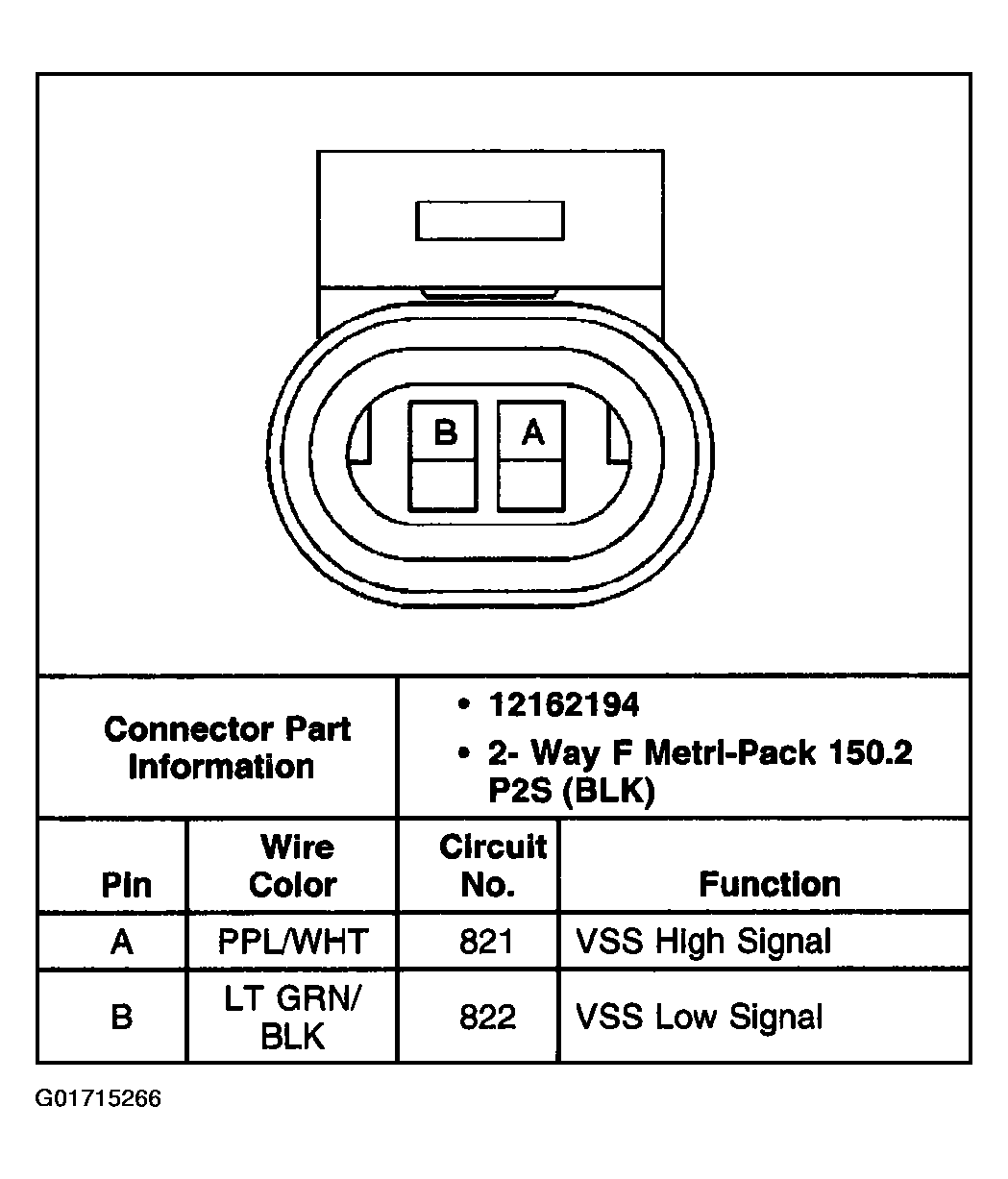

Fig 1: Vehicle Speed Sensor Assembly Connector End View
G01715266Courtesy of GENERAL MOTORS CORP.

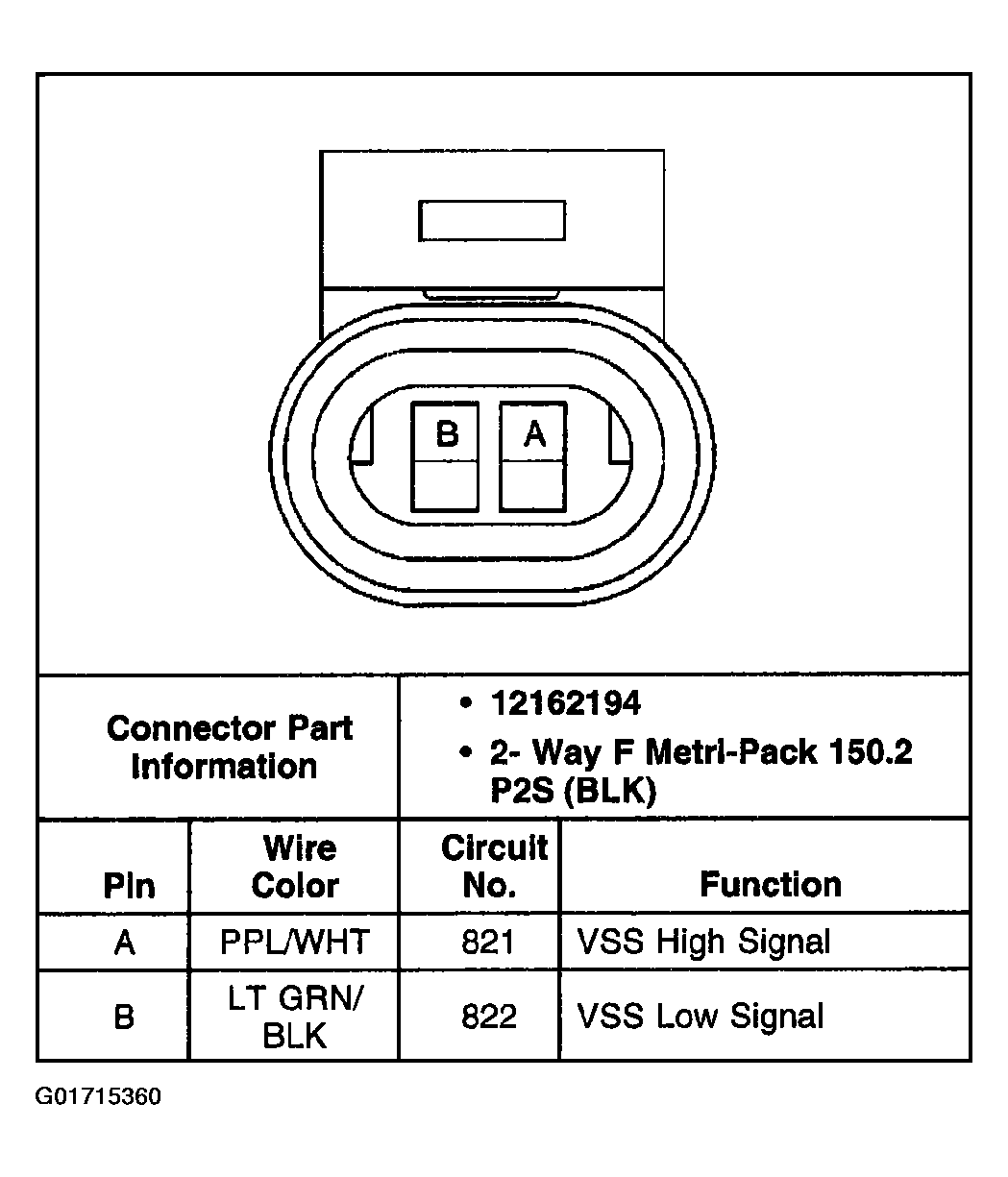

Fig 1: Vehicle Speed Sensor Assembly Connector End View
G01715360Courtesy of GENERAL MOTORS CORP.

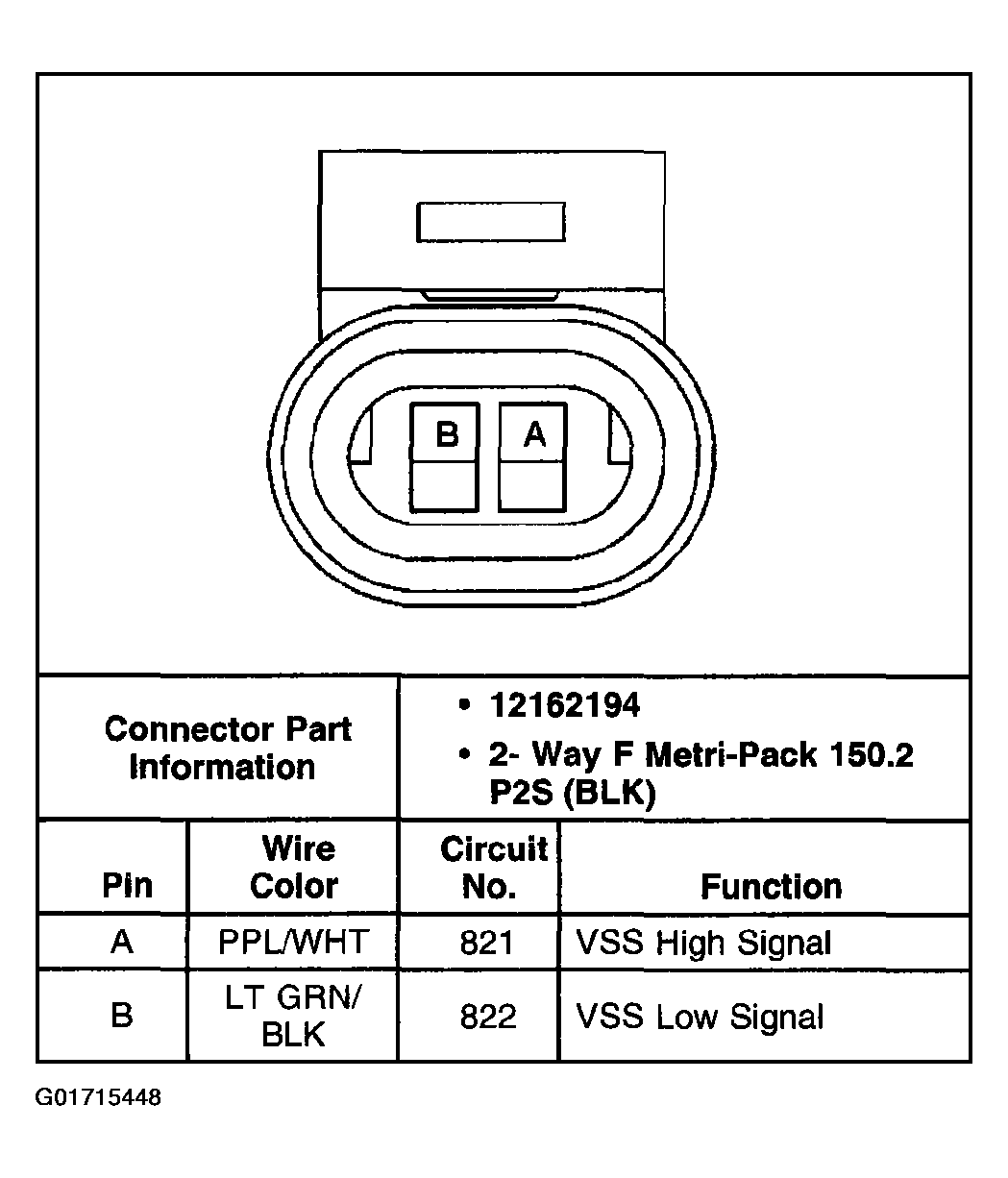

Fig 1: Vehicle Speed Sensor Assembly Connector End View
G01715448Courtesy of GENERAL MOTORS CORP.
