Output Speed Sensor Connector End View

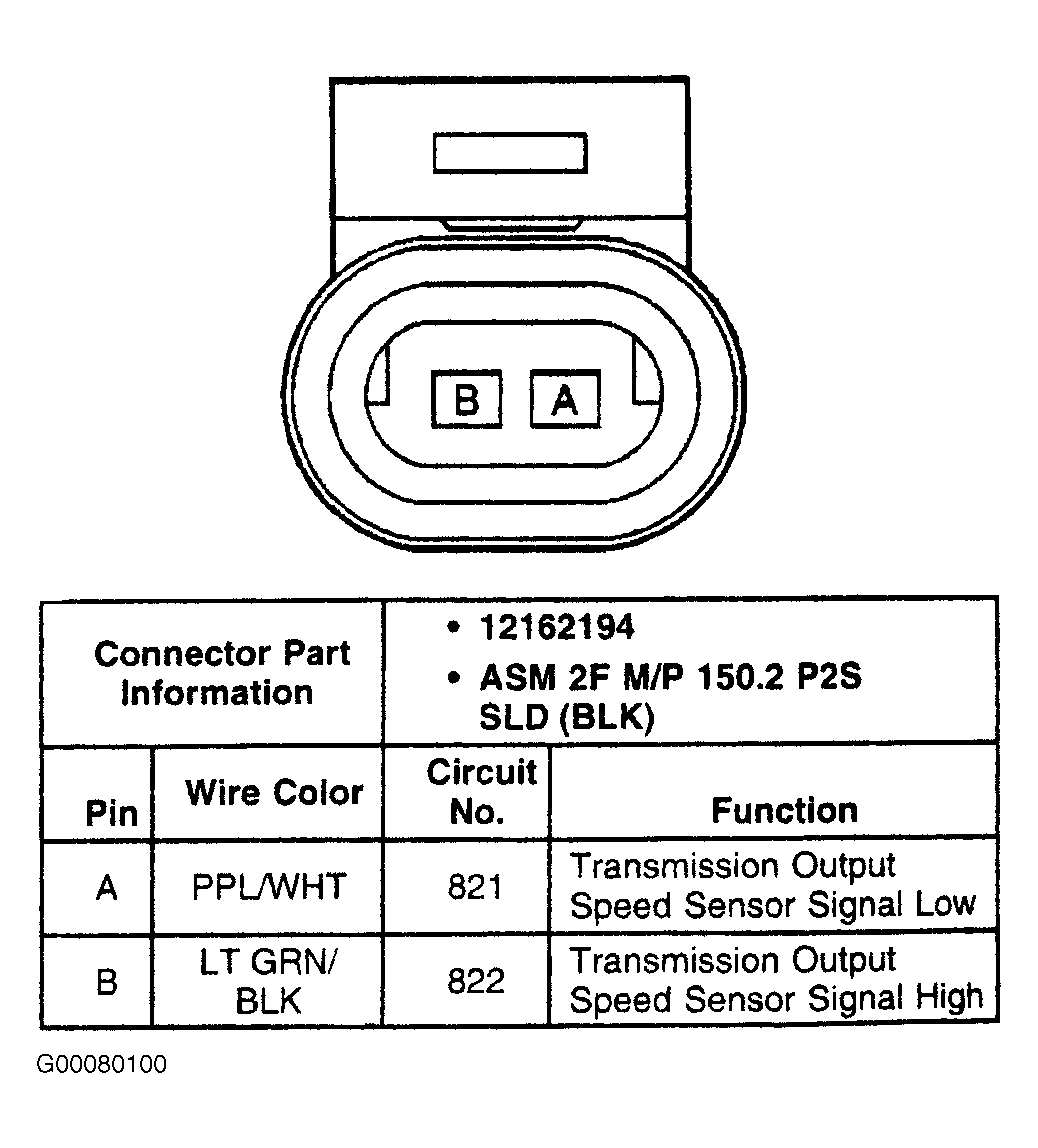

Fig 1: Output Speed Sensor Connector End View

G00080100

Courtesy of GENERAL MOTORS CORP.
