Memory Seat Module C2 Connector End View
Memory Seat Module C2 Connector End View

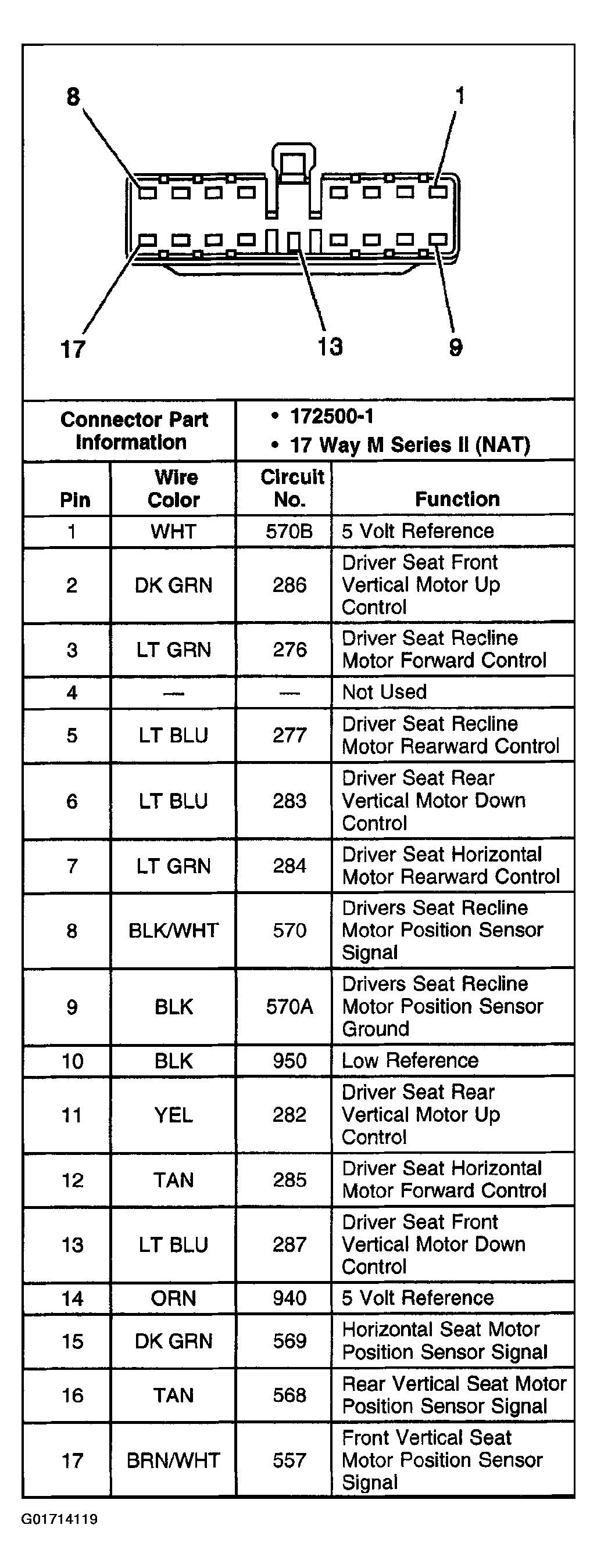

Fig 1: Memory Seat Module C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
