Lock-Off Relay Connector End View
Lock-Off Relay Connector End View

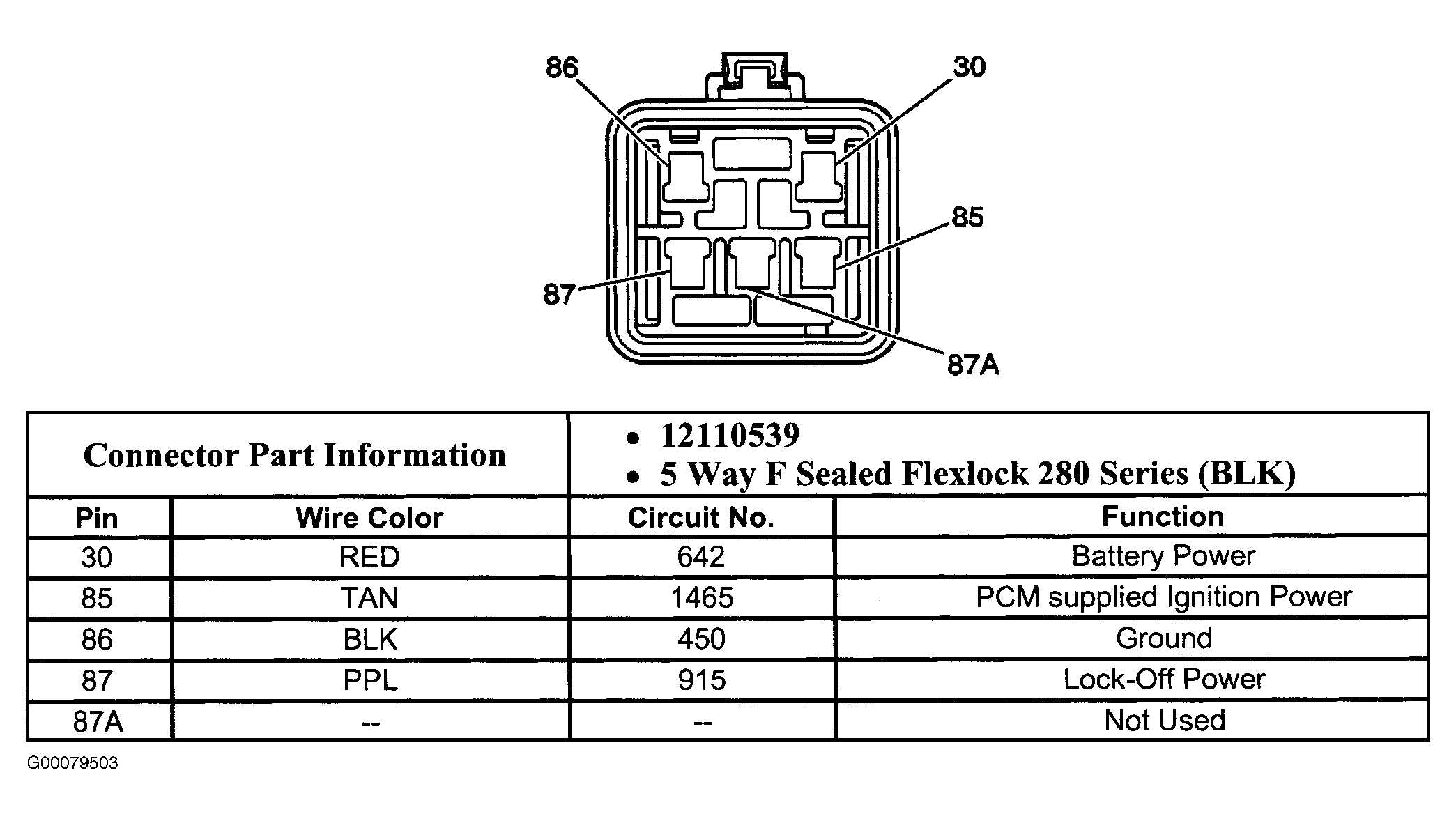

Fig 1: Lock-Off Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
