HVAC Control Module Connector End View (1 Of 2)

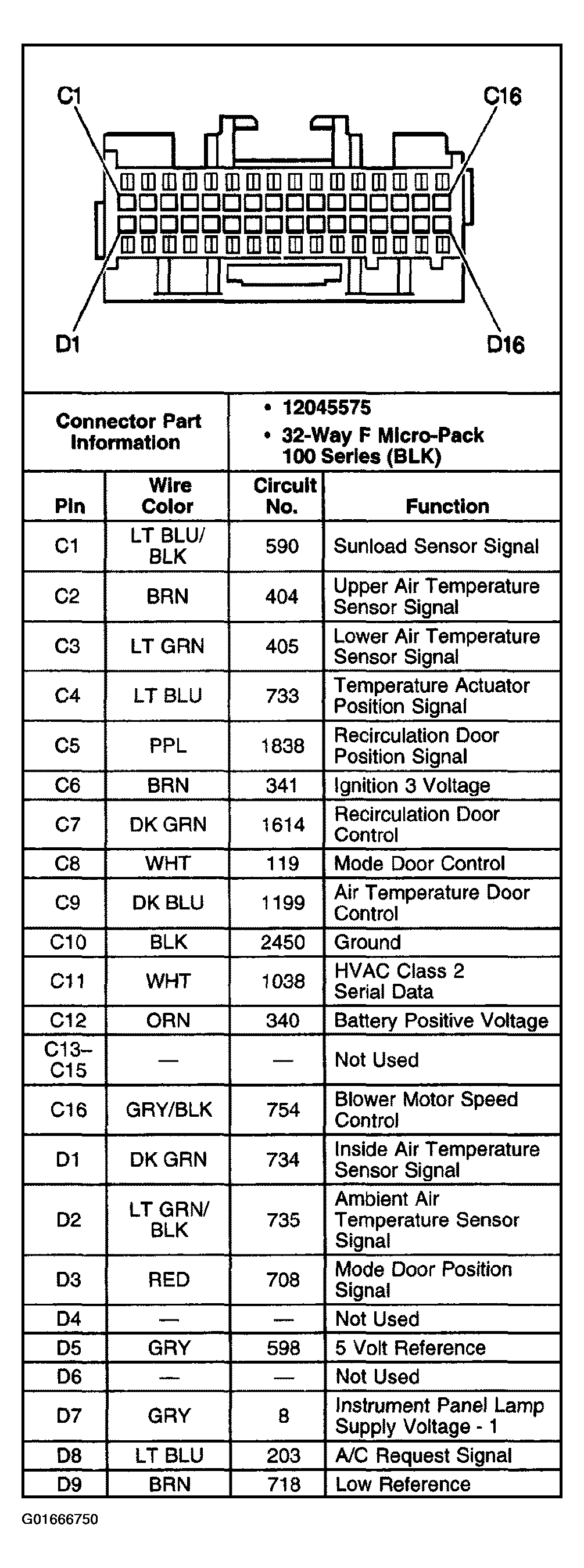

Fig 1: HVAC Control Module Connector End View (1 Of 2)

G01666750

Courtesy of GENERAL MOTORS CORP.
