Fuel Injection Control Module Connector End View C2

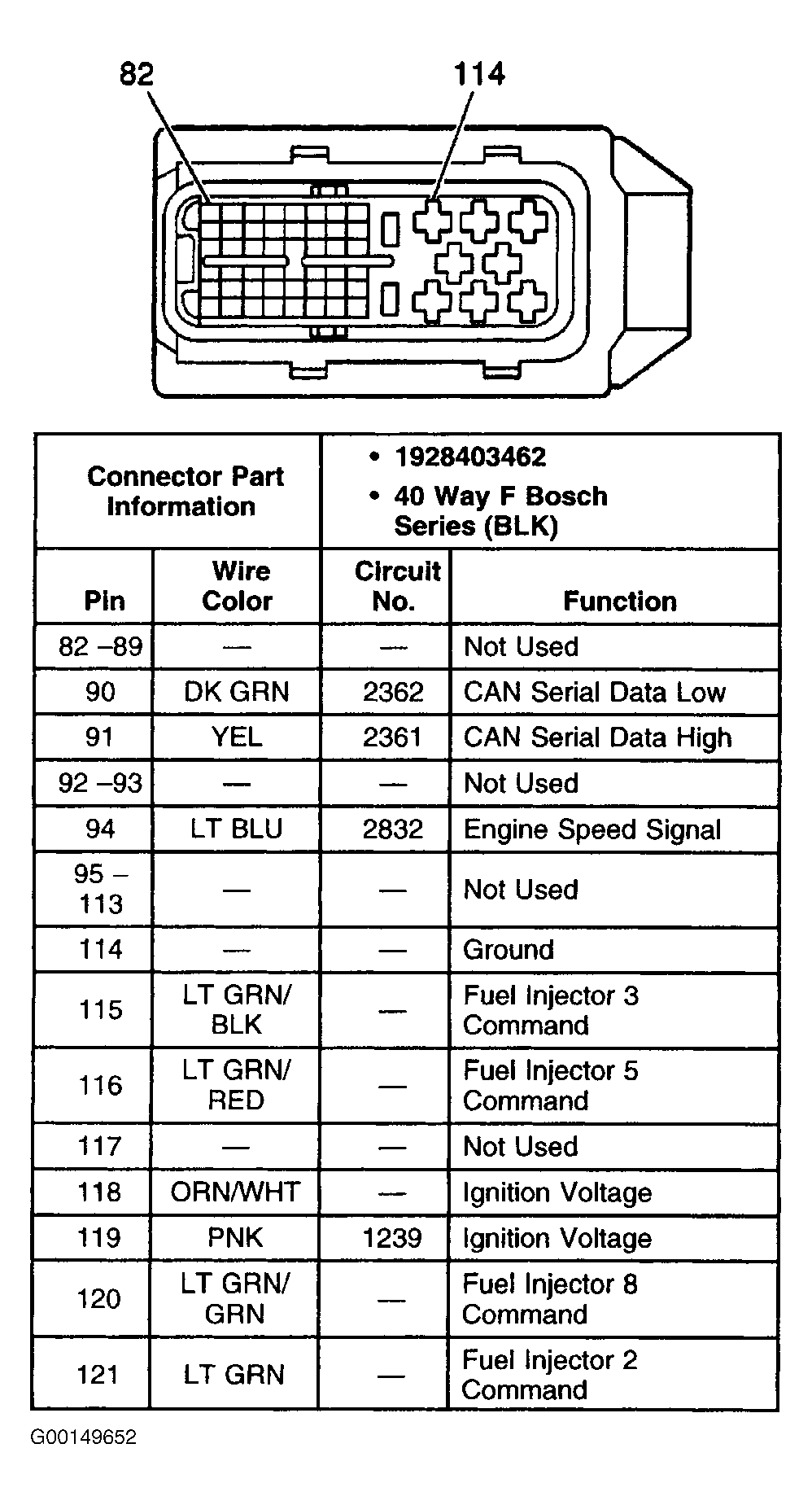

Fig 1: Fuel Injection Control Module Connector End View C2

G00149652

Courtesy of GENERAL MOTORS CORP.
