Fuel Injection Control Module Connector End View C1

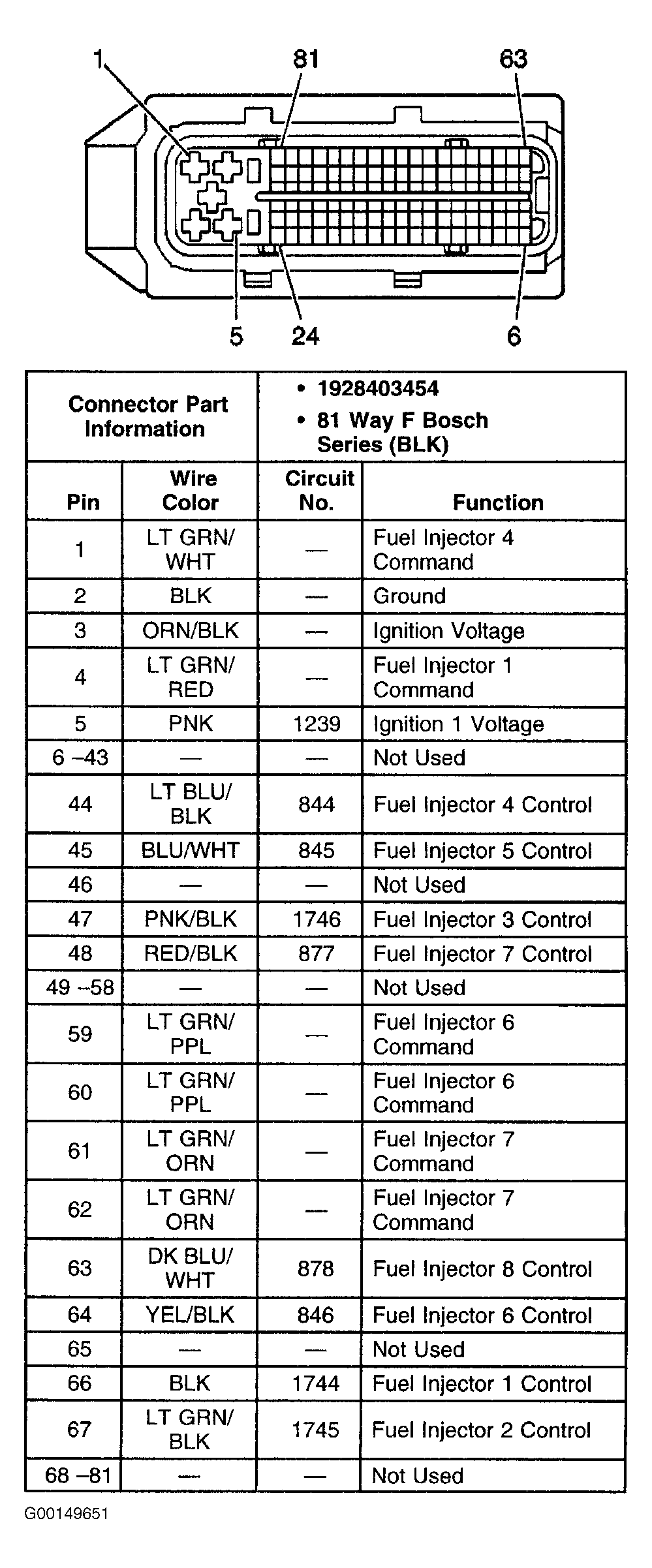

Fig 1: Fuel Injection Control Module Connector End View C1

G00149651

Courtesy of GENERAL MOTORS CORP.
