Home >> GMC >> 2002 >> Sierra 1500 HD, 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Engine Oil Level Switch Connector End View

Engine Oil Level Switch Connector End View

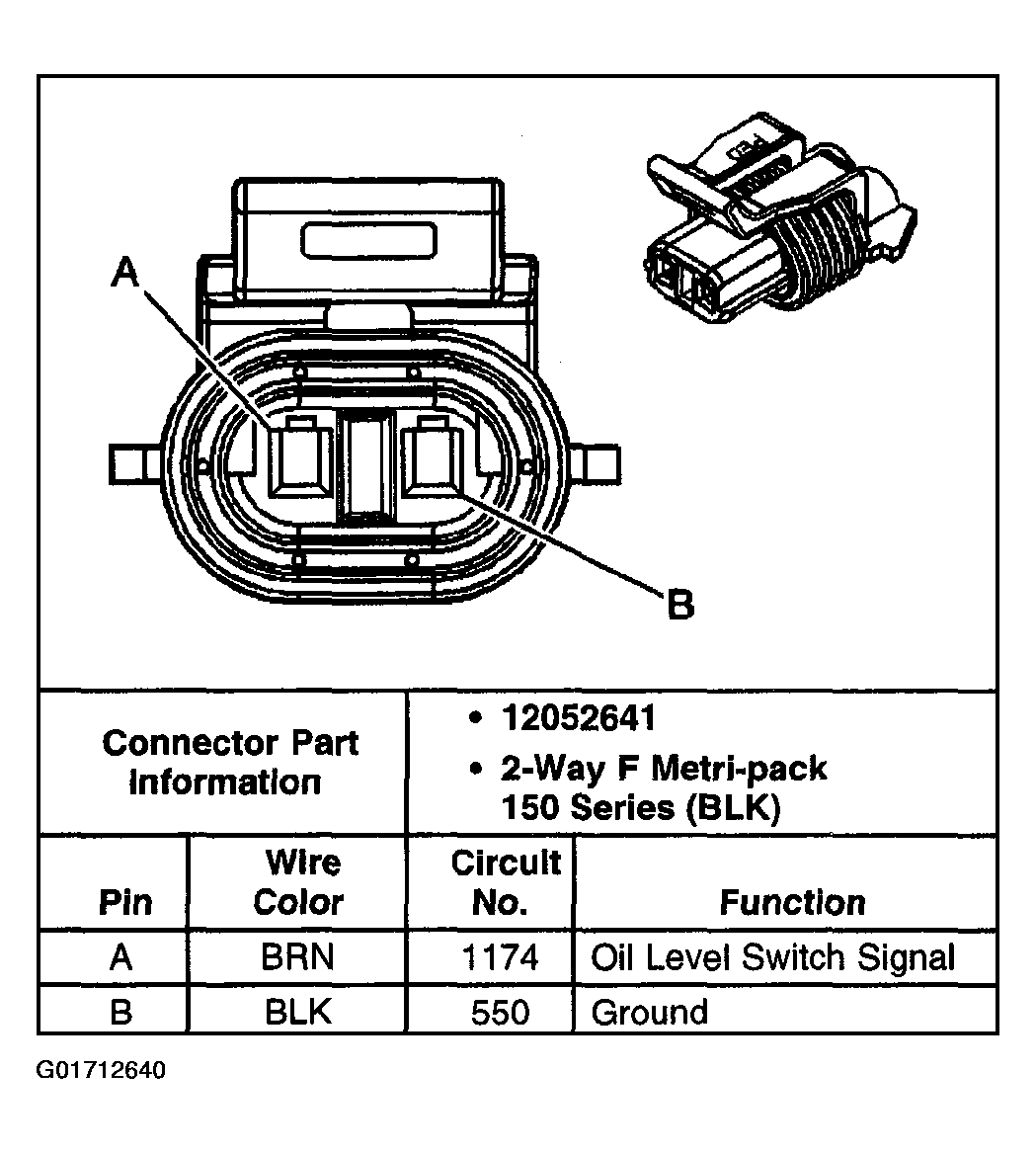

Fig 1: Engine Oil Level Switch Connector End View

G01712640

Courtesy of GENERAL MOTORS CORP.
