Engine Control Module Connector End View

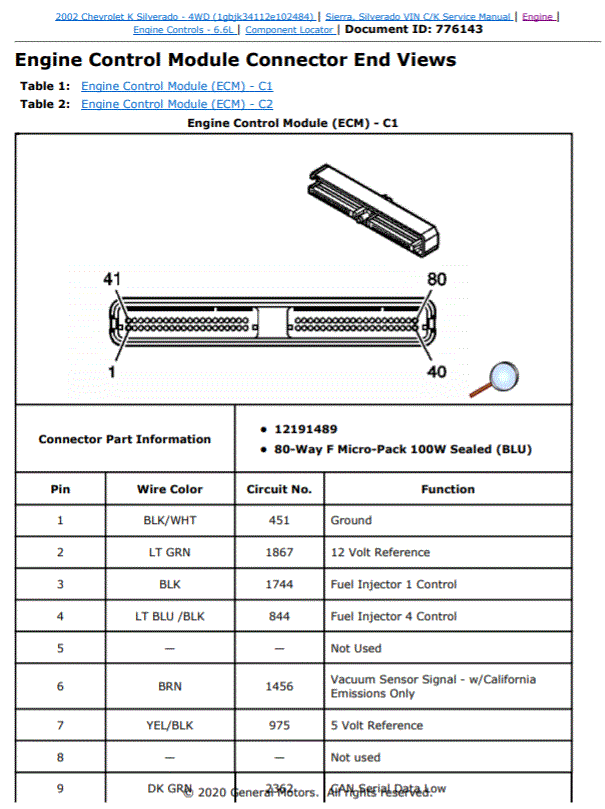

Fig 1: Engine Control Module Connector End View (1 of 7)

Courtesy of GENERAL MOTORS CORP.

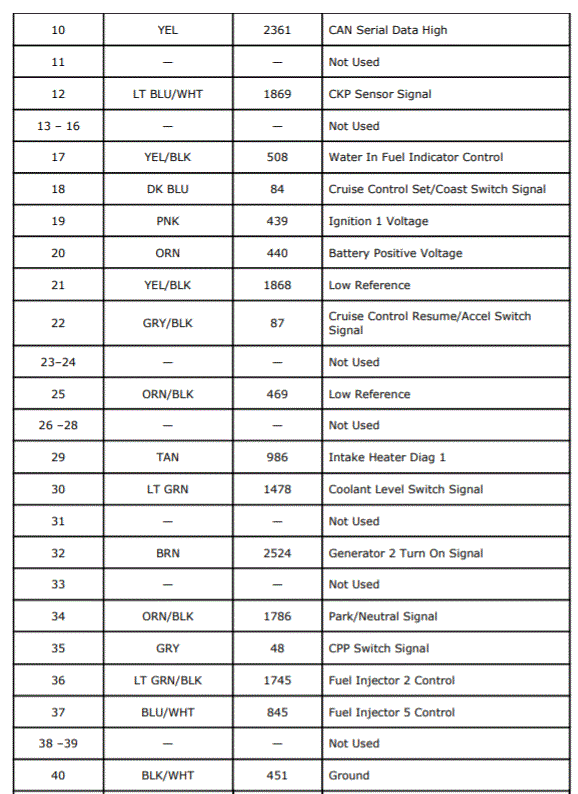

Fig 2: Engine Control Module Connector End View (2 of 7)

Courtesy of GENERAL MOTORS CORP.

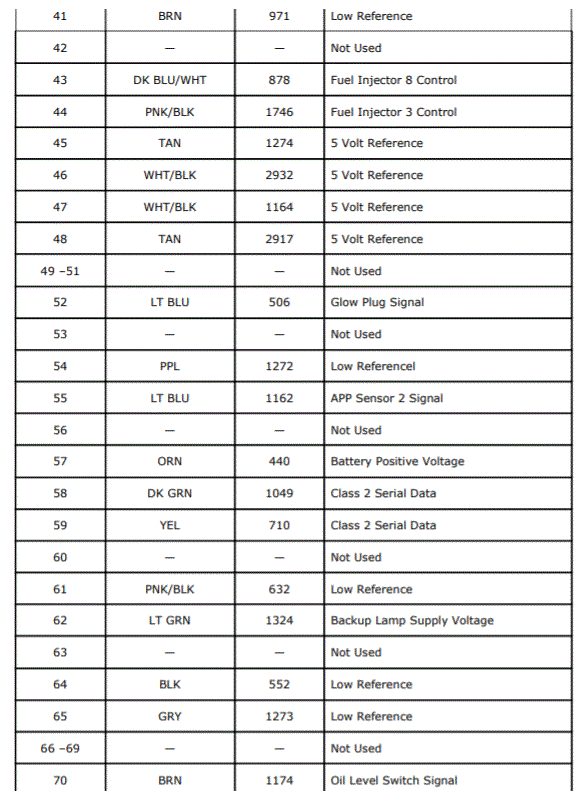

Fig 3: Engine Control Module Connector End View (3 of 7)

Courtesy of GENERAL MOTORS CORP.

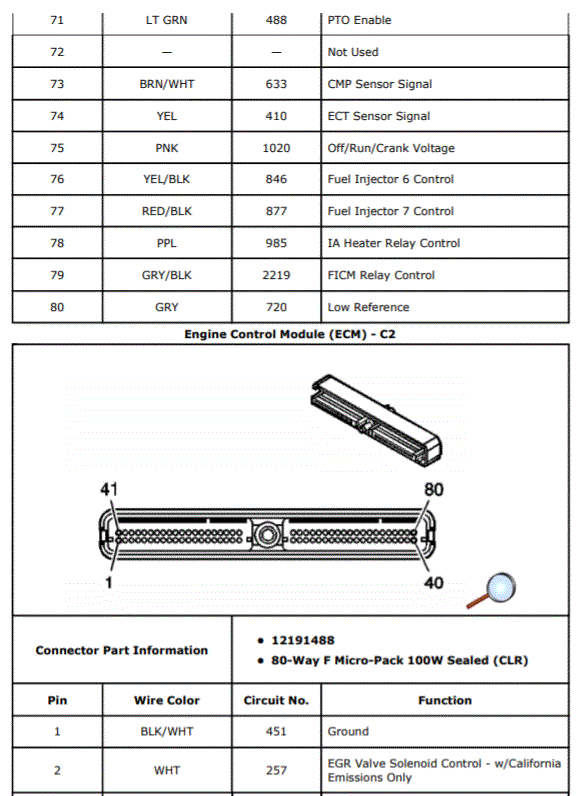

Fig 4: Engine Control Module Connector End View (4 of 7)

Courtesy of GENERAL MOTORS CORP.

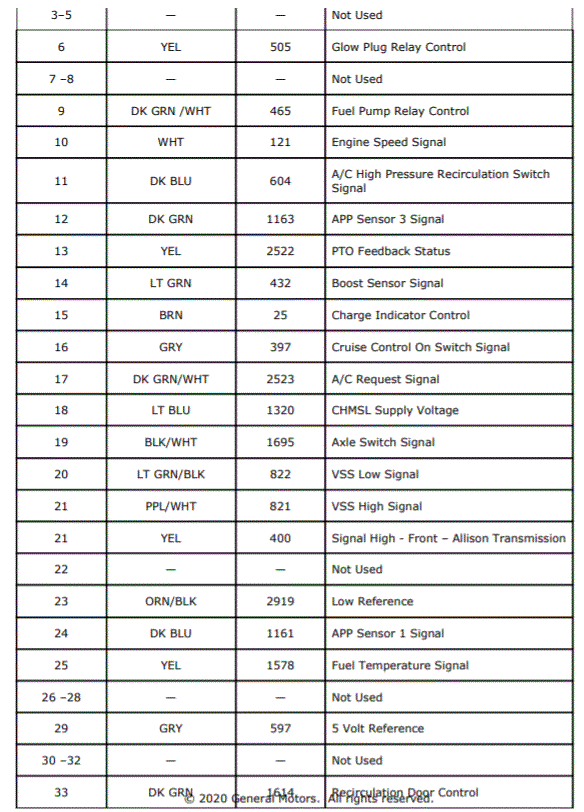

Fig 5: Engine Control Module Connector End View (5 of 7)

Courtesy of GENERAL MOTORS CORP.

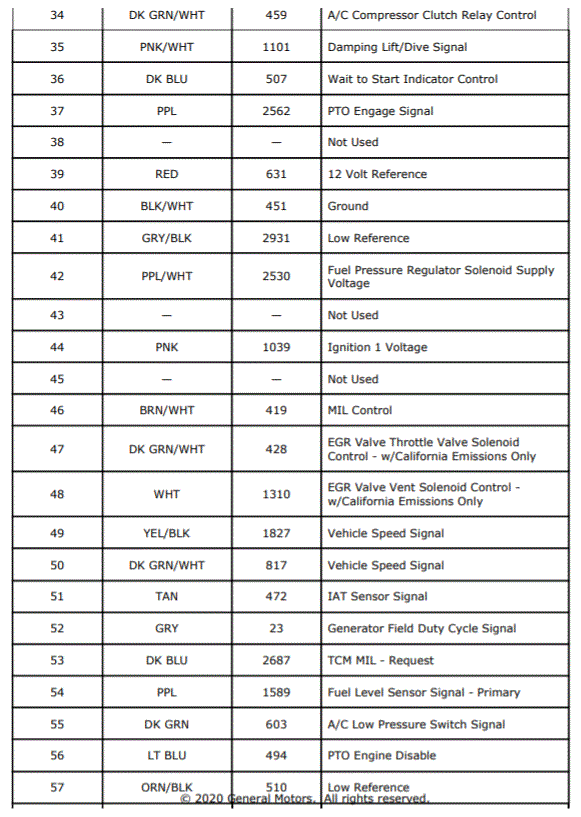

Fig 6: Engine Control Module Connector End View (6 of 7)

Courtesy of GENERAL MOTORS CORP.

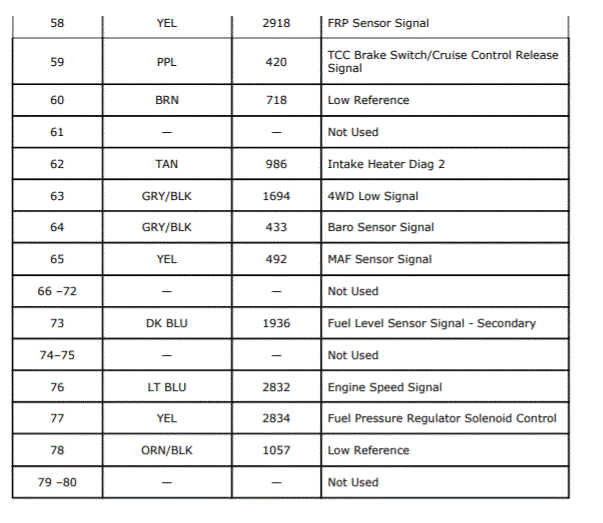

Fig 7: Engine Control Module Connector End View (7 of 7)

Courtesy of GENERAL MOTORS CORP.
