ECT Sensor Connector End View

Fig 1: ECT Sensor Connector End View
G00113359Courtesy of GENERAL MOTORS CORP.


Fig 1: ECT Sensor Connector End View
G00113359Courtesy of GENERAL MOTORS CORP.

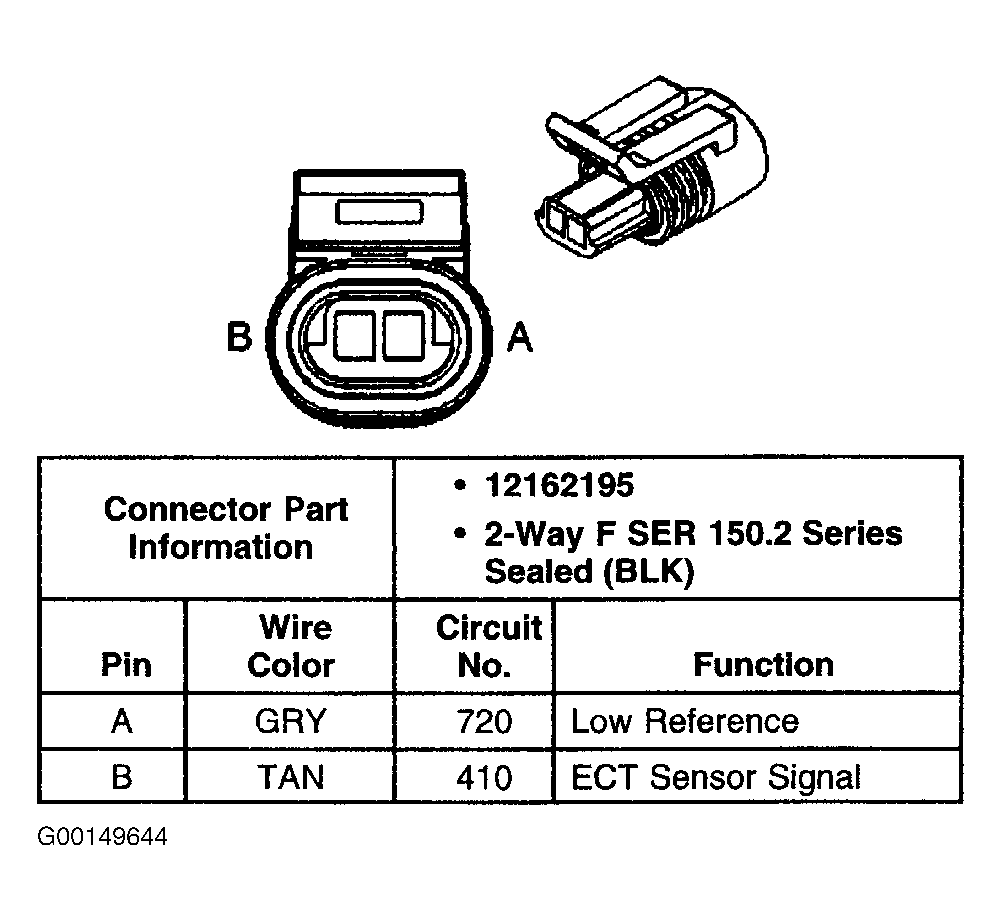

Fig 1: ECT Sensor Connector End View
G00149644Courtesy of GENERAL MOTORS CORP.

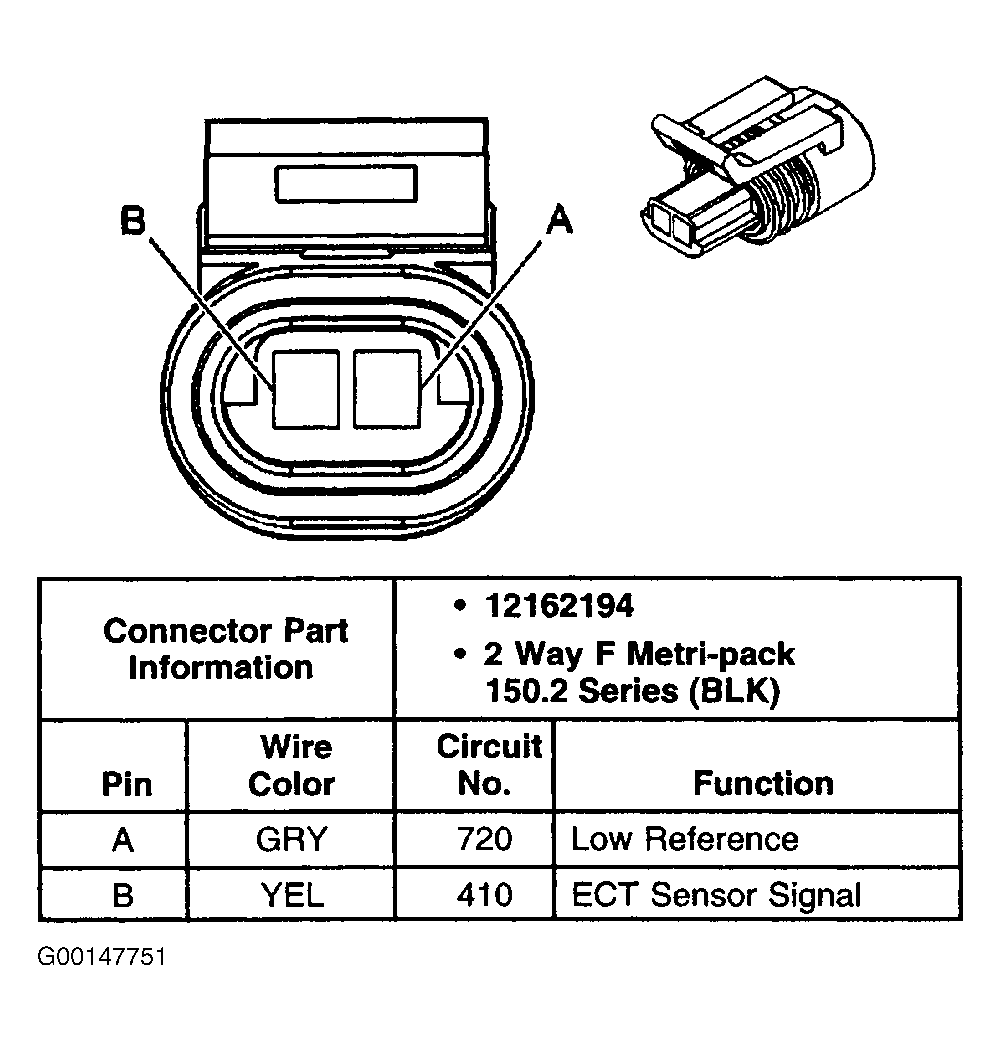

Fig 1: ECT Sensor Connector End View
G00147751Courtesy of GENERAL MOTORS CORP.
