Data Link Connector End View

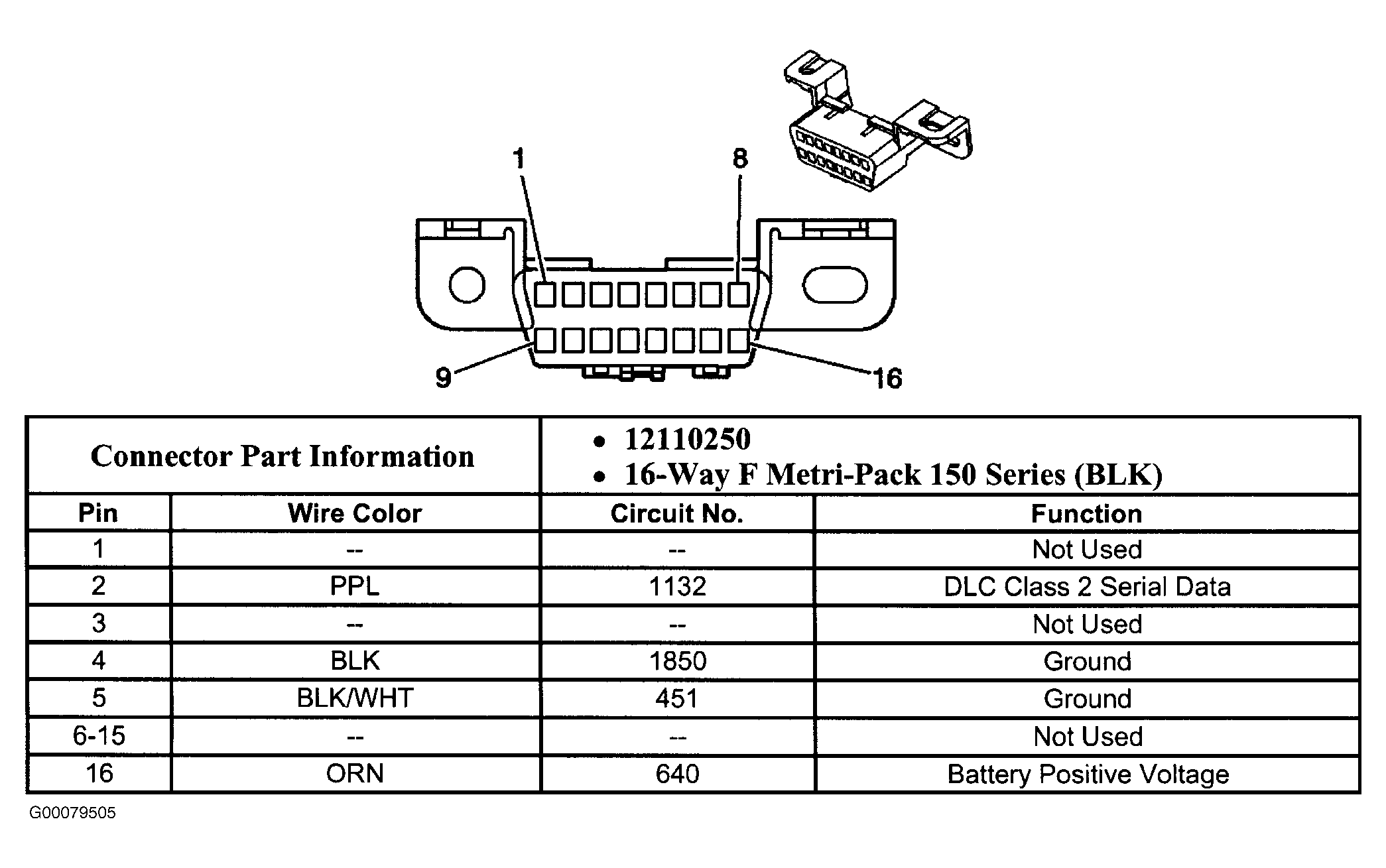

Fig 1: Data Link Connector End View
G00079505Courtesy of GENERAL MOTORS CORP.


Fig 1: Data Link Connector End View
G00148144Courtesy of GENERAL MOTORS CORP.

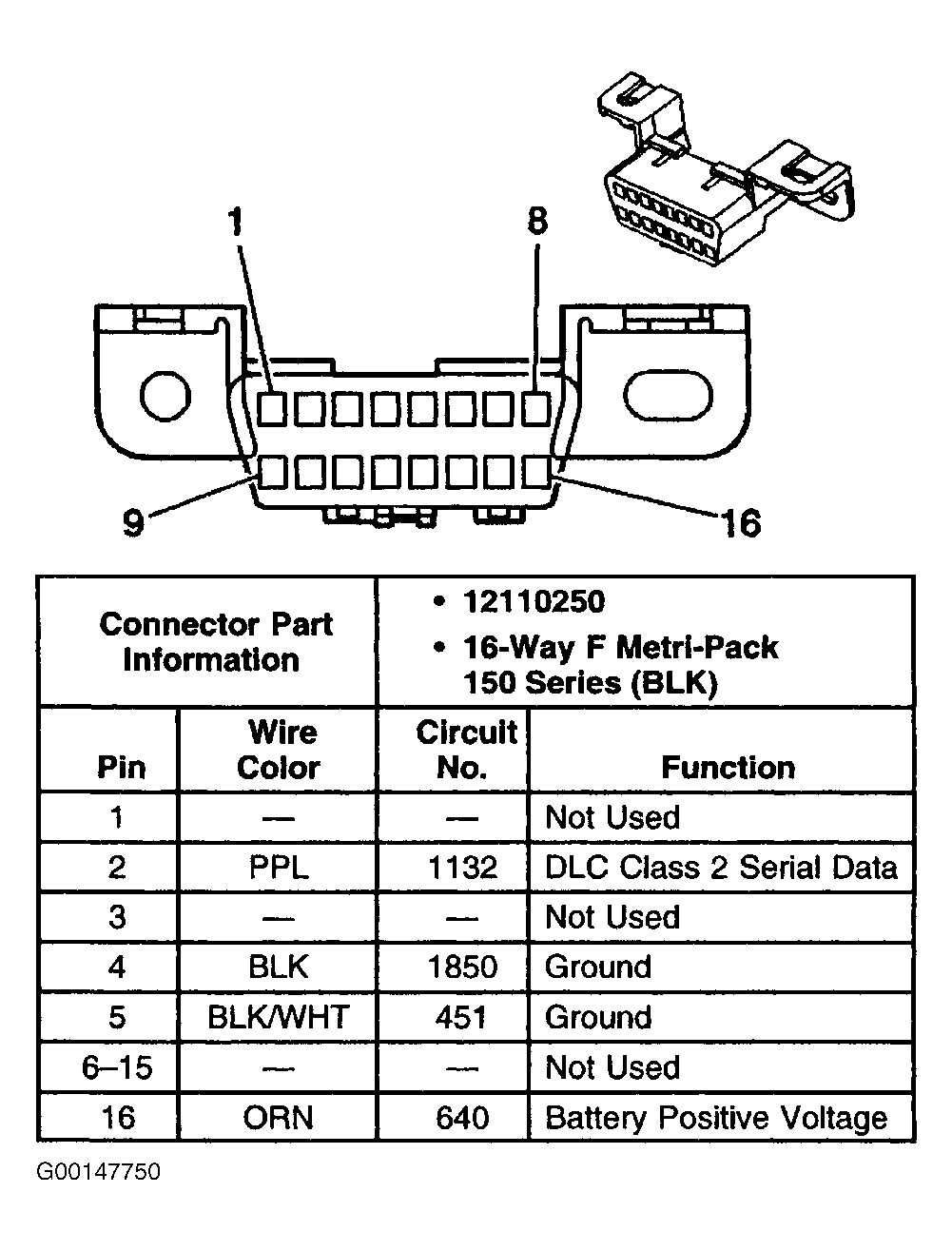

Fig 1: Data Link Connector End View
G00147750Courtesy of GENERAL MOTORS CORP.
