CMP Sensor Connector End View

Fig 1: CMP Sensor Connector End View
G00113358Courtesy of GENERAL MOTORS CORP.


Fig 1: CMP Sensor Connector End View
G00113358Courtesy of GENERAL MOTORS CORP.


Fig 1: CMP Sensor Connector End View
G00148142Courtesy of GENERAL MOTORS CORP.


Fig 1: CMP Sensor Connector End View
G00148142Courtesy of GENERAL MOTORS CORP.

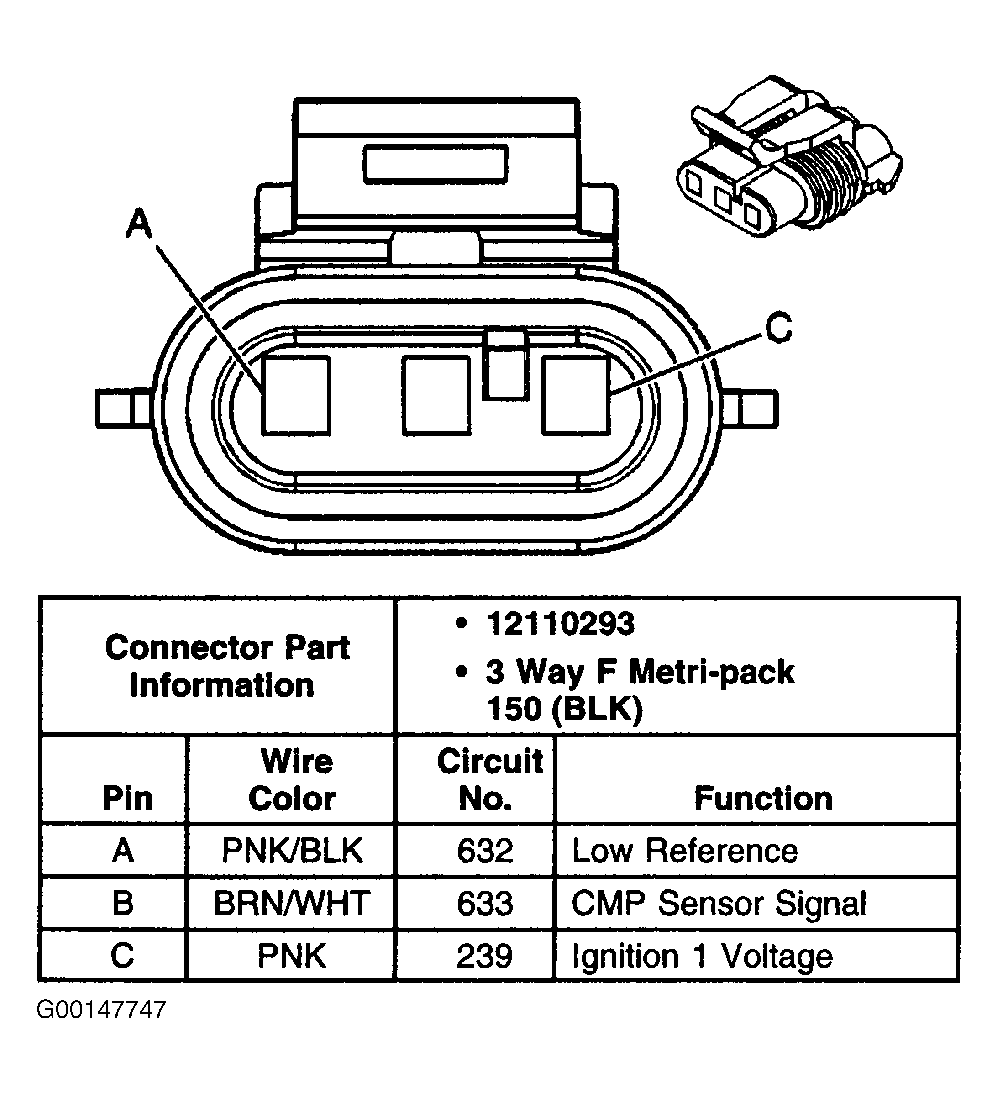

Fig 1: CMP Sensor Connector End View
G00147747Courtesy of GENERAL MOTORS CORP.
