Alternative Fuels Engine Control Module Connector C006 Terminals

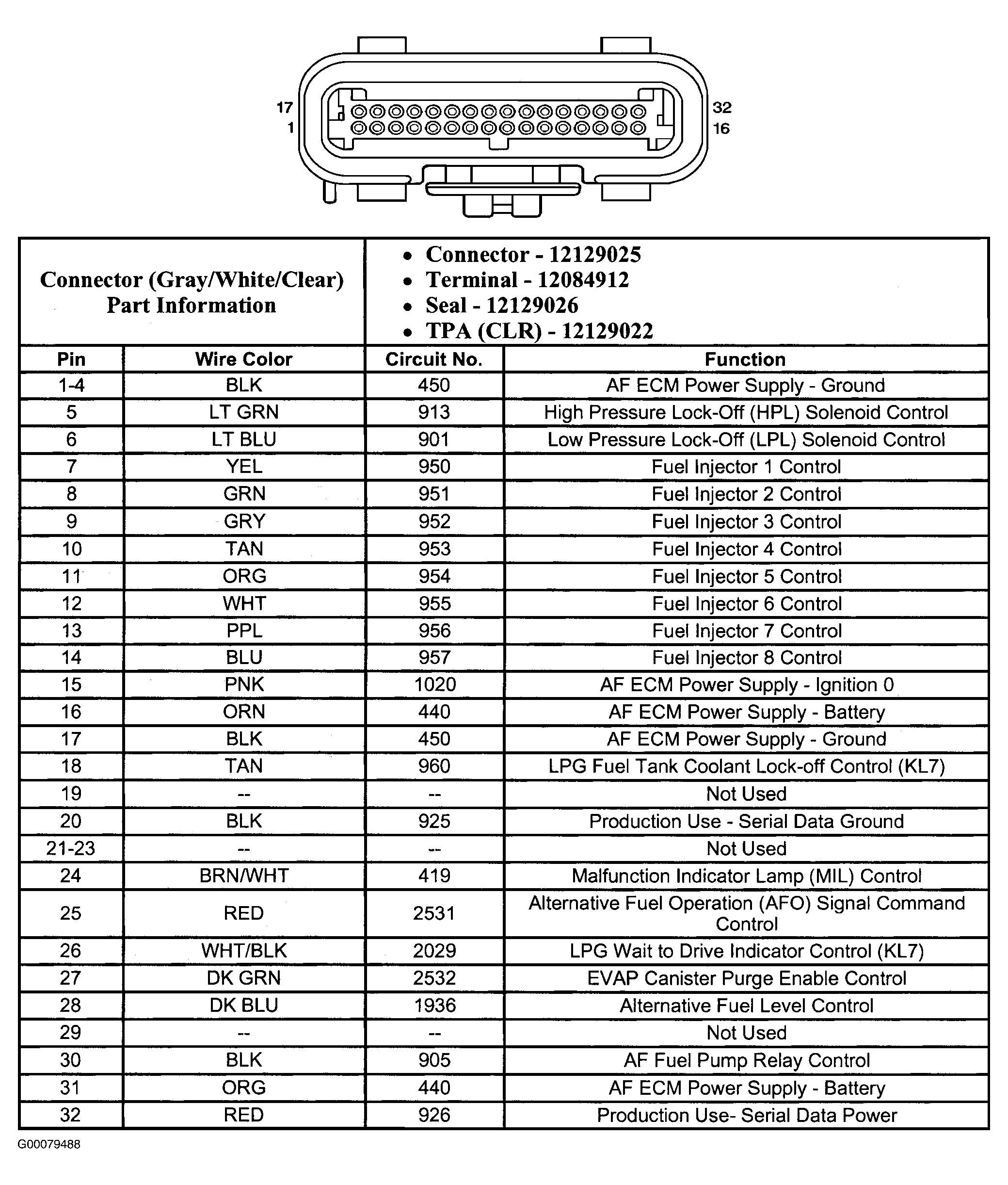

Fig 1: Alternative Fuels Engine Control Module Connector C006 Terminals

G00079488

Courtesy of GENERAL MOTORS CORP.
