Stationary Windows Connector End Views

Fig 1: Identifying Ambient Air Temperature Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

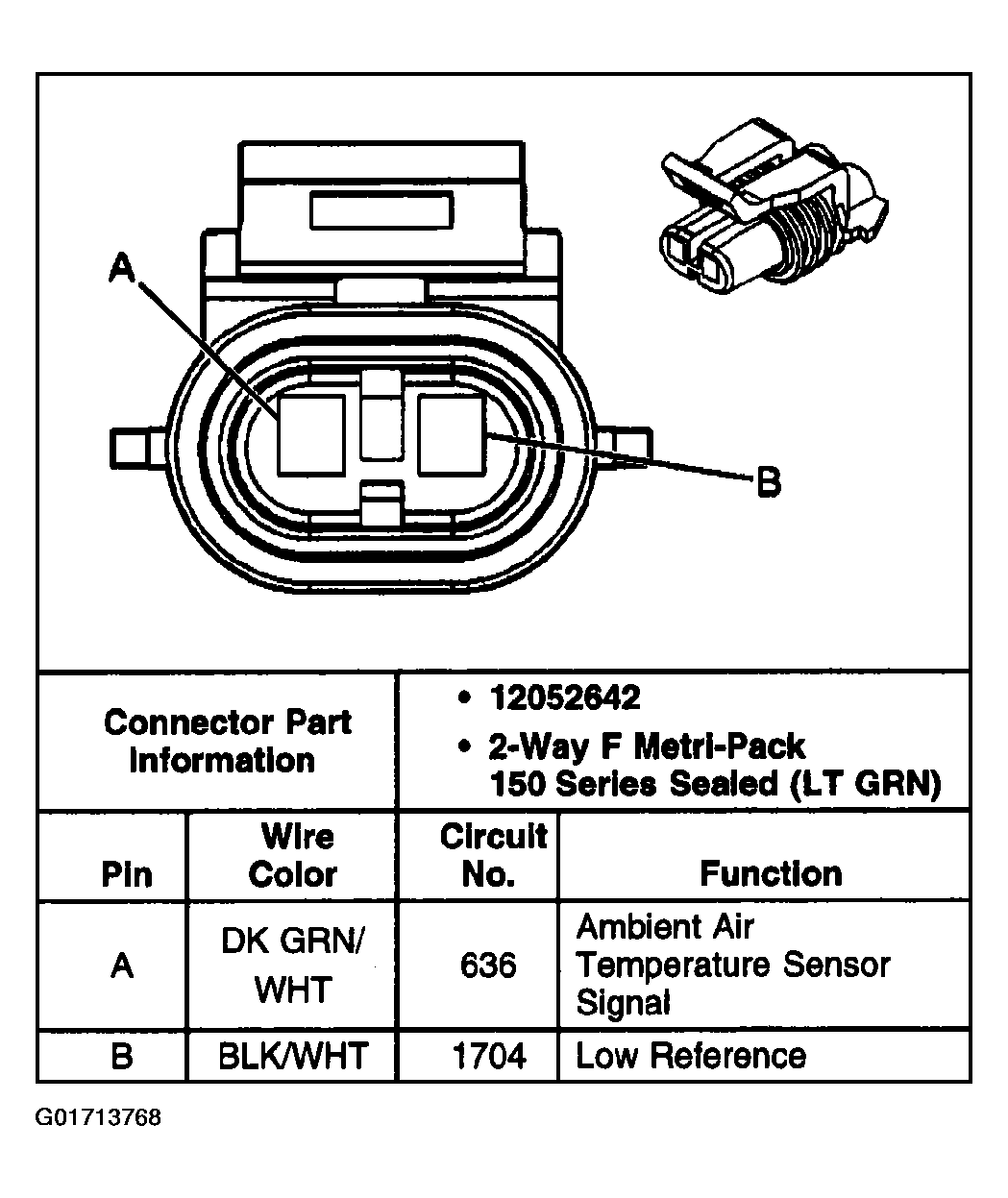

Fig 2: Identifying Inside Rearview Mirror - w/Electrochromic, Compass, Outside Temp & OnStar® Connector Terminals

Courtesy of GENERAL MOTORS CORP.

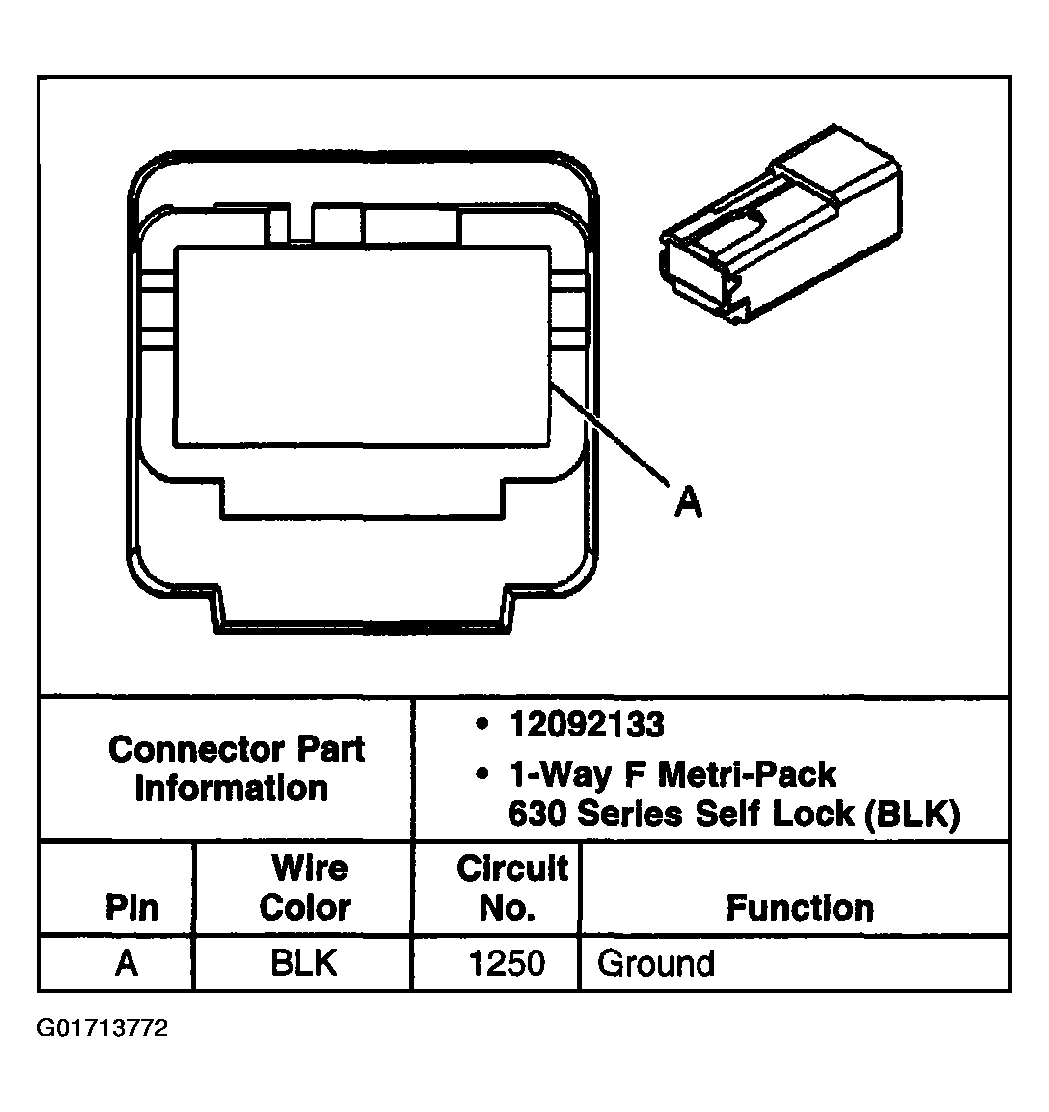

Fig 3: Identifying Inside Rearview Mirror - w/Electrochromic, Compass & Outside Temp Connector Terminals

Courtesy of GENERAL MOTORS CORP.

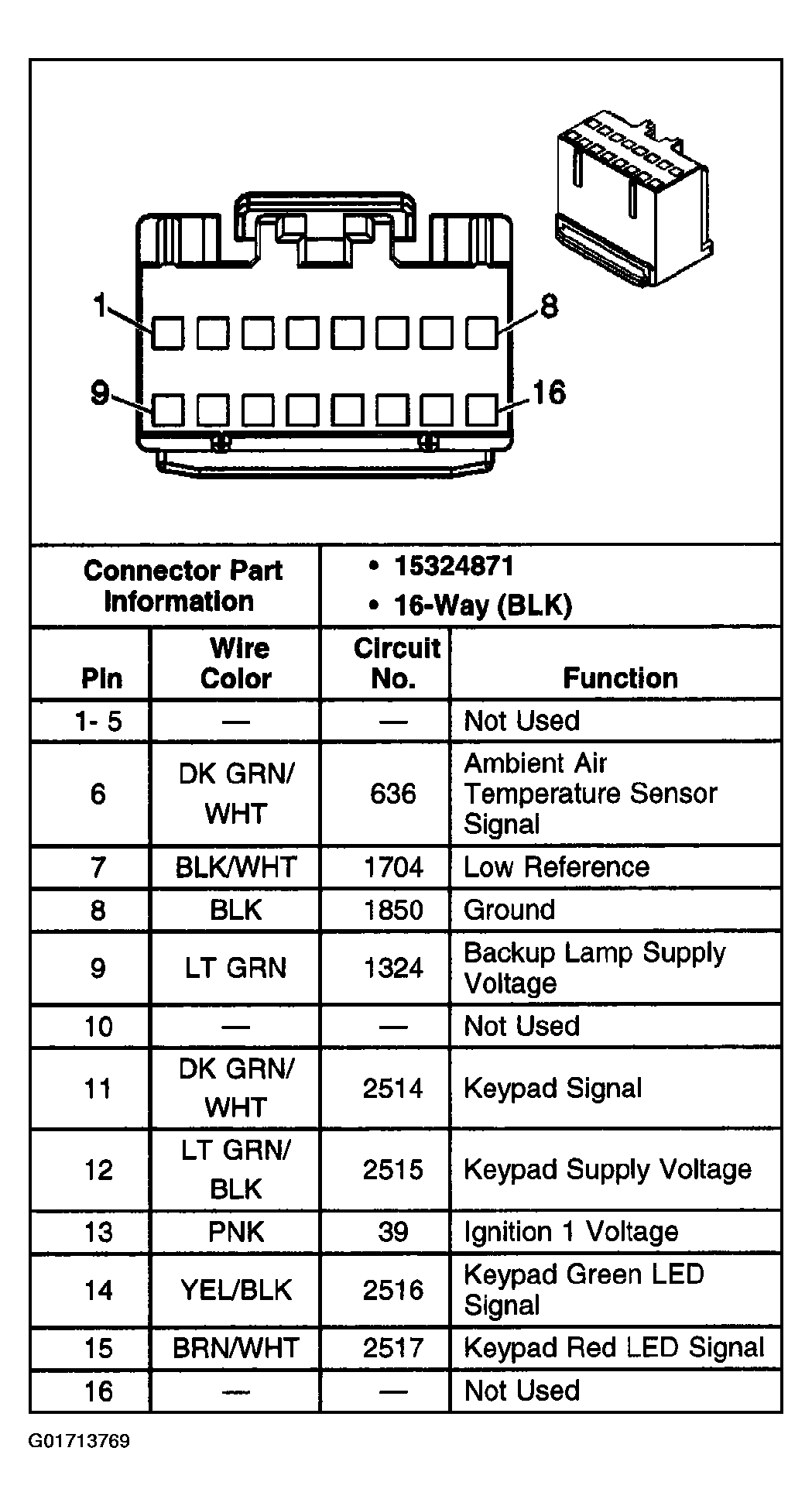

Fig 4: Identifying Rear Window Defogger Grid - C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

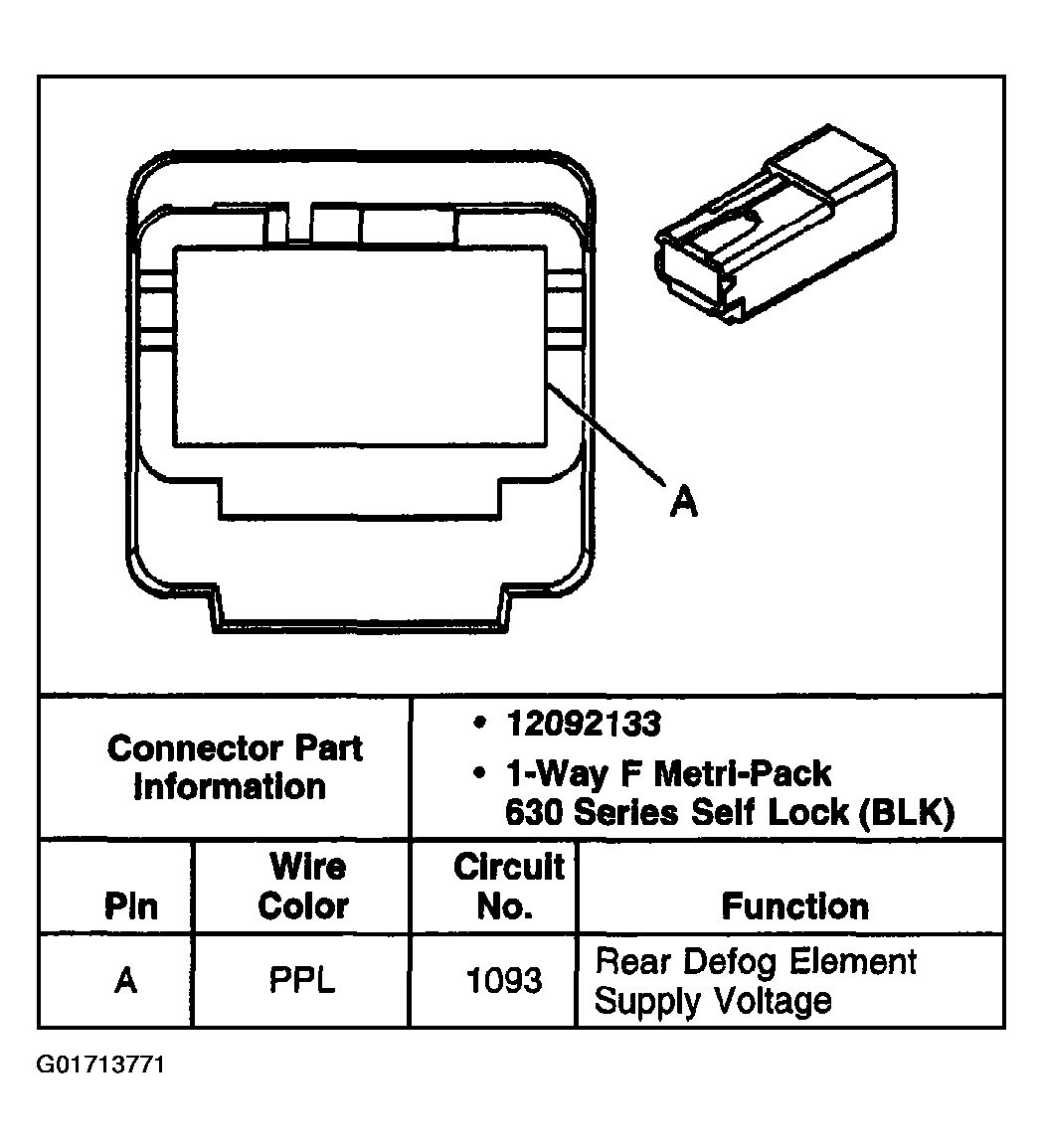

Fig 5: Identifying Rear Window Defogger Grid - C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
