Home >> GMC >> 2002 >> Sierra 1500 HD, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Window Handle Replacement >> Removal Procedure

Removal Procedure

  1. Open the door.
  2. Remove the window crank handle using the J 9886-01  . Be sure to retain the retainer clip on the back side of the handle.

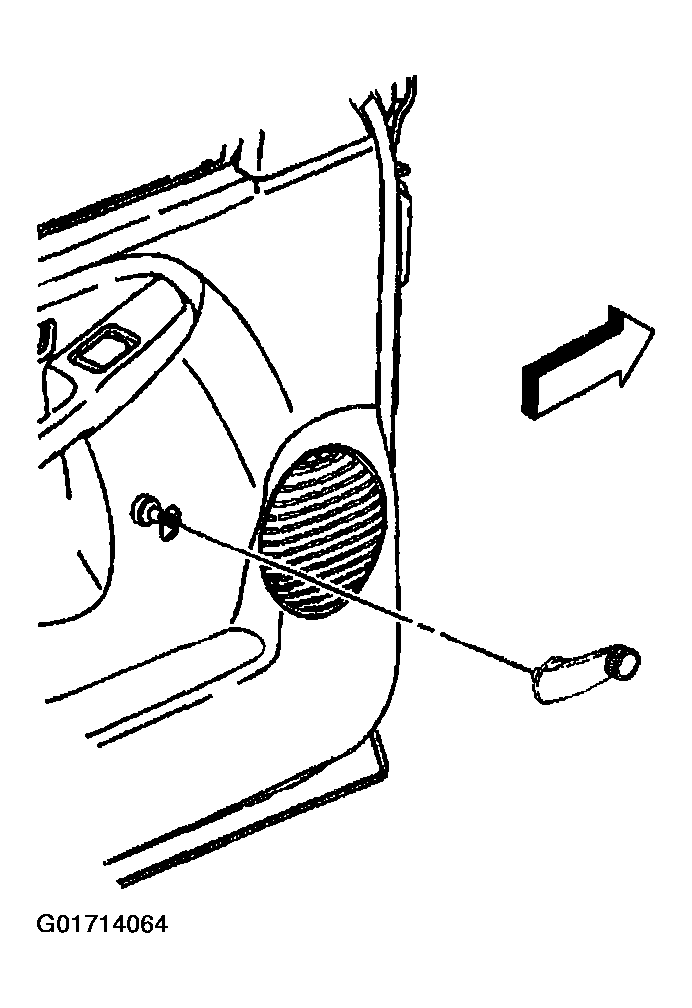

    Fig 1: Window Crank Handle Replacement
    G01714064Courtesy of GENERAL MOTORS CORP.
