Removal Procedure

  1. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  2. Disconnect the power window switch electrical connector.
  3. Remove the screws from the window switch.
  4. Remove the switch from the switch panel by lifting the rear of the switch and sliding the switch out from the switch panel.

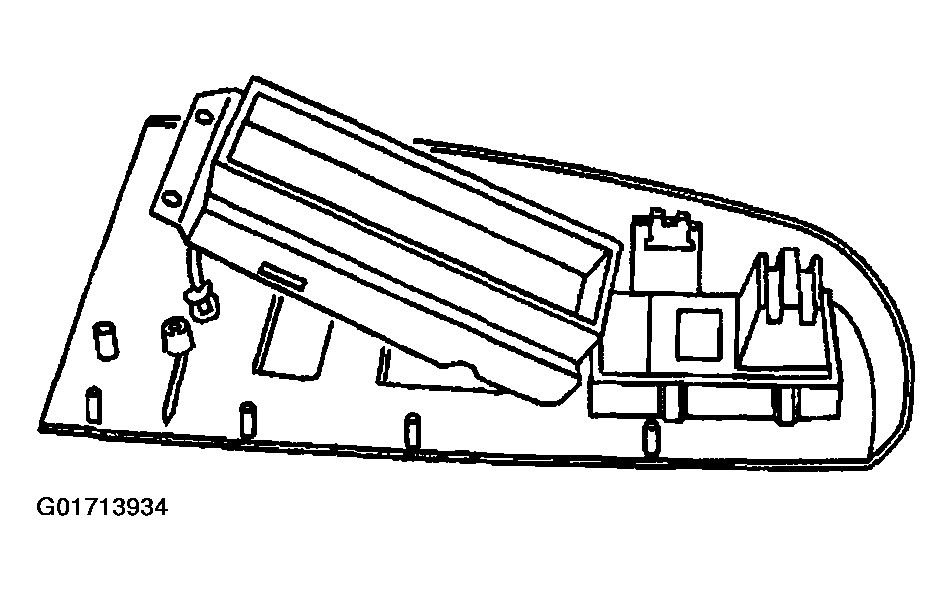

    Fig 1: Removing Switch From Switch Panel
    G01713934Courtesy of GENERAL MOTORS CORP.
