Removal Procedure

  1. Insert a flat-bladed tool into the slots on the power accessory switch panel in order to release the retainer clips.
  2. Remove the switch panel.
  3. Disconnect the electrical connectors from the switches.
  4. Remove the screws from the switches.
  5. Remove the power accessory switches from the switch panel.

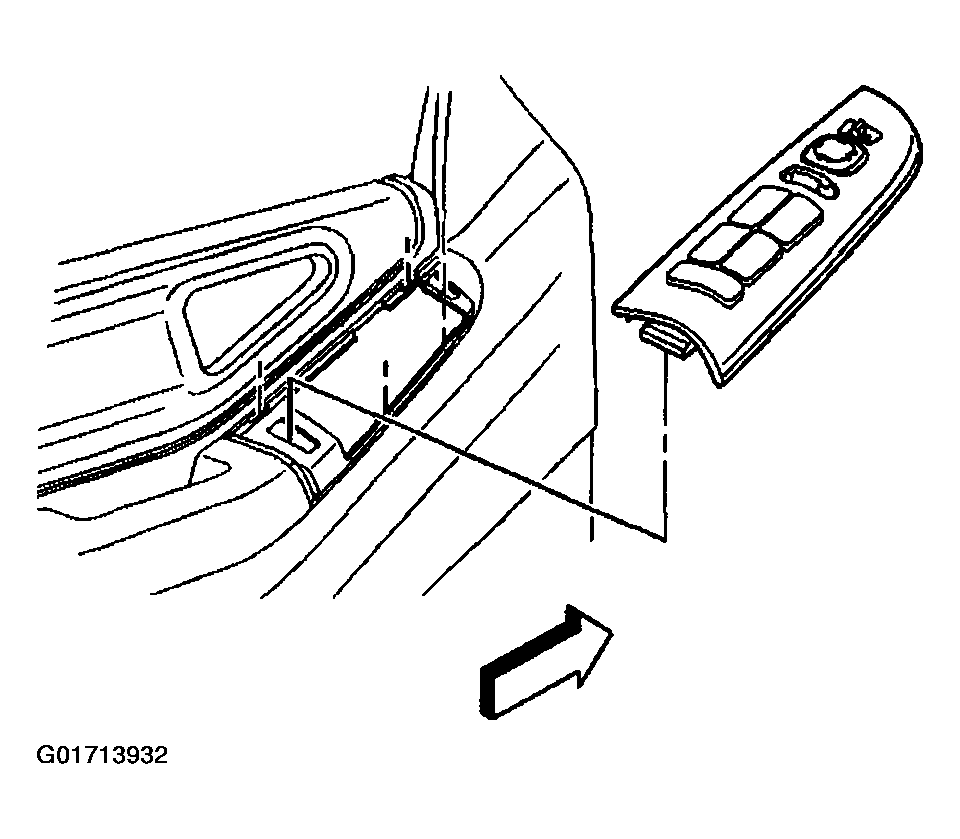

    Fig 1: Power Accessory Switch Panel
    G01713932Courtesy of GENERAL MOTORS CORP.
