ABS Component Views

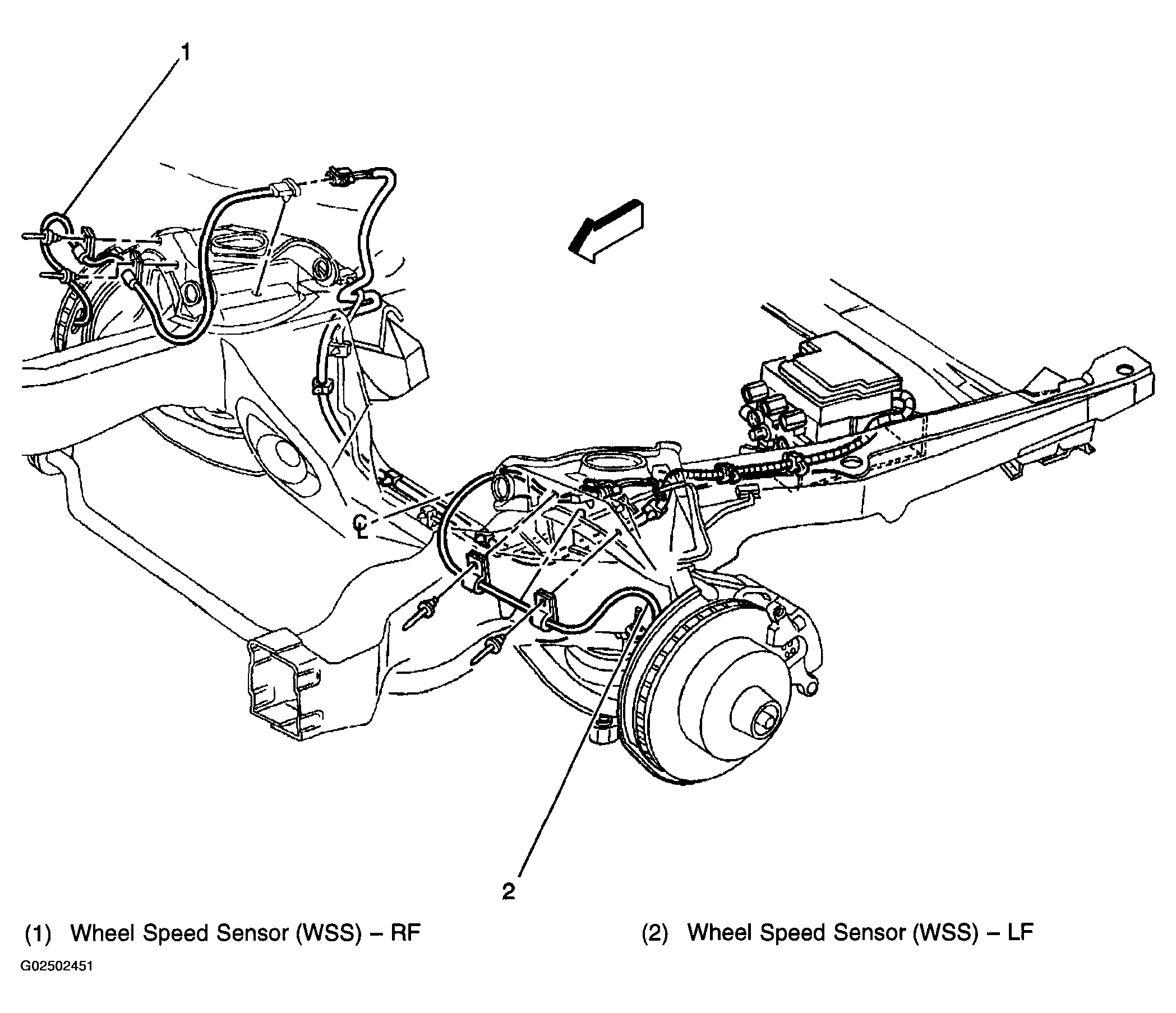

Fig 1: Locating ABS Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

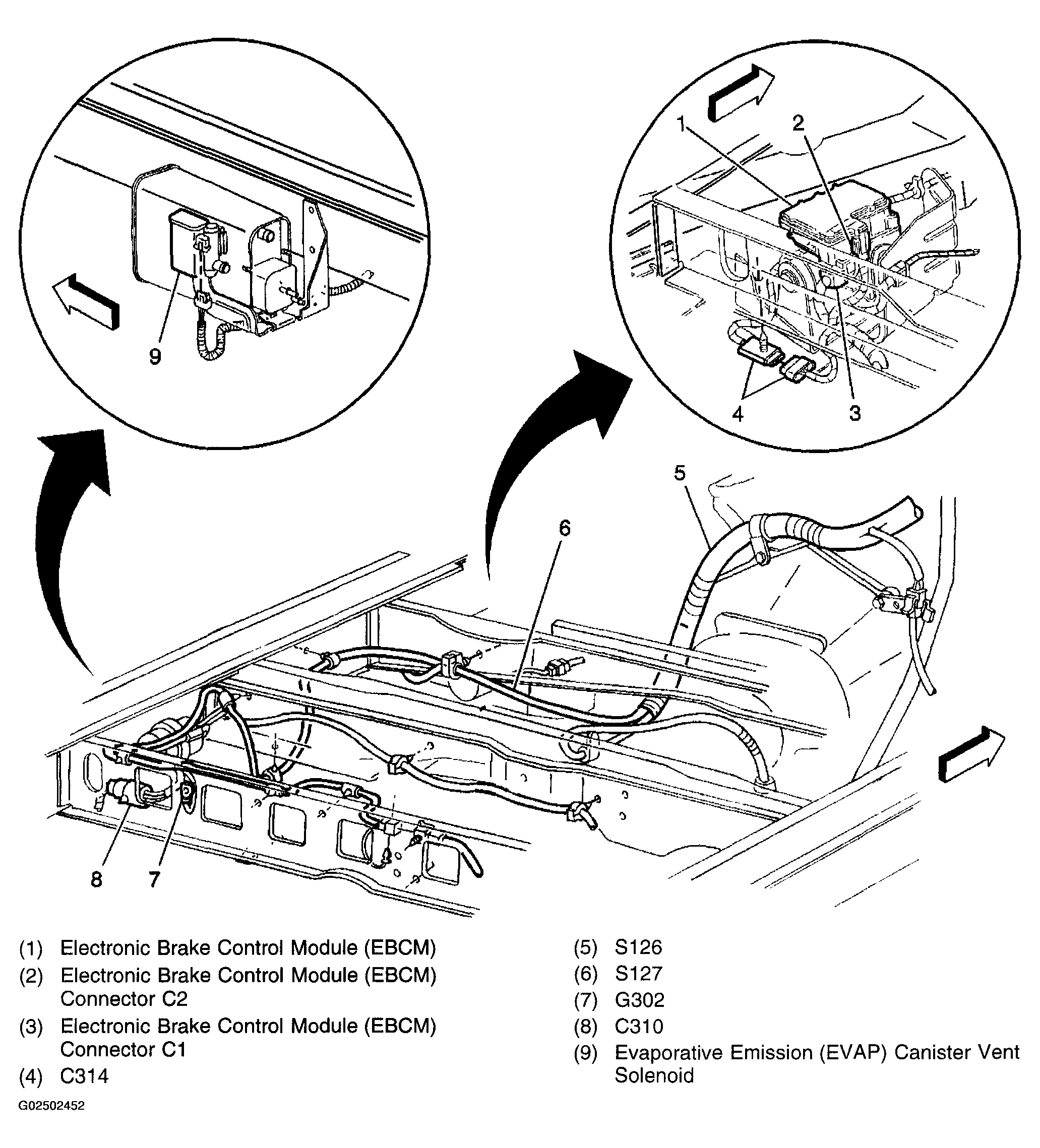

Fig 2: Locating EBCM
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
