Installation Procedure

  1. Slide the clip of the channel into the upper channel in order to install the window run channel to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the door to window run channel bolt. Tighten:  Tighten the door to window run channel bolt to 9.5 N.m (84 lb in).

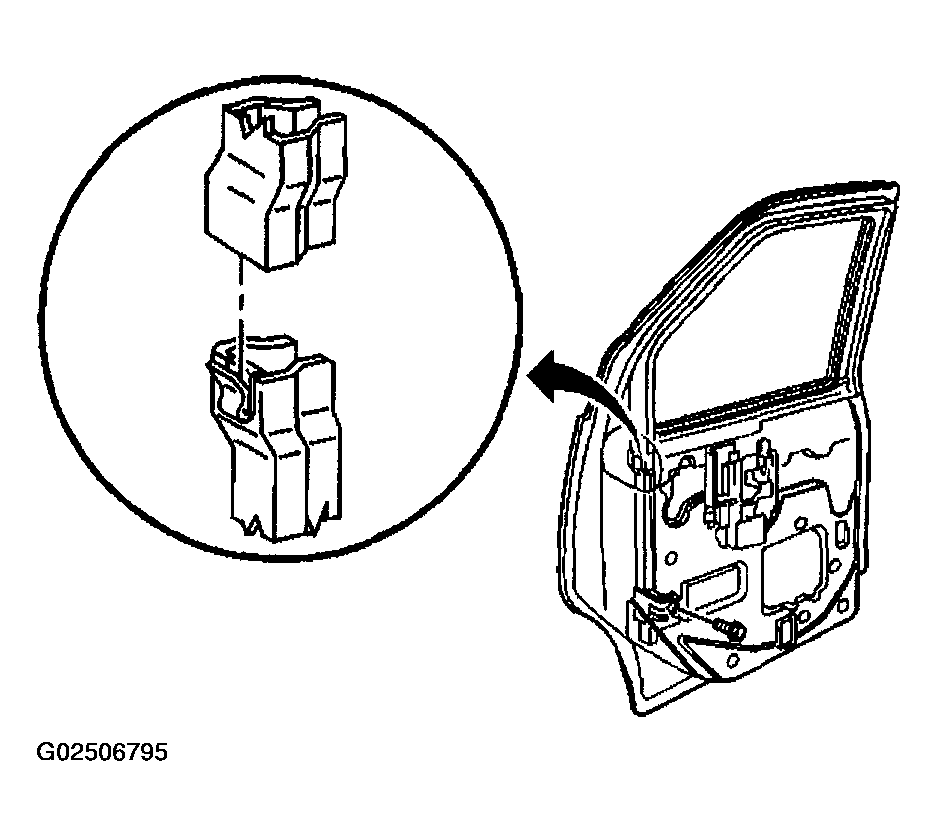

    Fig 1: Removing & Installing Window Run Channel
    G02506795Courtesy of GENERAL MOTORS CORP.
  3. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR  .
