Removal Procedure

  1. Remove the cover from the rear seat shoulder belt.
  2. Remove the bolt retaining the rear seat shoulder belt to the bracket.
  3. Remove the rear seat shoulder belt bracket cover.
  4. Remove the nut retaining the rear seat shoulder belt bracket to the reinforcement.

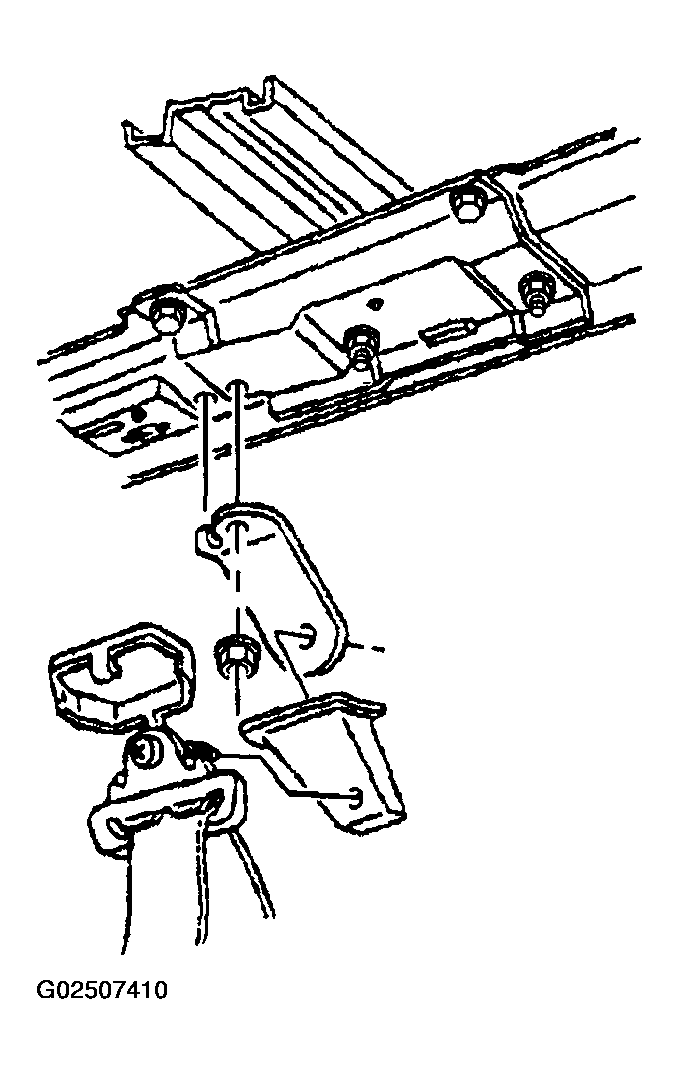

    Fig 1: Removing Right Rear Seat Shoulder Belt Retaining Bolt
    G02507410Courtesy of GENERAL MOTORS CORP.
  5. Remove the headliner.
  6. Remove the nuts retaining the rear seat shoulder belt reinforcement to the roof.
  7. Remove the bolts retaining the rear seat shoulder belt reinforcement to the roof.
  8. Remove the rear seat shoulder belt reinforcement from the roof.

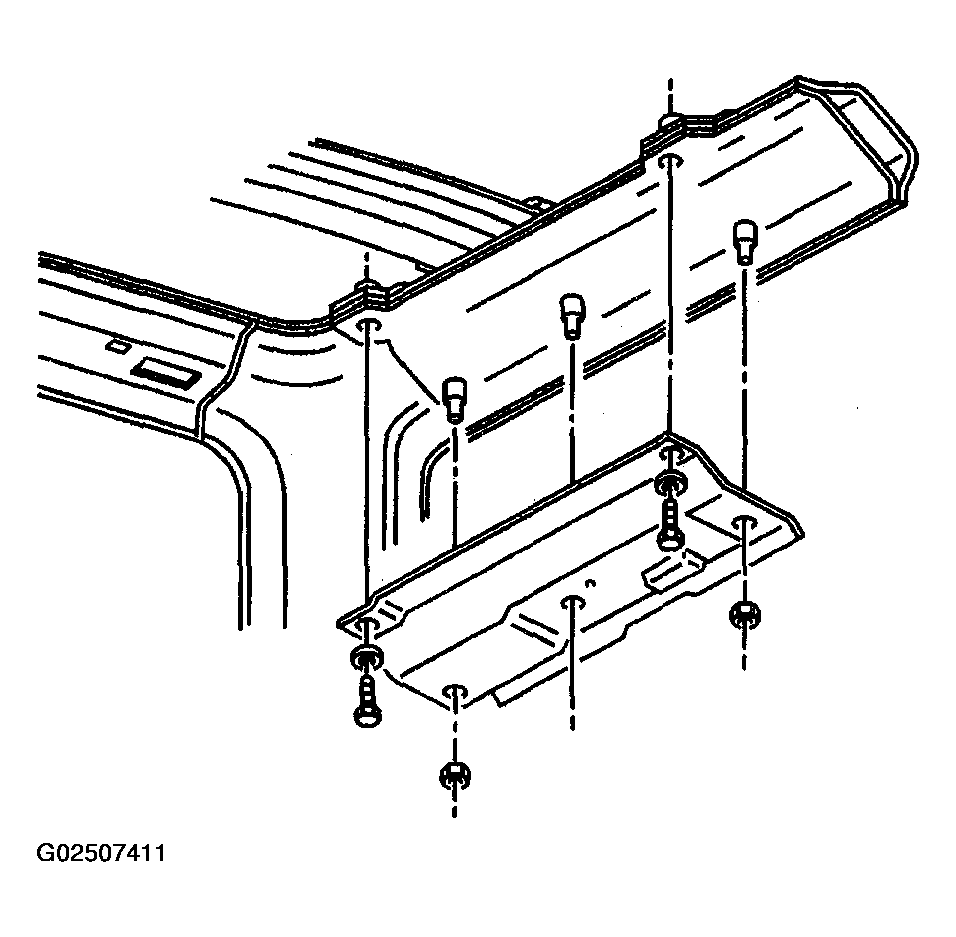

    Fig 2: Removing Rear Seat Shoulder Belt Reinforcement
    G02507411Courtesy of GENERAL MOTORS CORP.
