Horns Connector End Views

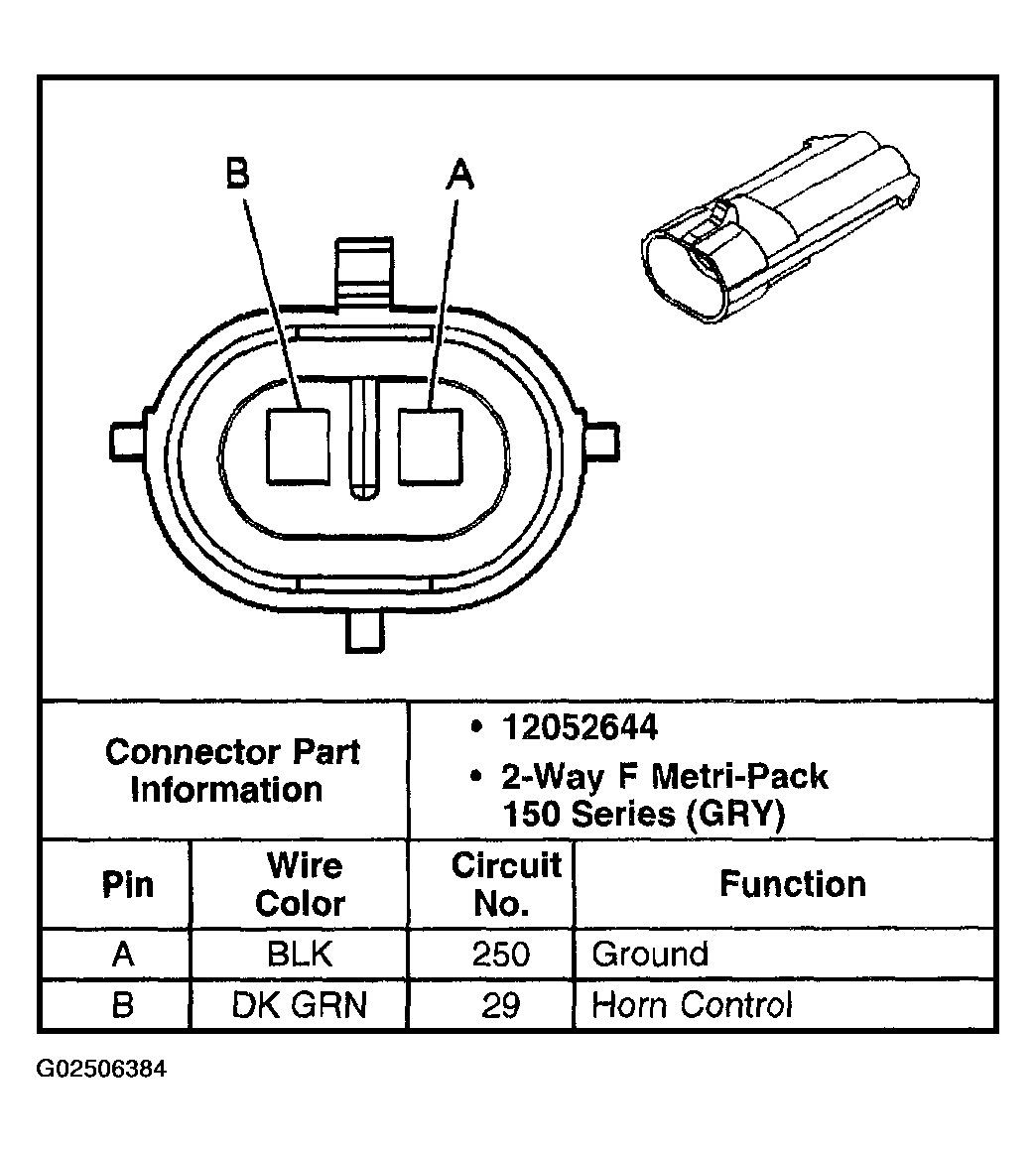

Fig 1: Identifying Horn Connector End View - Left

G02506384

Courtesy of GENERAL MOTORS CORP.

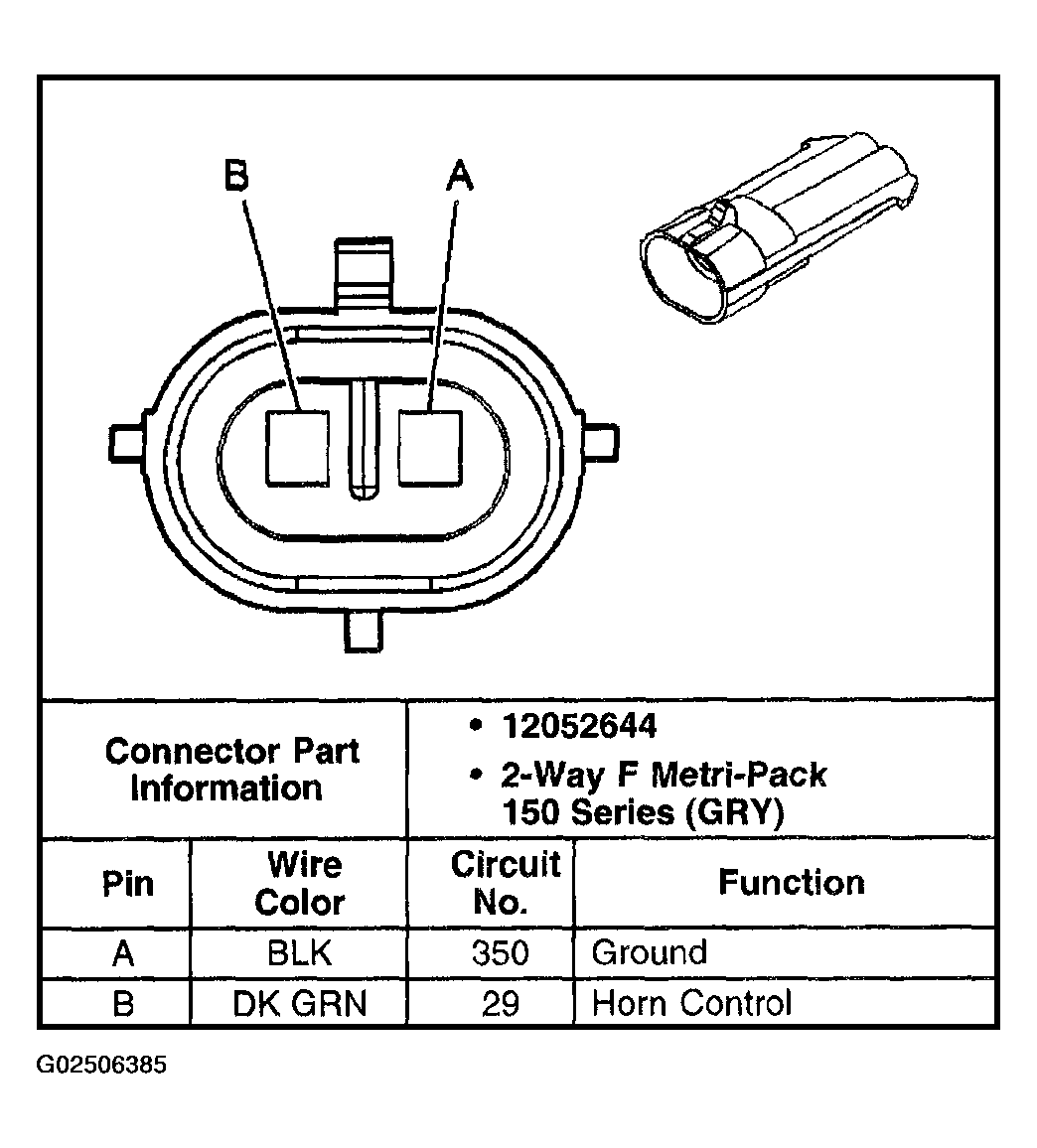

Fig 2: Identifying Horn Connector End View - Right

G02506385

Courtesy of GENERAL MOTORS CORP.
