C401 (Main Body-To-Rear Door Jamb Switch) Connector End View

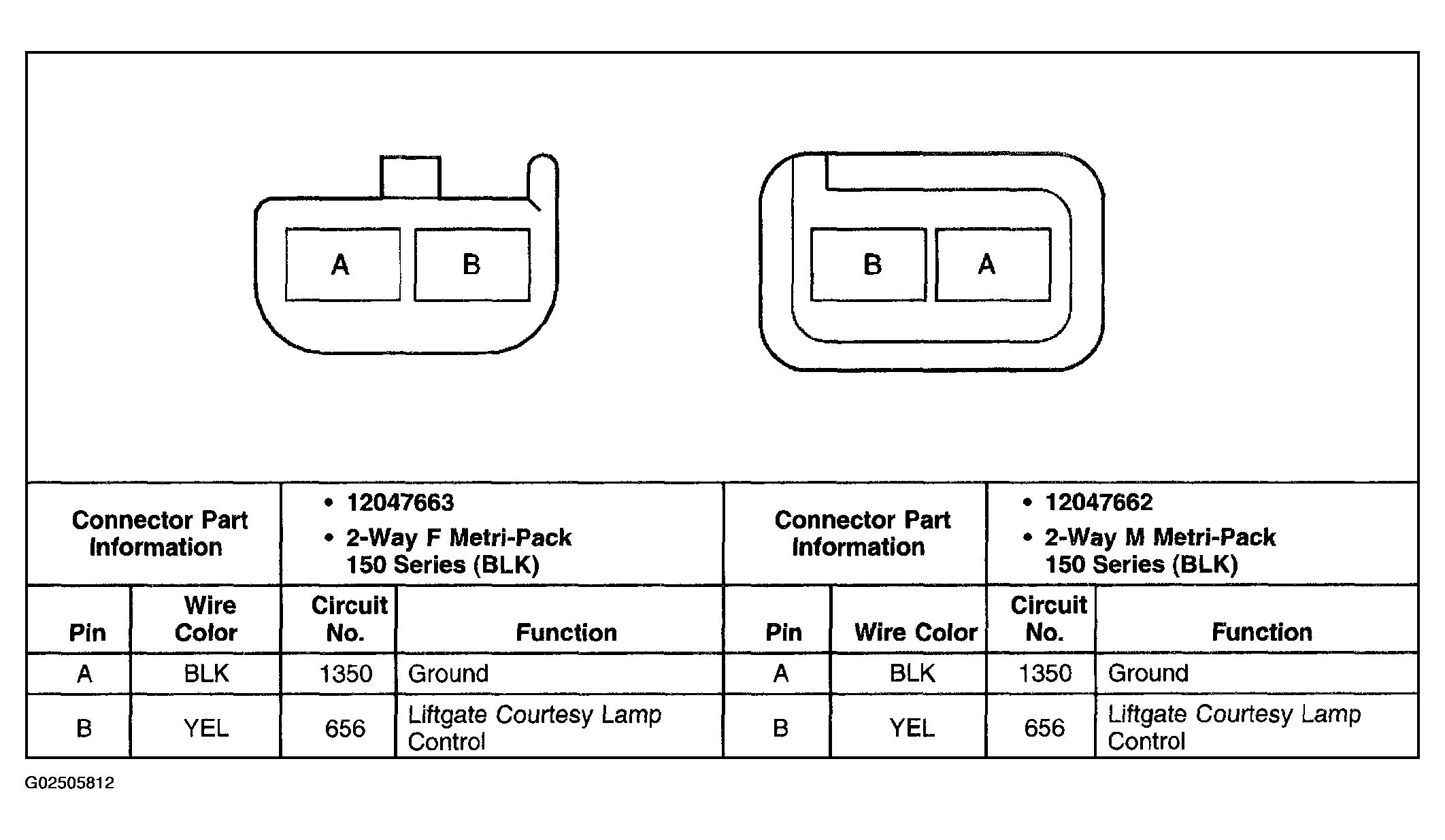

Fig 1: C401 (Main Body-To-Rear Door Jamb Switch) Connector End View

G02505812

Courtesy of GENERAL MOTORS CORP.
