Brake Pressure Differential Switch Connector End View

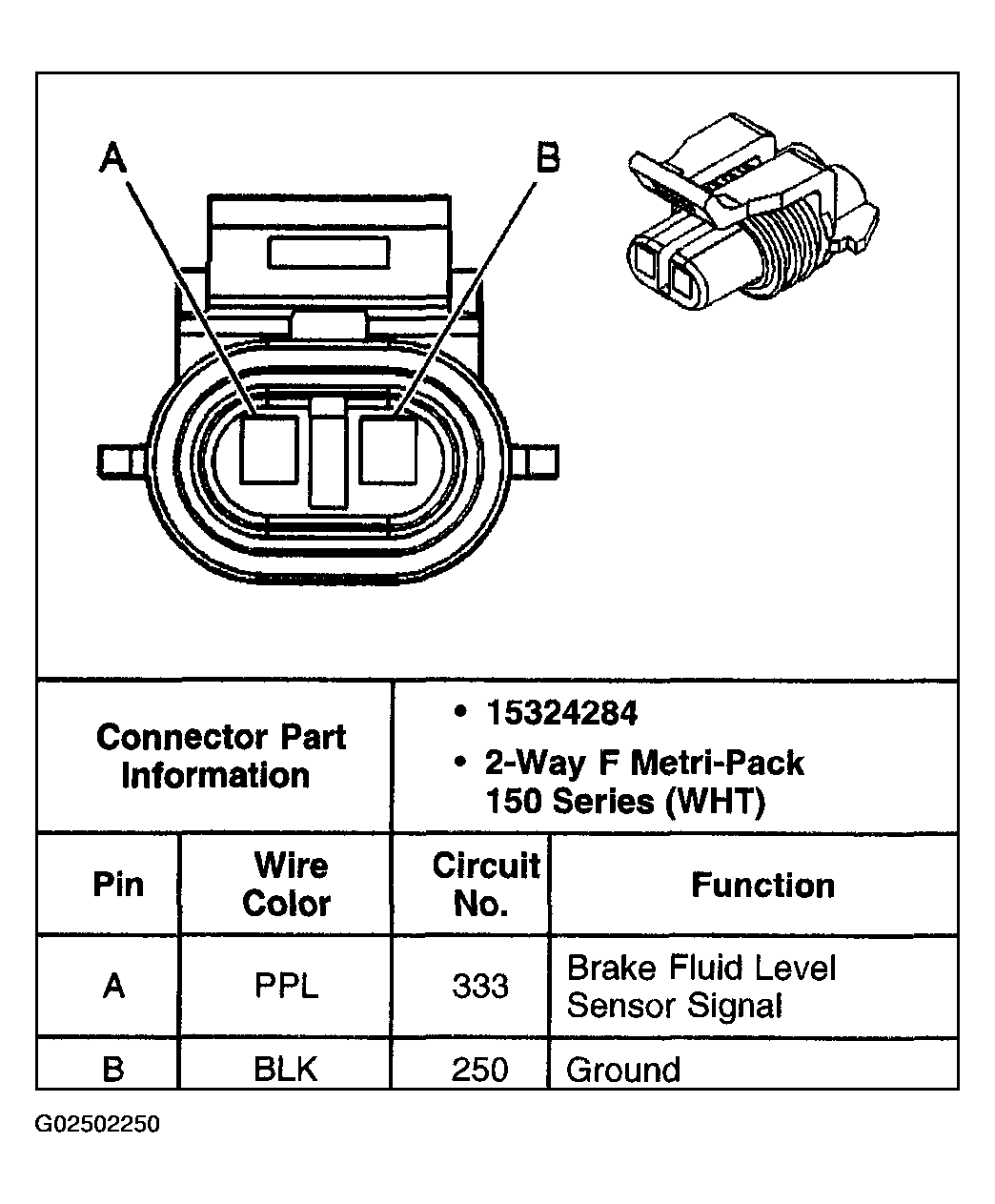

Fig 1: Brake Pressure Differential Switch Connector End View

G02502250

Courtesy of GENERAL MOTORS CORP.
