Removal Procedure

  1. Separate the J-strips from the seat bottom frame.

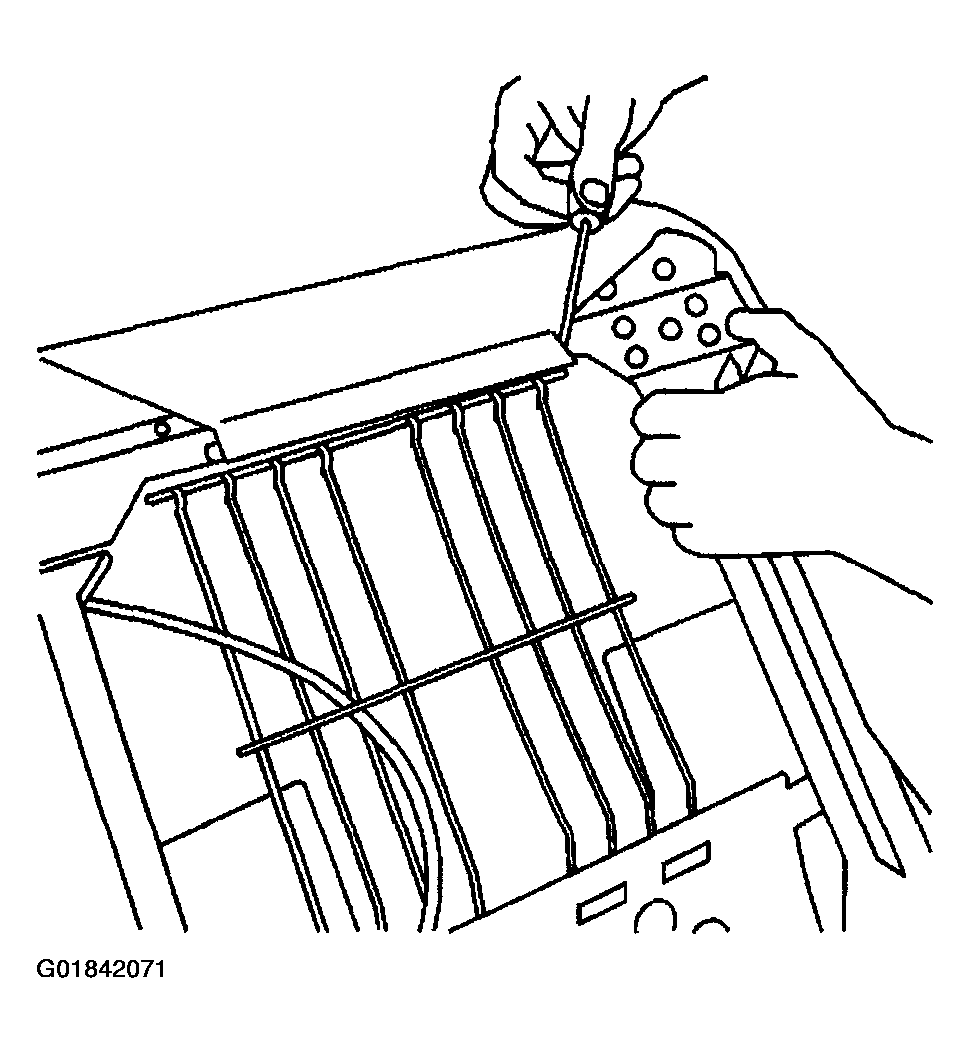

    2. Fig 1: J-Strips From Seat Bottom Frame
    G01842071Courtesy of GENERAL MOTORS CORP.
  2. Work the seat cover back to expose the tether anchor mounting bolt.
  3. Remove the tether anchor mounting bolt.
  4. Remove the tether anchor (1).

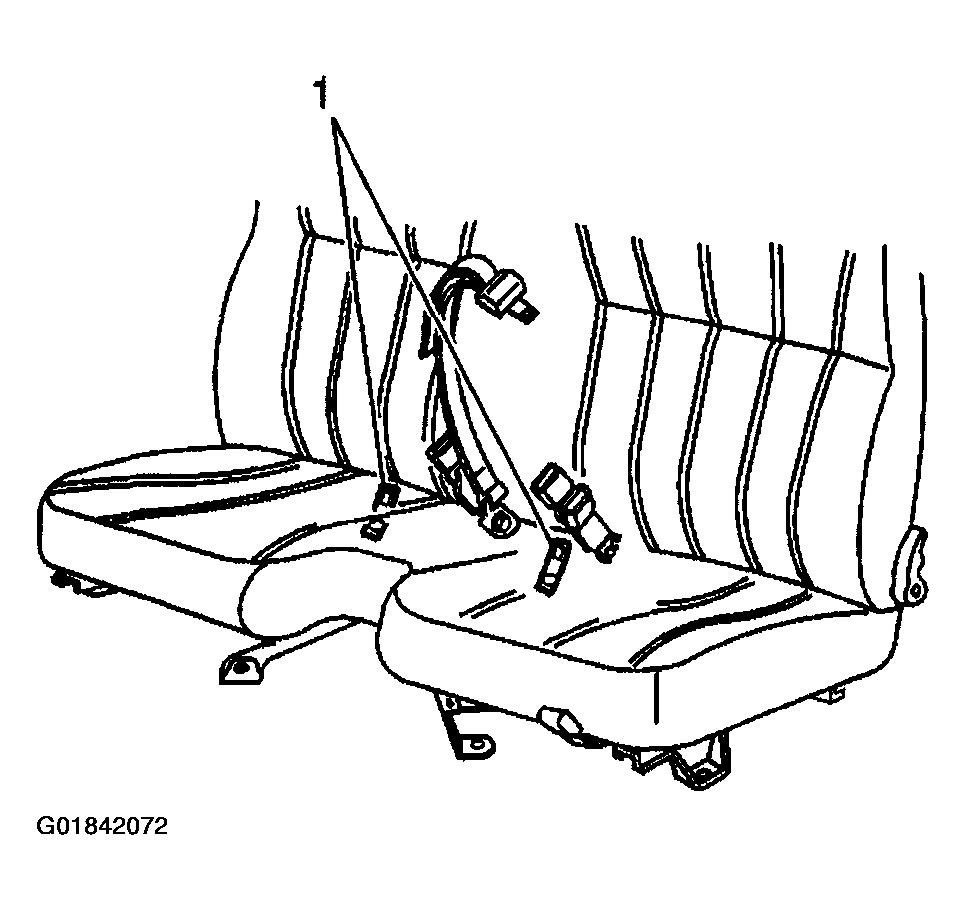

    5. Fig 2: Tether Anchor
    G01842072Courtesy of GENERAL MOTORS CORP.
