GMC
>>
2002
>>
Jimmy 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Wheel Alignment Specifications
>>
Specifications
>>
BRAVADA, Envoy & Trailblazer
BRAVADA, Envoy & Trailblazer

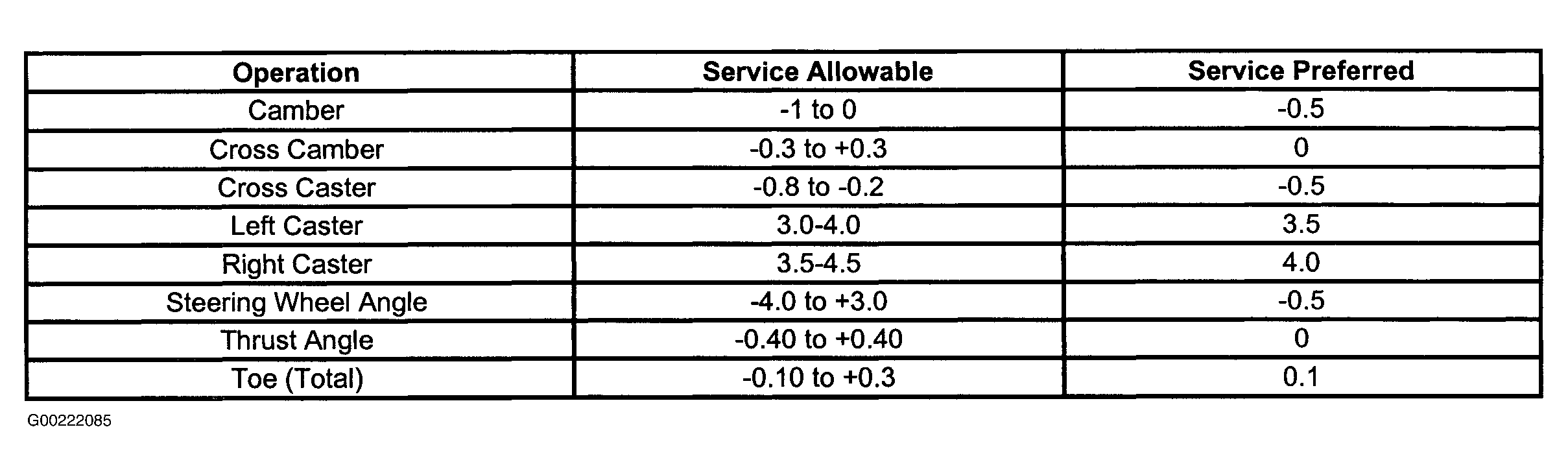

Fig 1: Wheel Alignment Specifications (Bravada, Envoy & TrailBlazer)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
